Powertrain Management: Locations
2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION

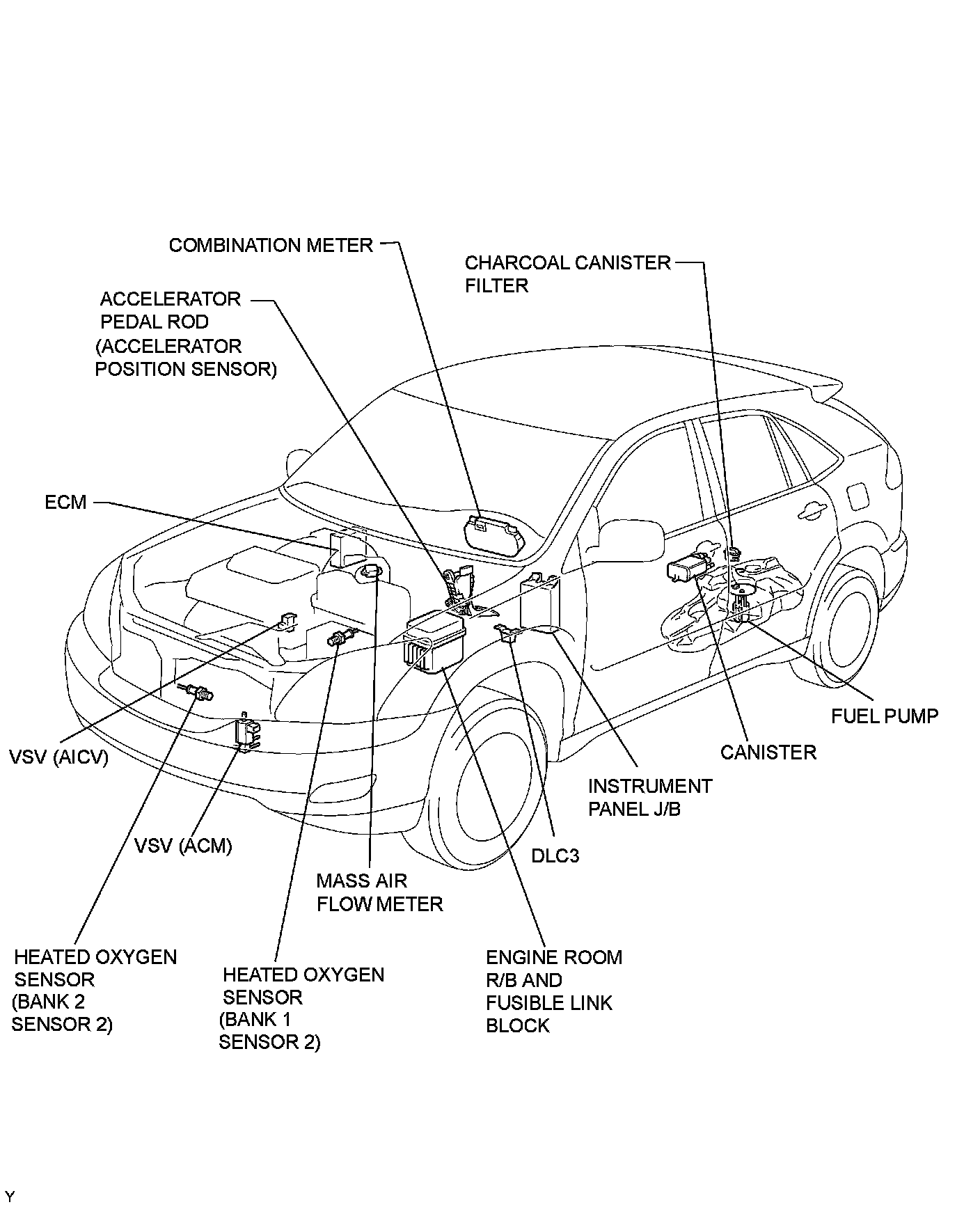

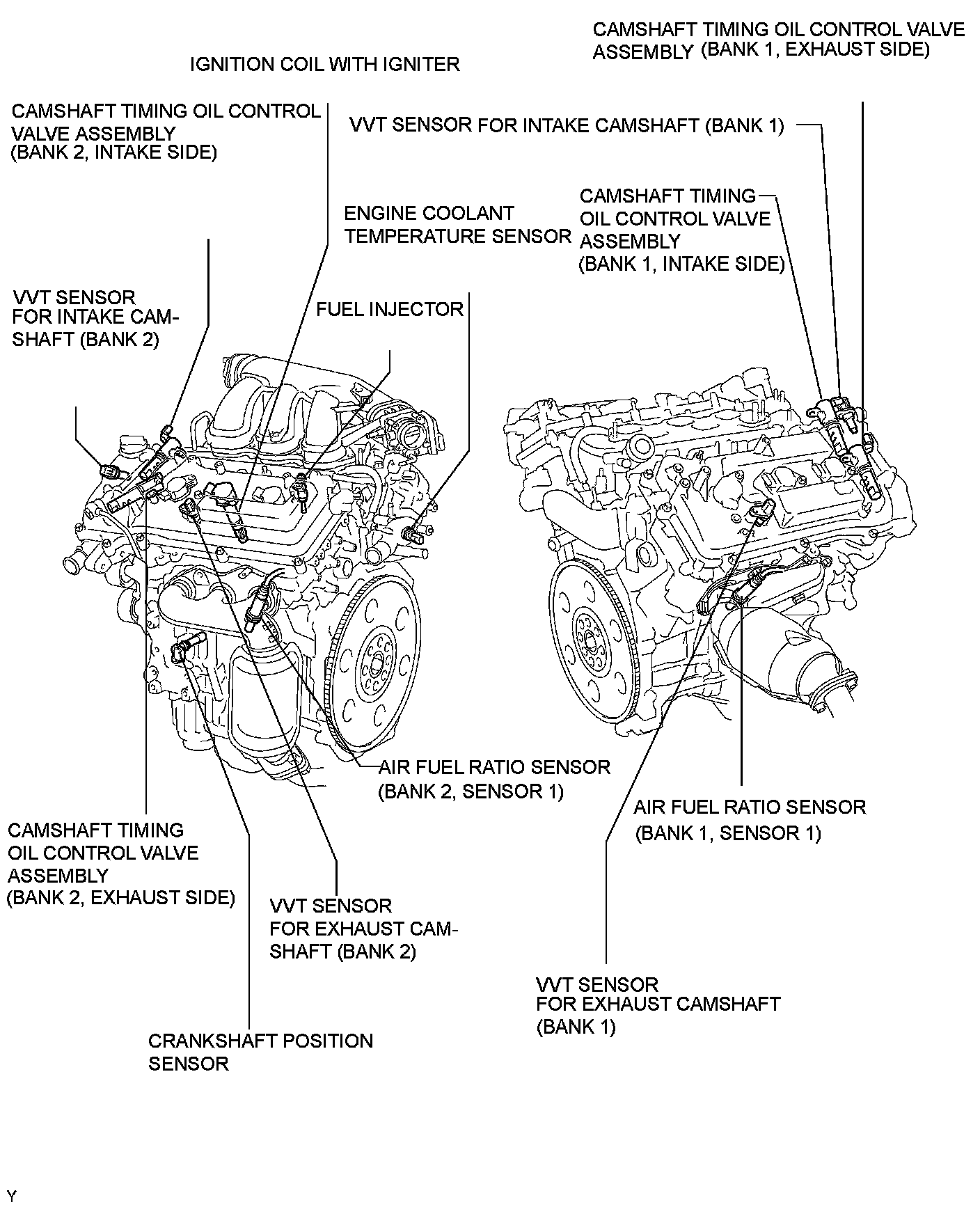

SFI System:
SFI SYSTEM: PARTS LOCATION:

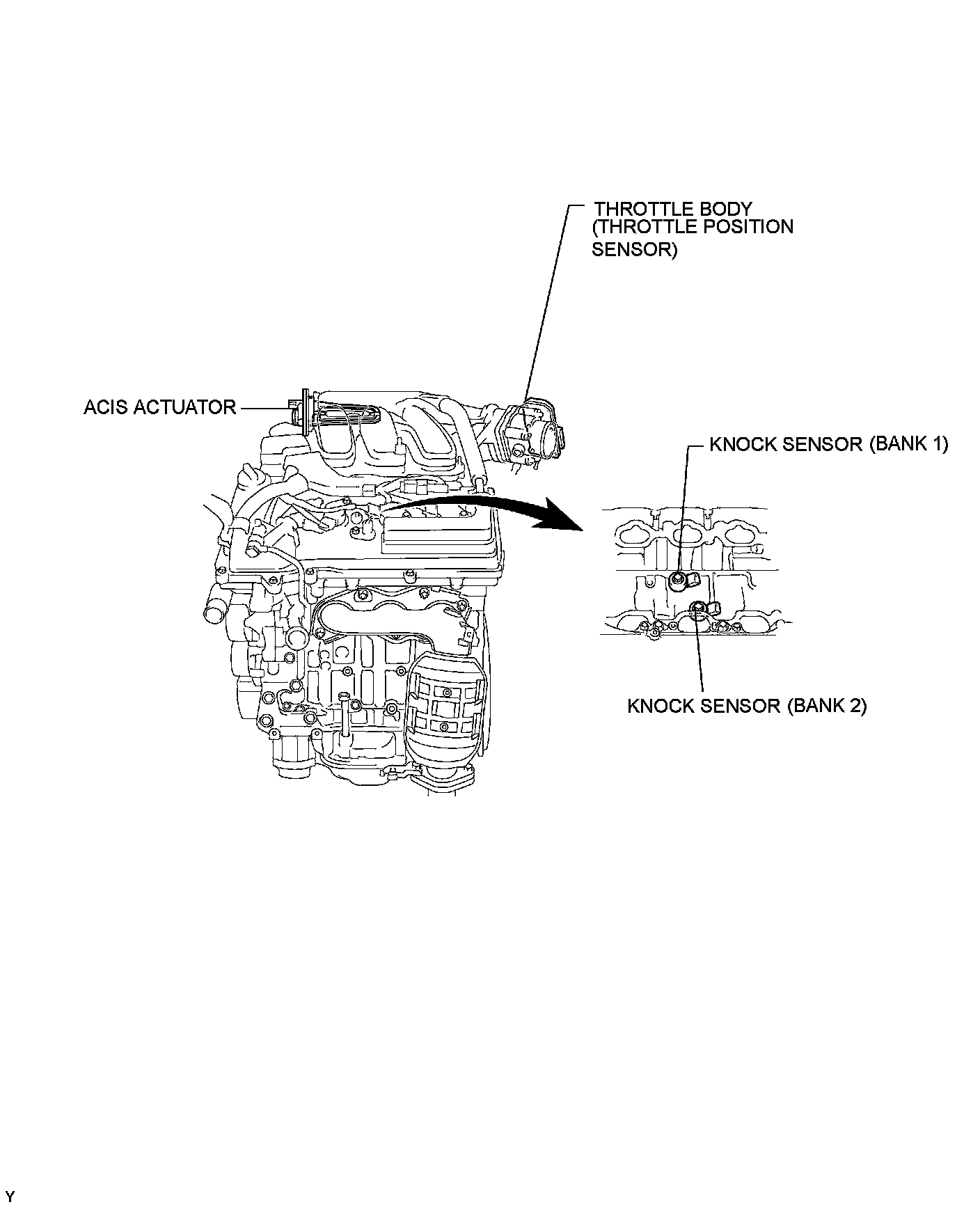

Knock Sensor:
