Cooling System








SERVICE SPECIFICATIONS: 2GR-FE COOLING: SERVICE DATA

SERVICE DATA

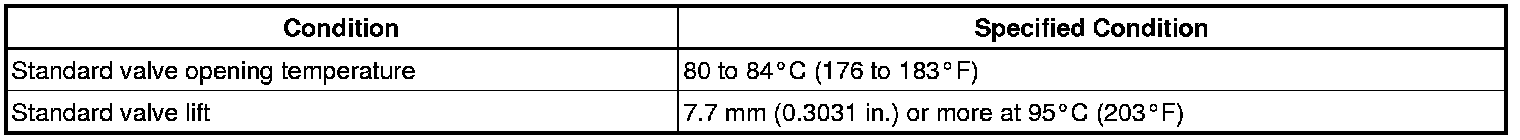

THERMOSTAT

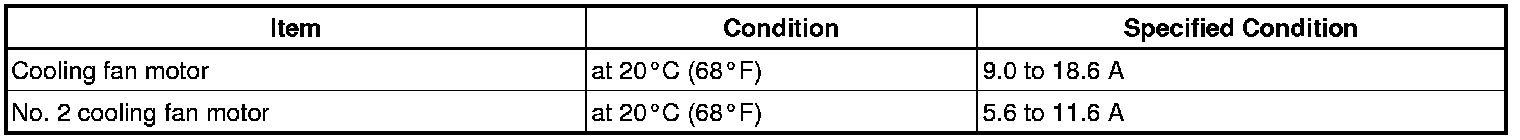

COOLING FAN MOTOR

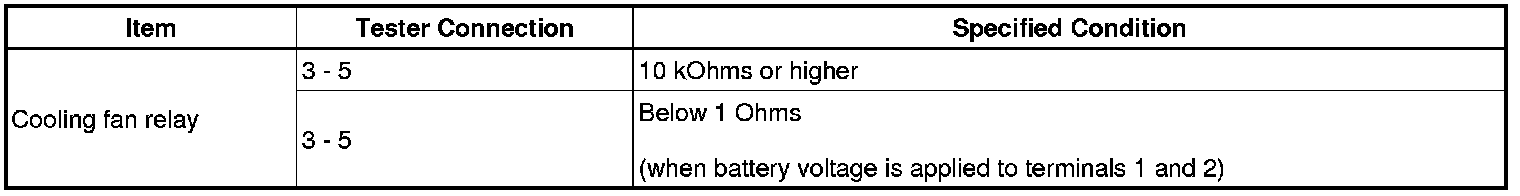

COOLING FAN RELAY





RADIATOR
