Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

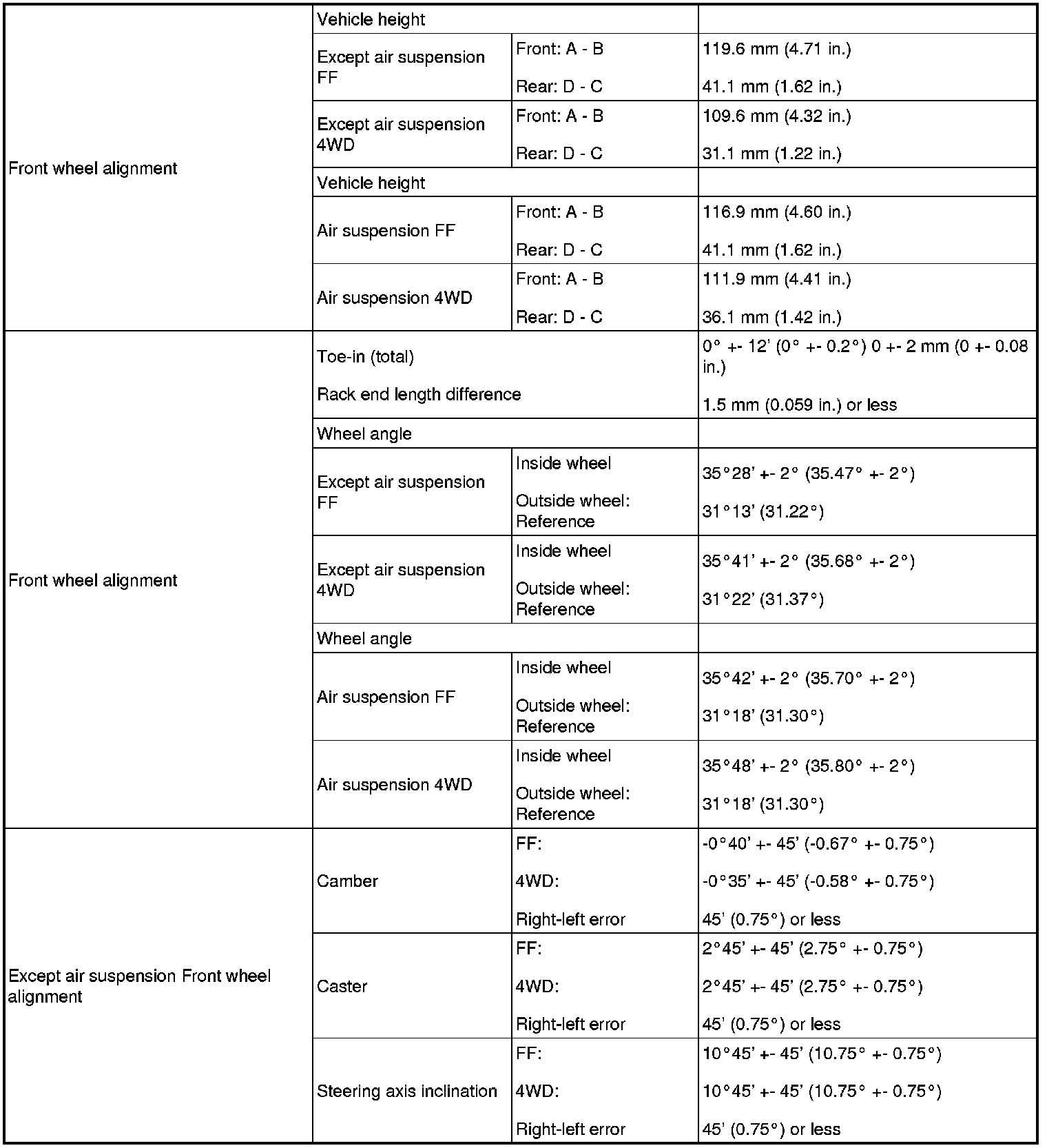

SERVICE DATA









- A: Ground clearance of front wheel center
- B: Ground clearance of lower suspension arm No.2 bush set bolt center
- C: Ground clearance of rear axle carrier bush set bolt center
- D: Ground clearance of rear wheel center
