Canada - Windows - Initialization Power windows
Bulletin2379
Issue Date
January 15, 2007
Title
INITIALIZATION OF POWER WINDOW DURING PDS
Component
GENERAL INFORMATION
Models
'08 RX 350
INTRODUCTION:
As a result of the removal of the Short Pin, the "one--touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of each door's power window position memory.
Initialize each door's Power Window after installing the Short Pin in its original location during Pre--Delivery Service (PDS) at the dealership.
NOTE:
Any time the battery terminal has been disconnected, each door's power window MUST be re-initialized.
APPLICABLE VEHICLES:
- 20087 model year RX 350 vehicles.
WARRANTY INFORMATION:
INITIALIZATION PROCEDURE:

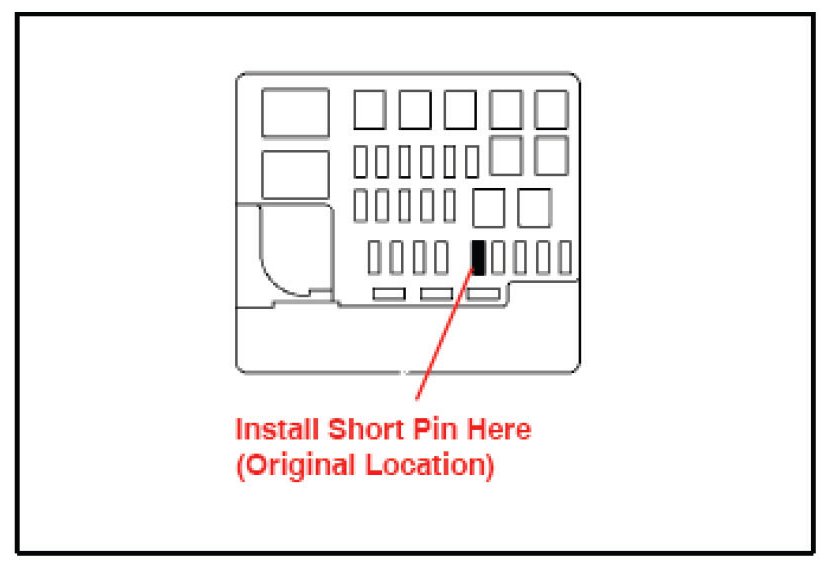

1. Check that the Short Pin is installed in its original location. (Refer to TSB No. TSB2378, "Short Pin Installation During PDS".)
2. Turn the ignition switch to the "ON" position.

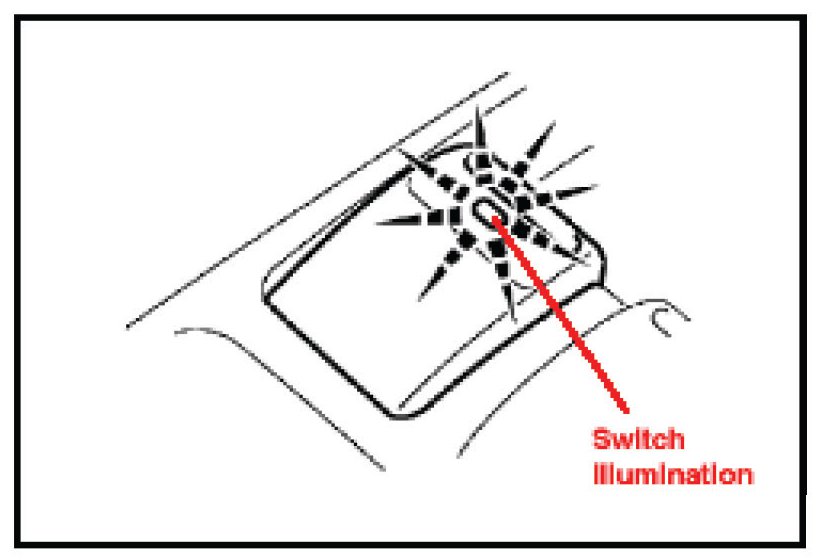

At this time, the driver's door power window switch illumination blinks.
NOTE:
Any time the battery terminal has been disconnected, each door's power window MUST be re-initialized.
3. Push the driver's door power window switch and lower the window halfway.
4. Pull up the driver's door power window switch until the window closes, and continue to hold it up for more than one second.
At this time, the driver's door power window switch illumination changes from blinking to constant illumination.
5. Check for proper operation of the "one--touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
NOTE:
Jam protection function is enabled through the above initialization procedure.
6. Repeat steps 2 -- 5 on each door's power window switch.
7. Check that each door's power window switch illumination is constant.
