Repair Instruction - Customize Parameters
INTRODUCTION: REPAIR INSTRUCTION:
CUSTOMIZE PARAMETERS
1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
HINT: The following can be customized.
NOTICE:
- Be sure to record the current value before customizing.
- When troubleshooting, be careful as customizing could turn off the function. (Example: If the wireless operation does not function, check that it has not been turned off by customizing.)
TILT & TELESCO
2. AIR CONDITIONING SYSTEM

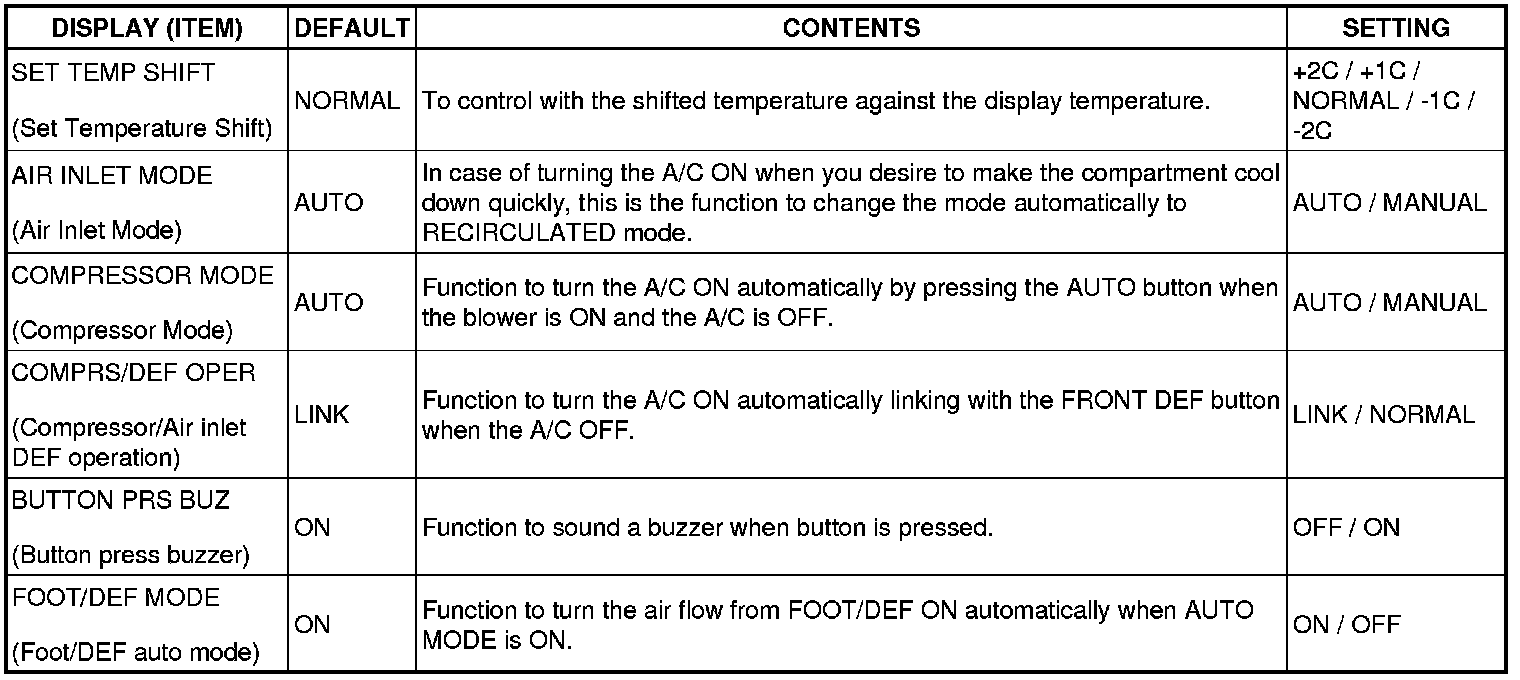

HINT: The followings are the possible items to be customized.
NOTICE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

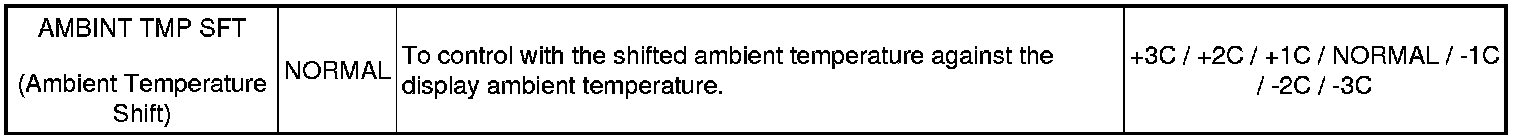

AIR CONDITIONER:
3. THEFT DETERRENT SYSTEM
HINT: The following items can be customized.
NOTICE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
- Be sure to record the current settings before customization.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).
THEFT DETERRENT SYSTEM:
4. LIGHTING SYSTEM
HINT: The followings are the possible items to be customized.
NOTICE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

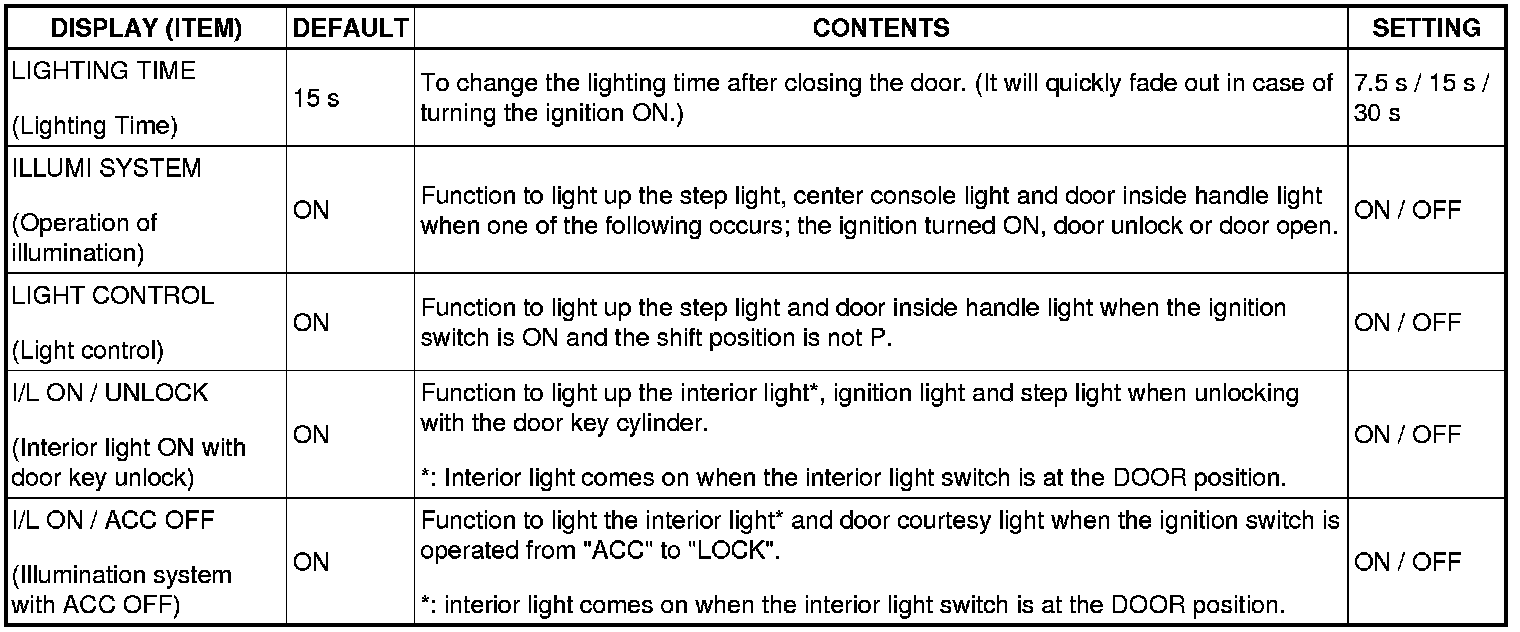

ILLUMINATED ENTRY
LIGHT CONTROL
HINT: Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.

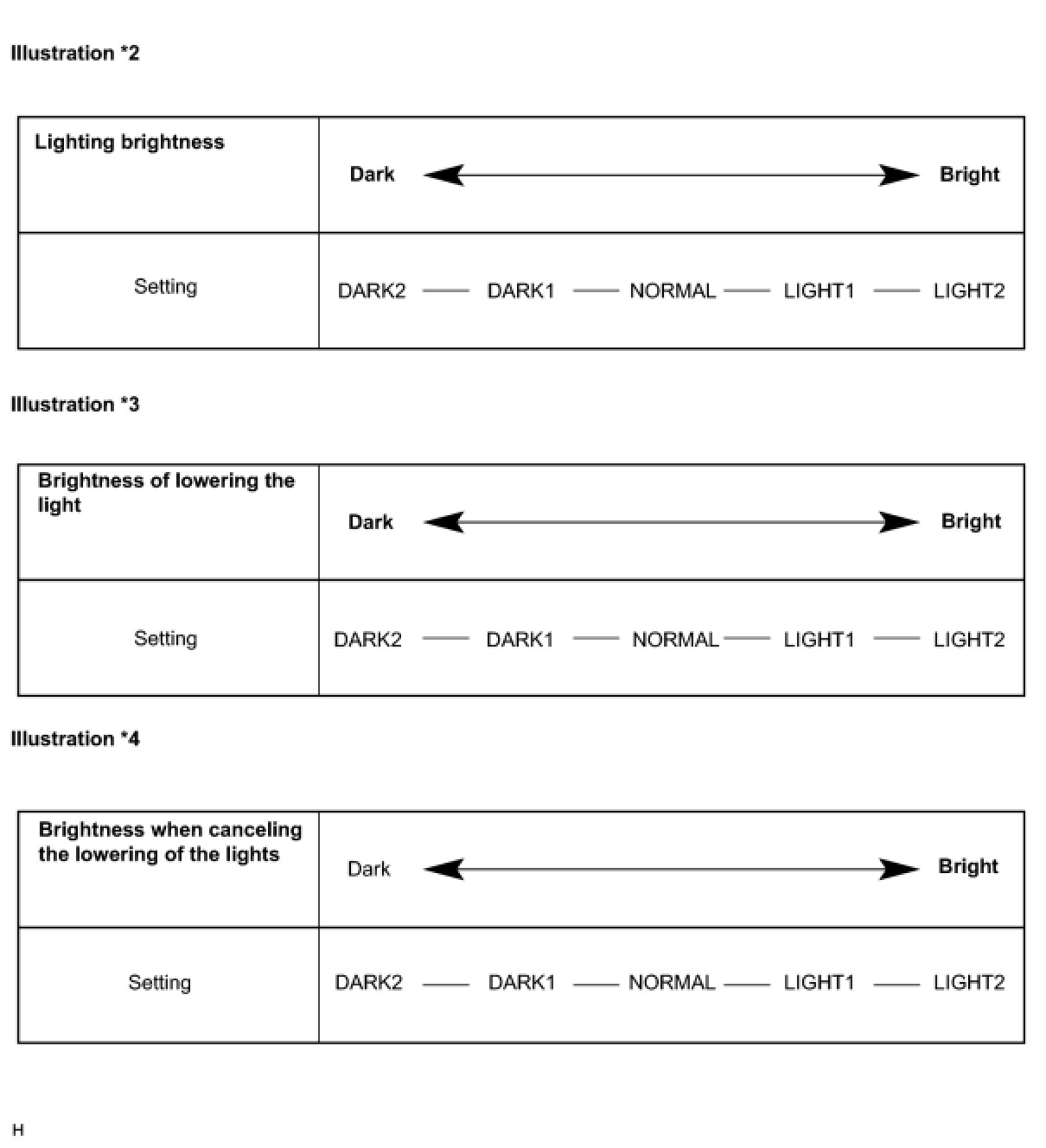

Illustration *1
**1: The new one has the logic to light up two times brighter than the old logic.
**2: Delay time until the headlight is turned on when it suddenly gets dark.
5. WIPER AND WASHER SYSTEM
HINT: The following items can be customized.
NOTICE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

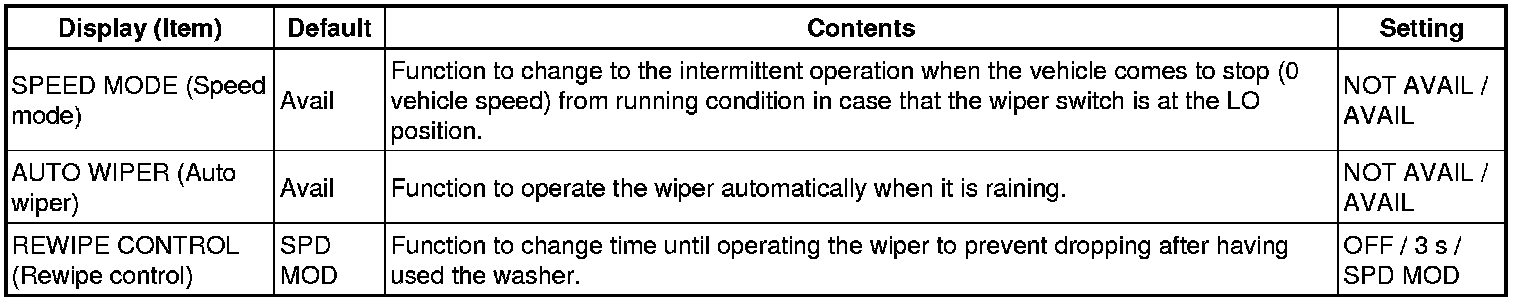

WIPER
6. POWER DOOR LOCK CONTROL SYSTEM
CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)
HINT: The following items can be customized.
NOTICE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customize operations.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.
BODY
7. WIRELESS DOOR LOCK CONTROL SYSTEM

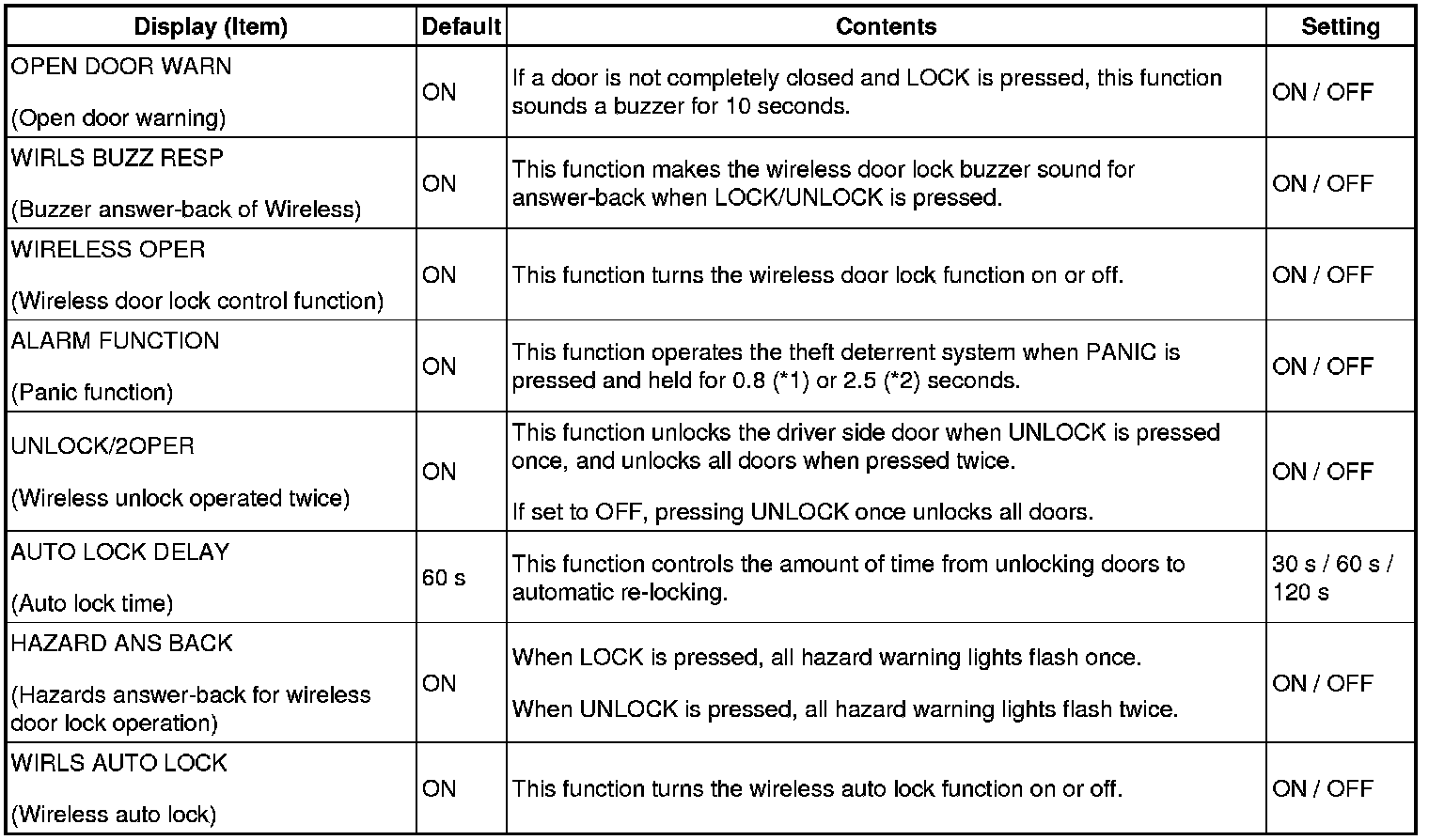

HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is not set to OFF.
HINT:
- (*1): with Power Back Door
- (*2): without Power Back Door
8. METER/GAUGE SYSTEM (Combination Meter Assembly)
NOTICE:
- Be sure to record the current value before customizing.

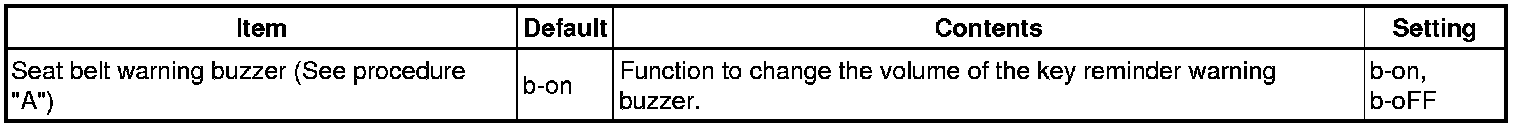

HINT: The following item can be customized without using the intelligent tester.
9. METER/GAUGE SYSTEM (Seat Belt Buzzer ON/OFF Setting (Procedure "A"))
The seat belt buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver and front passenger side seat belt buzzers.
NOTICE:
- These buzzers should be on for safe driving. Perform these procedures only if it is necessary to set the buzzer off (disabled).
- When either the battery cable or the combination meter connector is disconnected, these buzzers are set on (enabled).
- Odometer returns to 0 after starting this procedure, although it is not displayed.
HINT: "b-oFF" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The seat belt buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that the buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.
(a) Driver and front passenger side seat belt buzzers
(1) Turn the ignition switch to the ON position.
(2) Press the ODO/TRIP switch until the odometer displays "ODO".
(3) Turn the ignition switch off.
(4) Turn the ignition switch to the ON position.
(5) Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
(6) Continue holding down the ODO/TRIP switch and fasten the driver side seat belt.
(7) Check that the odometer displays either "b-on" or "b-oFF".
(8) Press the ODO/TRIP switch to change the display to "b-oFF".
(9) Turn the ignition switch off.
(10) Turn the ignition switch to the ON position.
(11) Check that no buzzer sounds when the vehicle speed is 20 km/h (12.4 mph) or more.
(b) Front passenger side seat belt buzzer
(1) Turn the ignition switch to the ON position.
(2) Press the ODO/TRIP switch until the odometer displays "ODO".
(3) Turn the ignition switch off.
(4) Turn the ignition switch to the ON position.
(5) Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
(6) Sit in the front passenger seat. Continue holding down the ODO/TRIP switch and fasten the front passenger side seat belt.
(7) Check that the odometer displays either "b-on" or "b-oFF".
(8) Press the ODO/TRIP switch to change the display to "b-oFF".
(9) Turn the ignition switch off.
(10) Turn the ignition switch to the ON position.
(11) Check that no buzzer sounds when the vehicle speed is 20 km/h (12.4 mph) or more.
10. POWER WINDOW CONTROL SYSTEM
HINT: The following items can be customized.
NOTICE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customize operations.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization. (Example: For the symptom "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

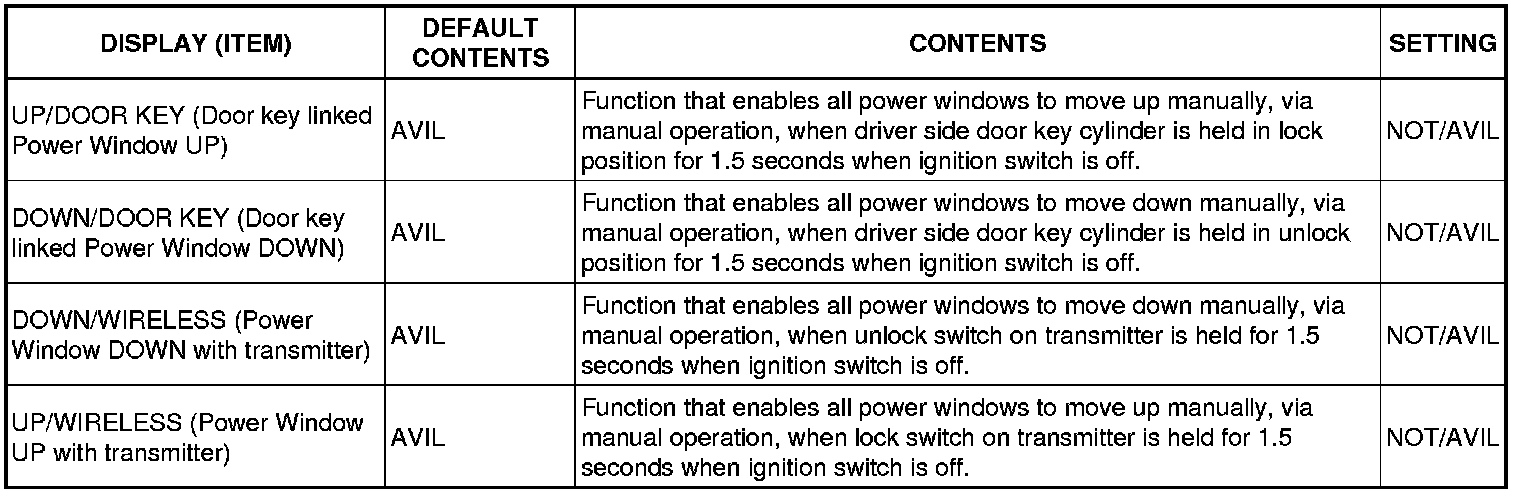

POWER WINDOW:
11. POWER BACK DOOR SYSTEM
HINT: The following items can be customized.
NOTICE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customize operations.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.
Power back door ECU
HINT:
- *1: Wireless (transmitter switch) operation of the power back door is disabled.
- *2: When this item is set to ON:
When the back door is fully closed, pulling the back door opener switch (outside handle switch) activates the power back door system to automatically open the back door after that it is unlatched.
