Automatic Transmission/Transaxle: Locations

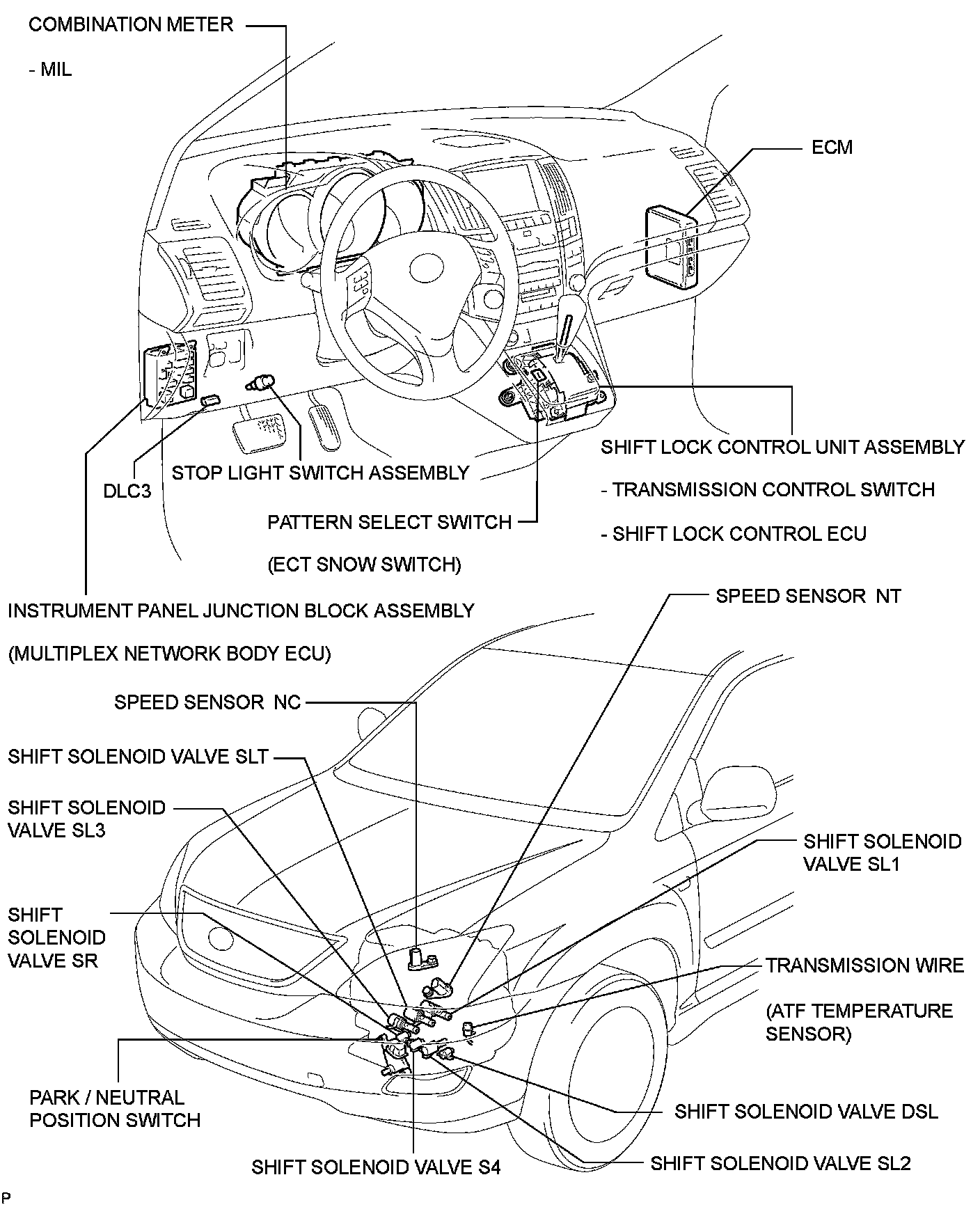

U151F AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
PARTS LOCATION
