Headlamp Washer Motor: Testing and Inspection

WIPER AND WASHER: HEADLIGHT CLEANER MOTOR: INSPECTION

INSPECTION

1. INSPECT HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY






(a) Operation Check
(1) Fill the washer jar with the washer fluid.

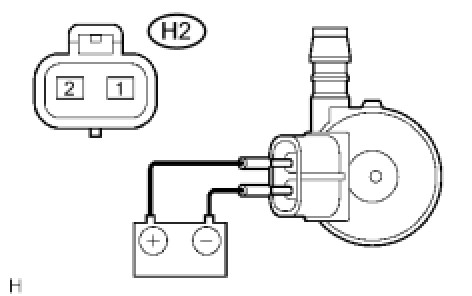

(2) Connect the positive battery (+) lead to terminal H2-1 of the headlight cleaner motor and pump assembly, and the negative battery (-) lead to terminal H2-2. Check that washer fluid flows from the washer jar.
