Rain Sensor: Testing and Inspection

WIPER AND WASHER: RAIN SENSOR:

ON-VEHICLE INSPECTION

1. INSPECT RAIN SENSOR

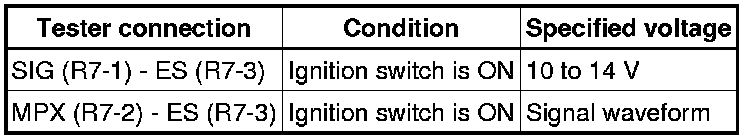

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:
