Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE:

ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY
(a) With the engine running, check the position that the washer fluid hits the windshield.





Standard:
Washer fluid hits the windshield in the areas shown in the illustration.

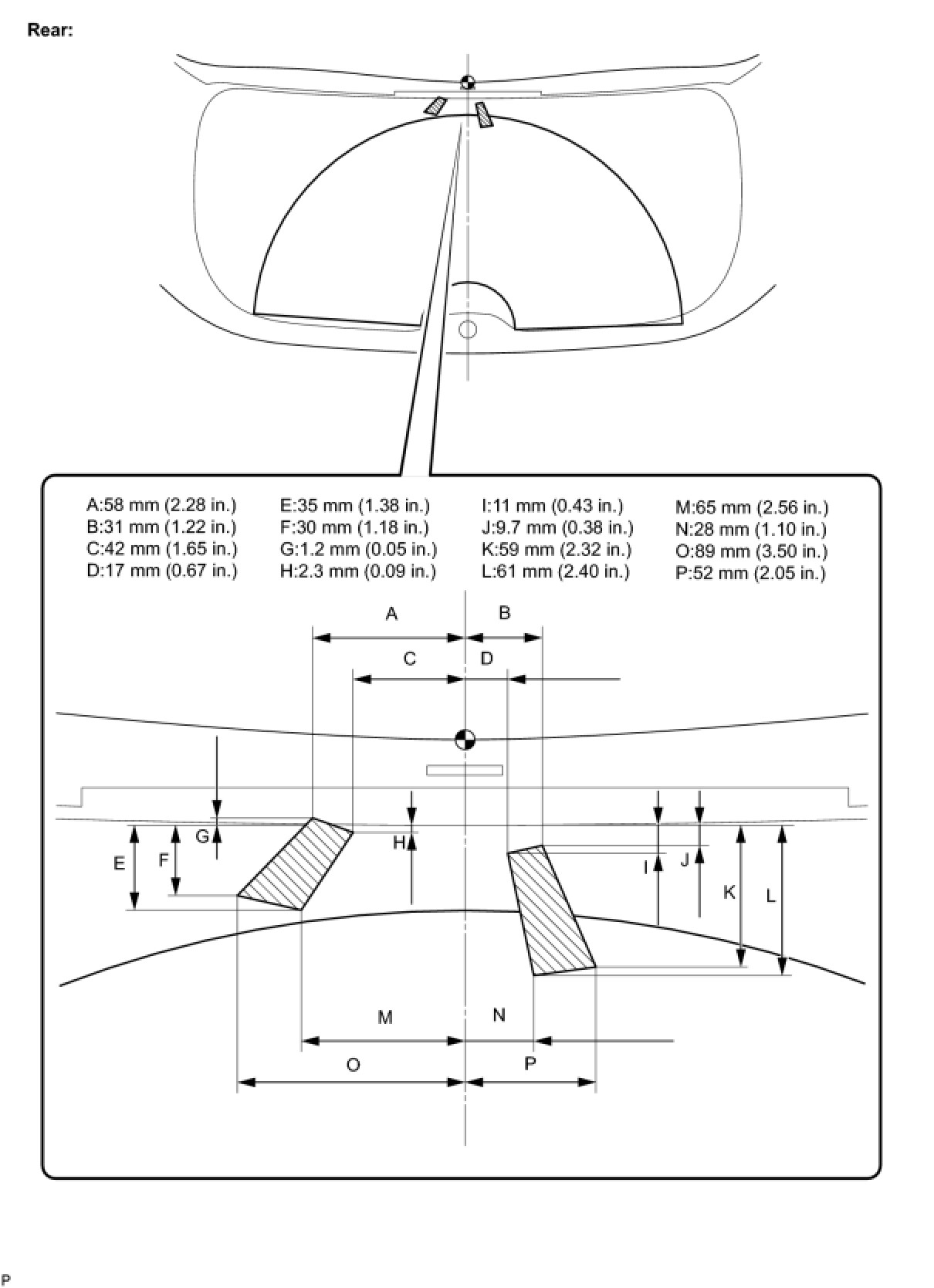

(b) With the engine running, check the position that the washer fluid hits the back door glass.





Standard:
Washer fluid hits the back door glass in the areas shown in the illustration.
