Trunk / Liftgate: Adjustments

ENGINE HOOD / DOOR: BACK DOOR: ADJUSTMENT

ADJUSTMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Service Precautions
2. INSPECT BACK DOOR
(a) Check that the clearance is within the standard range.





Standard range:





3. ADJUST BACK DOOR






(a) Loosen the body side hinge nuts and adjust the door right, left, forward, and rearward.
Torque: 11.5 Nm (117 kgf-cm, 8.0 ft-lbf)

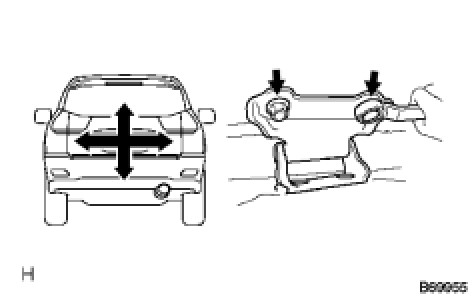

(b) Horizontally and vertically adjust the back door by loosening the back door side hinge bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)






(c) When adjusting the back door rear side to side and the back door lock striker assembly, loosen the bolts until the striker can move. Lightly tap striker with a brass bar for adjustment.
Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION Repair Instruction - Initialization
