Symptom Related Diagnostic Procedures

SEAT: FRONT POWER SEAT CONTROL SYSTEM:

PROBLEM SYMPTOMS TABLE
HINT:
- Inspect the fuse and relay before confirming the suspected areas in the table below.
- Inspect each suspected area in numerical order for the corresponding symptom.
HINT: If the malfunction still exists after checking and confirming that all circuits and components are normal, replace the ECU.

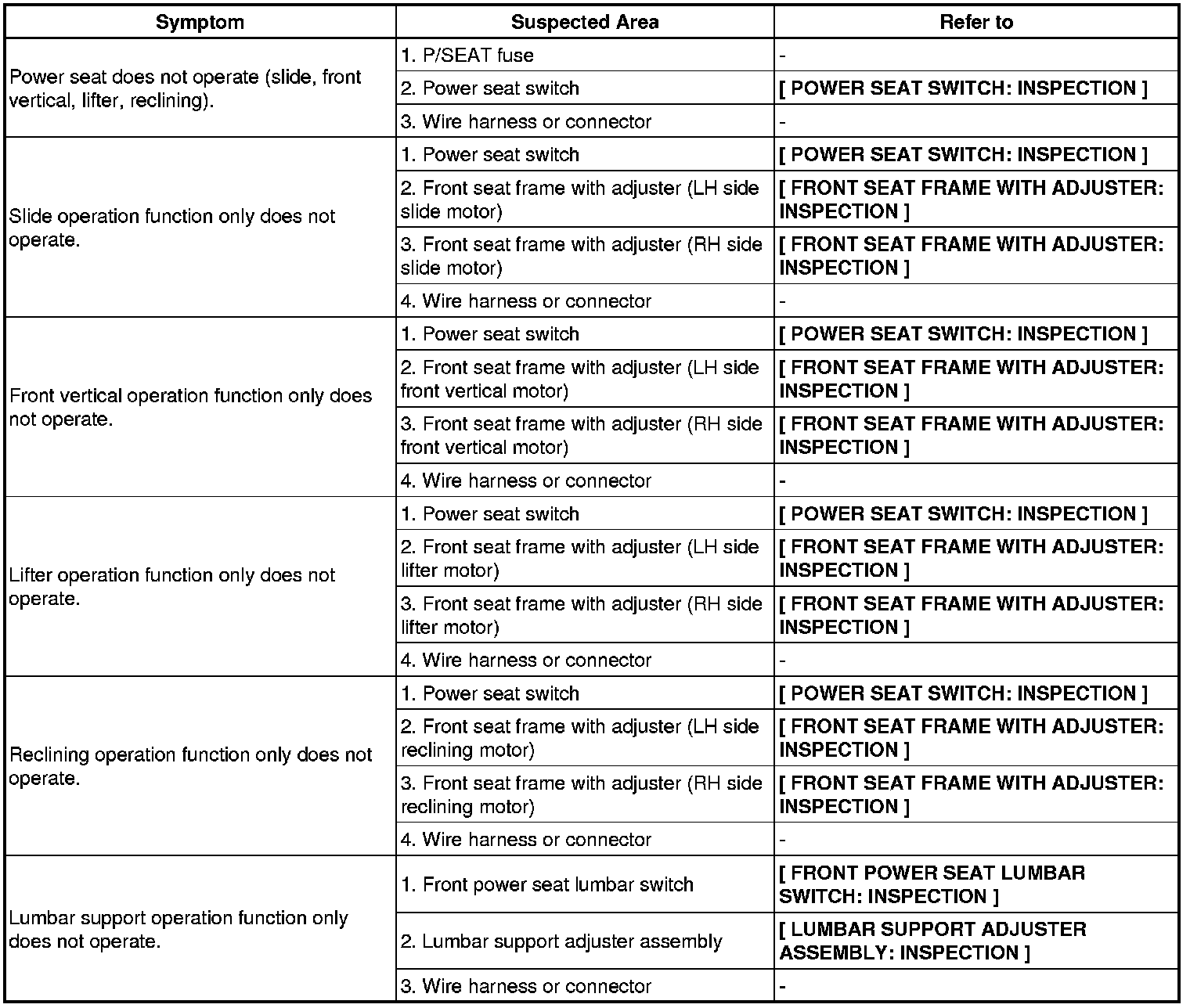

1. FRONT POWER SEAT CONTROL SYSTEM (w/o MEMORY)

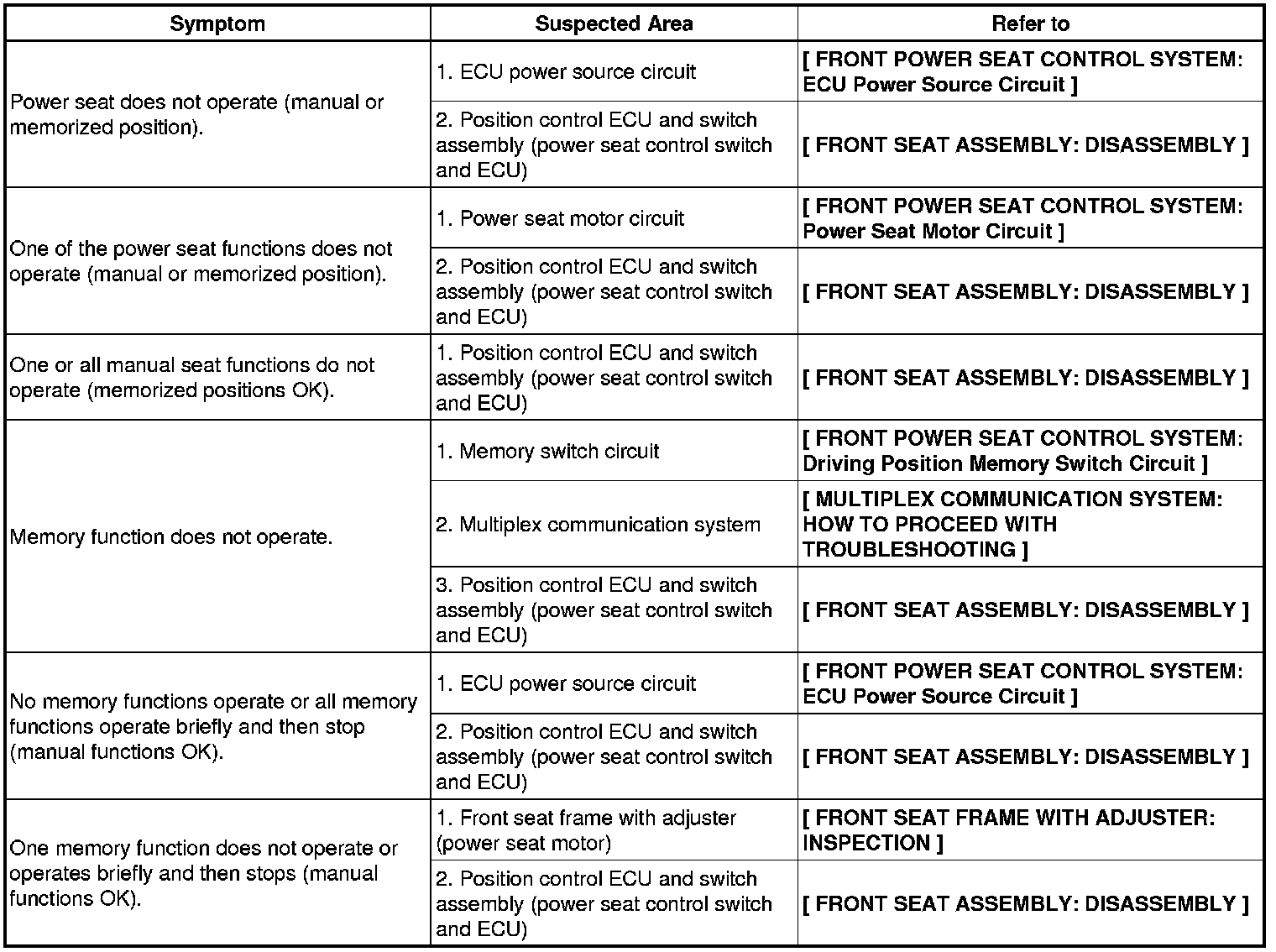

2. FRONT POWER SEAT CONTROL SYSTEM (w/ MEMORY)
