Installation

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY:

INSTALLATION

1. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

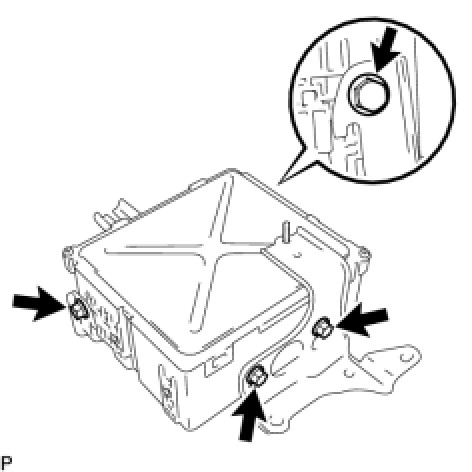

(a) Install the 2 brackets with the 4 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)






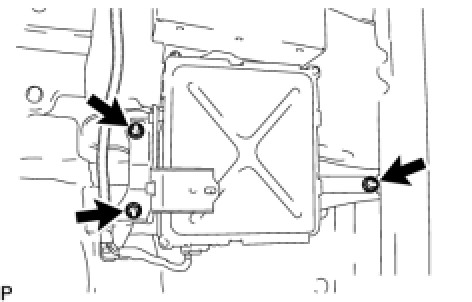

(b) Install the brake control power supply assembly with the 3 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

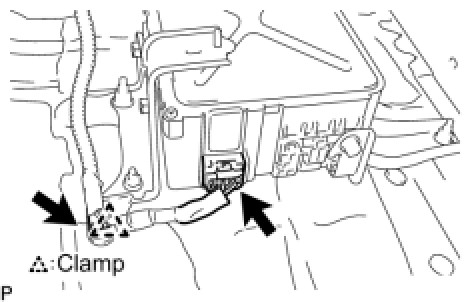

(c) Connect the brake control power supply assembly connector and install the clamp.
2. INSTALL DECK BOARD NO.1 CHECK
(a) Install the deck board No.1 check with the 4 nuts.
3. INSTALL DECK SIDE TRIM BOX RH
4. INSTALL DECK SIDE TRIM BOX LH Installation

5. INSTALL REAR FLOOR FINISH PLATE Installation

6. INSTALL DECK NO.2 BOARD SUB-ASSEMBLY Installation

7. INSTALL DECK NO.3 BOARD SUB-ASSEMBLY Installation

8. INSTALL DECK FLOOR BOX REAR Installation

9. INSTALL DECK FLOOR BOX FRONT Installation

10. INSTALL DECK BOARD SUB-ASSEMBLY Installation

11. CHECK AND CLEAR DTC Reading and Clearing Diagnostic Trouble Codes

12. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal. Repair Instruction - Initialization
