Driver/Vehicle Information Display
Driver/Vehicle Information Display

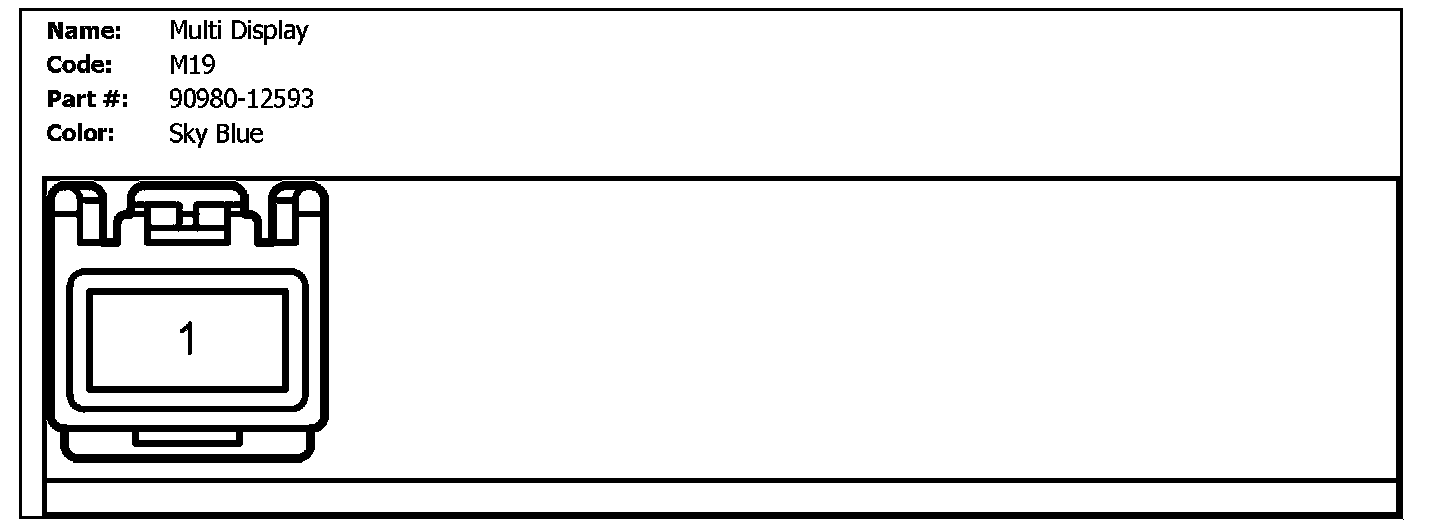

M19 (Multi Display):
M3 (Multi Display):

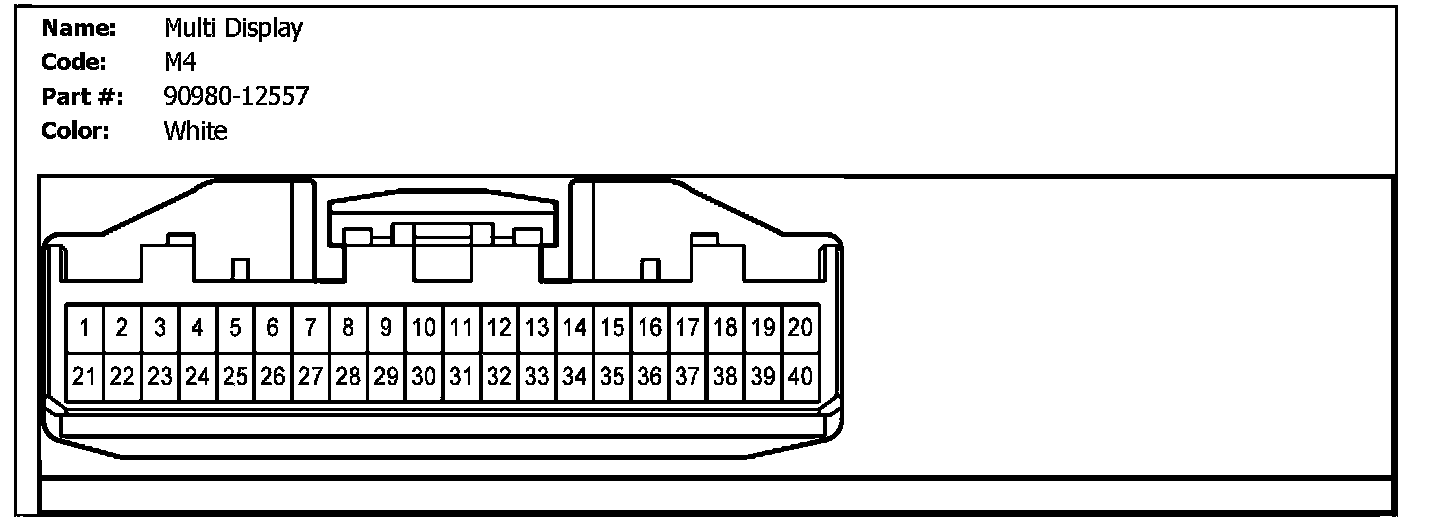

M4 (Multi Display):

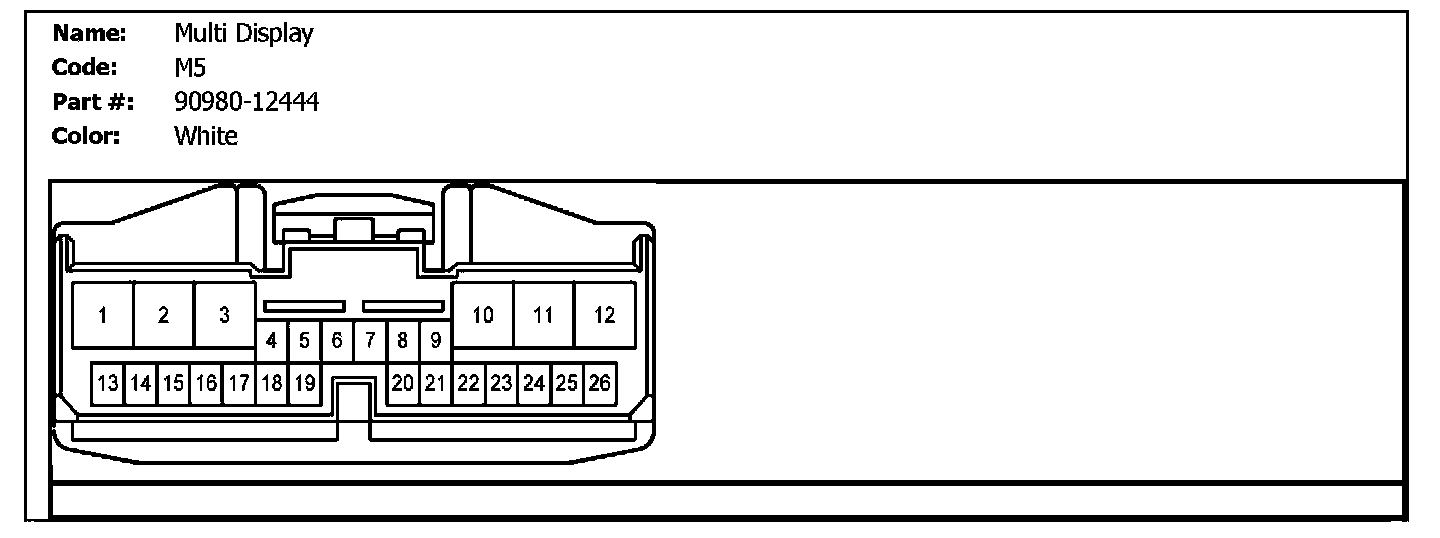

M5 (Multi Display):
M7 (Multi Display):
