Driver/Vehicle Information Display

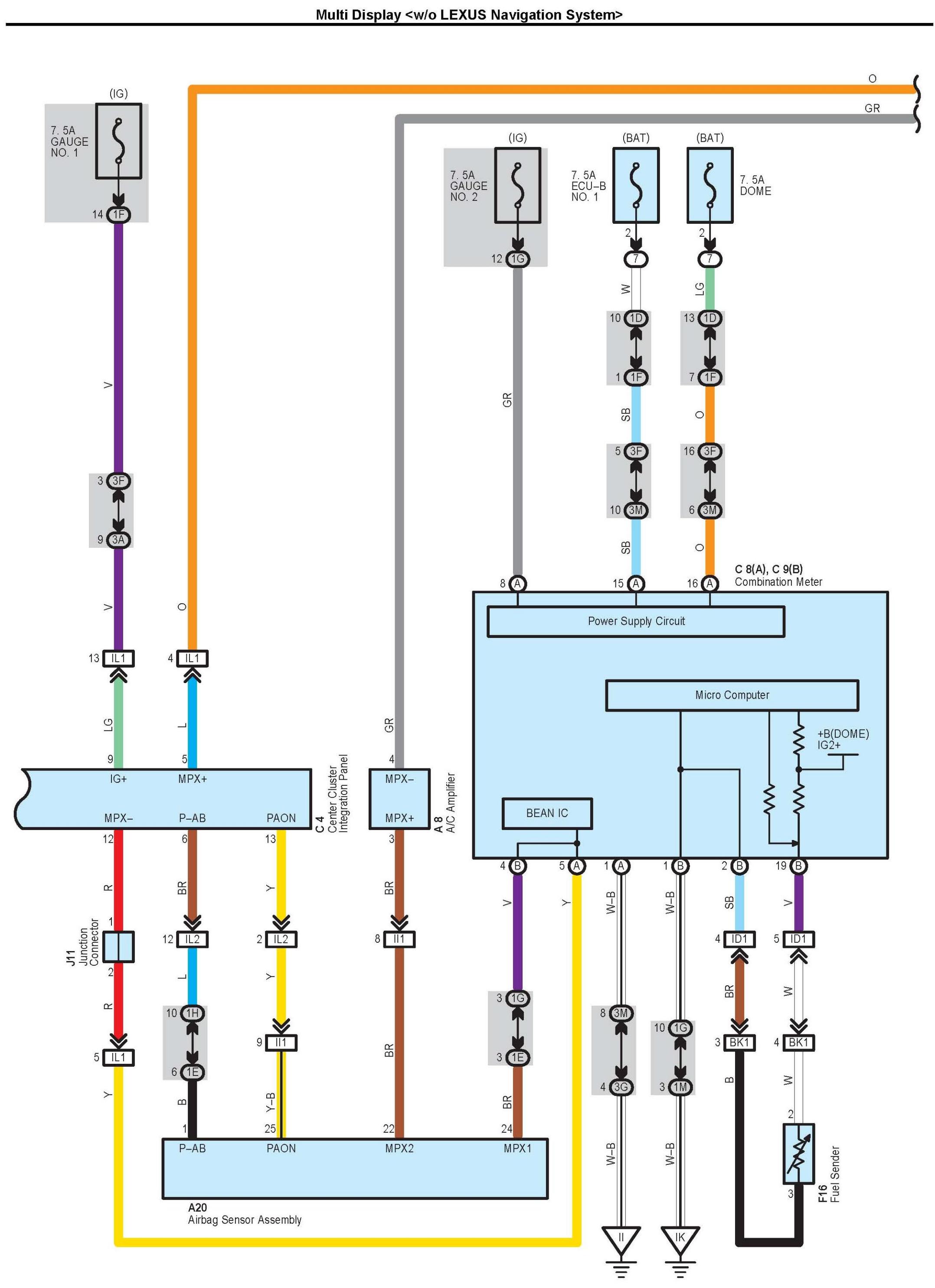

Multi Display <w/o LEXUS Navigation System> Part 1:

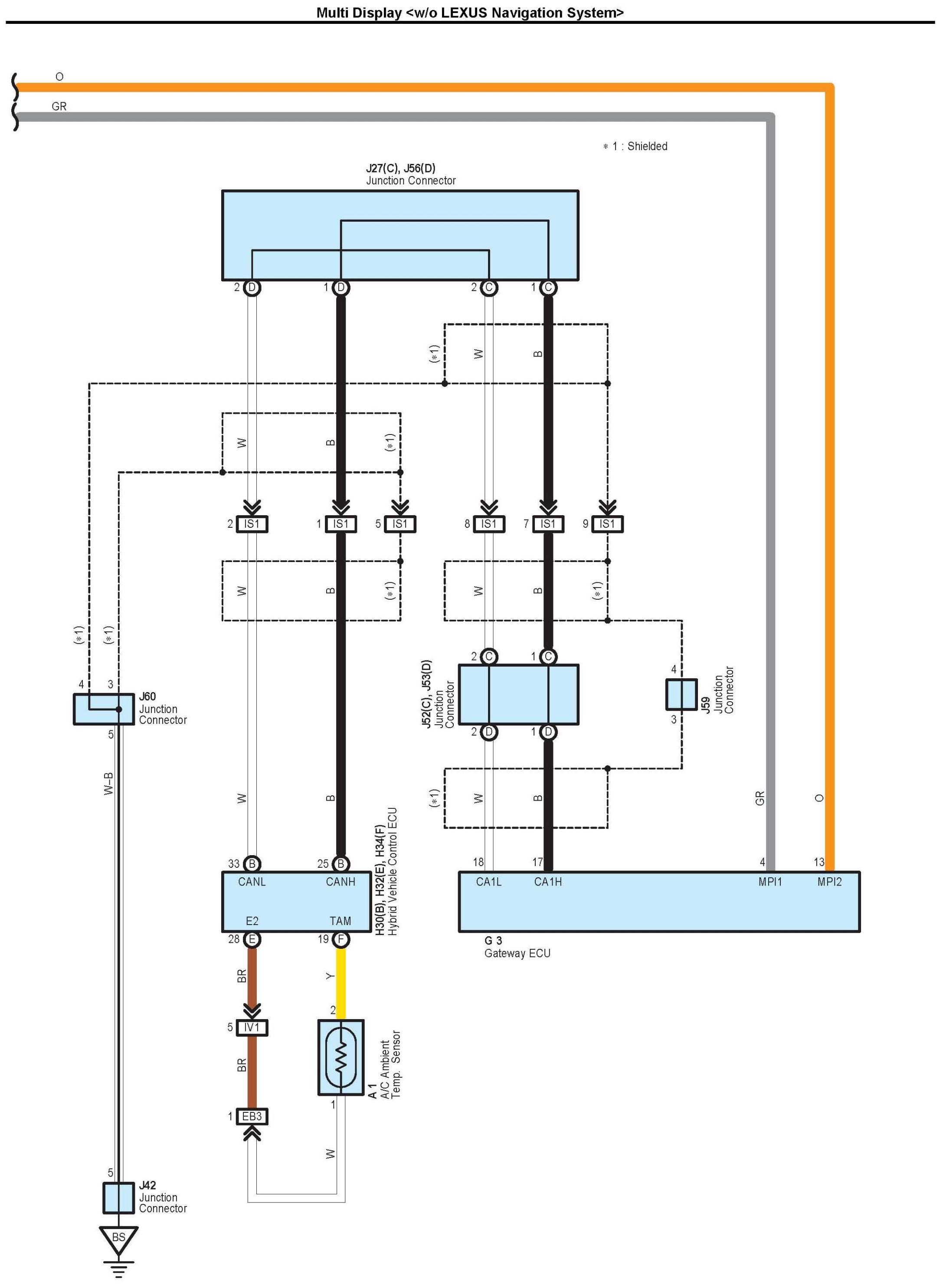

Multi Display <w/o LEXUS Navigation System> Part 2:

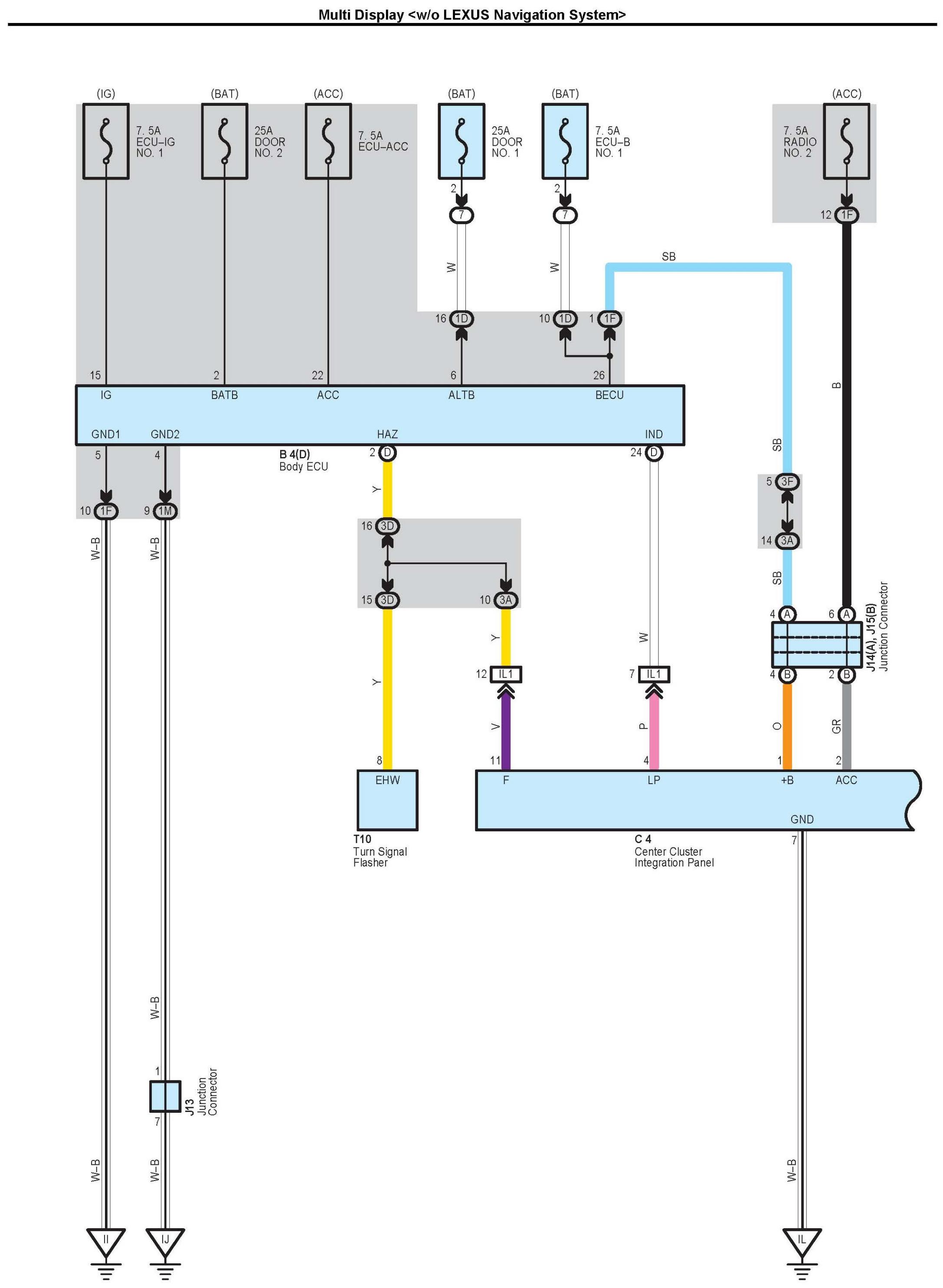

Multi Display <w/o LEXUS Navigation System> Part 3:

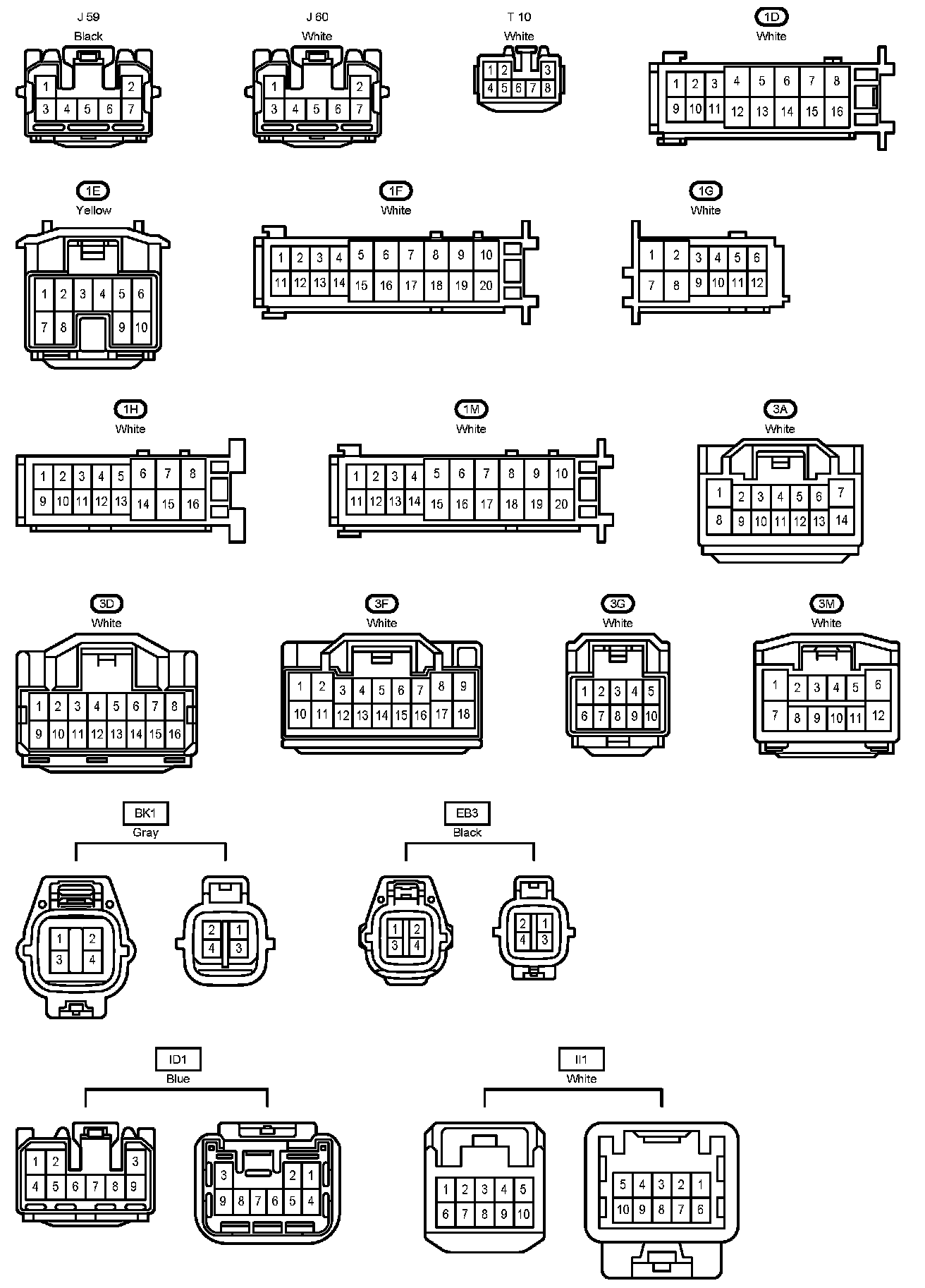

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
