Mirror Heater [w/ Driving Position Memory] , Remote Control Mirror [w/ Driving Position Memory]

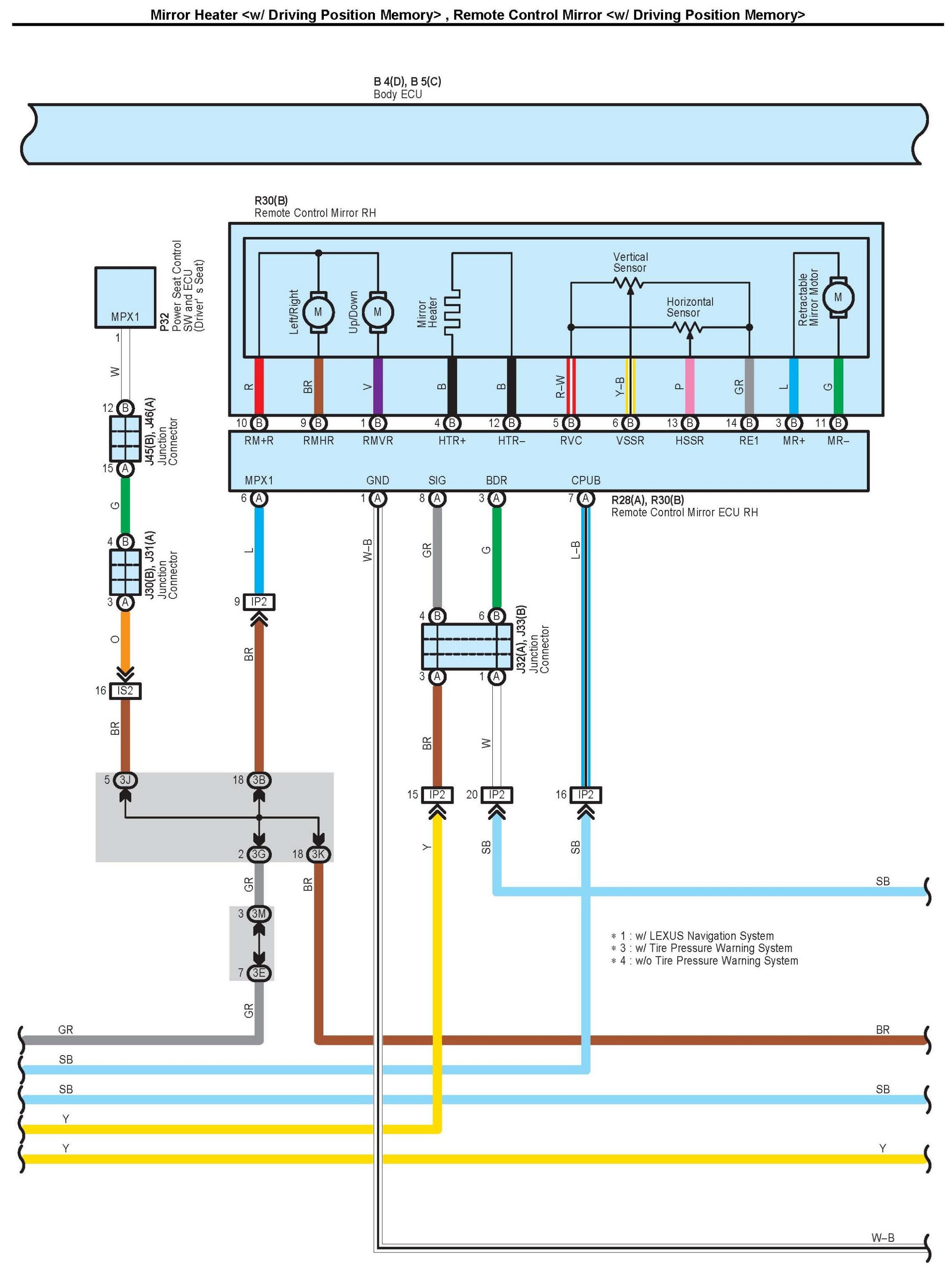

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 1:

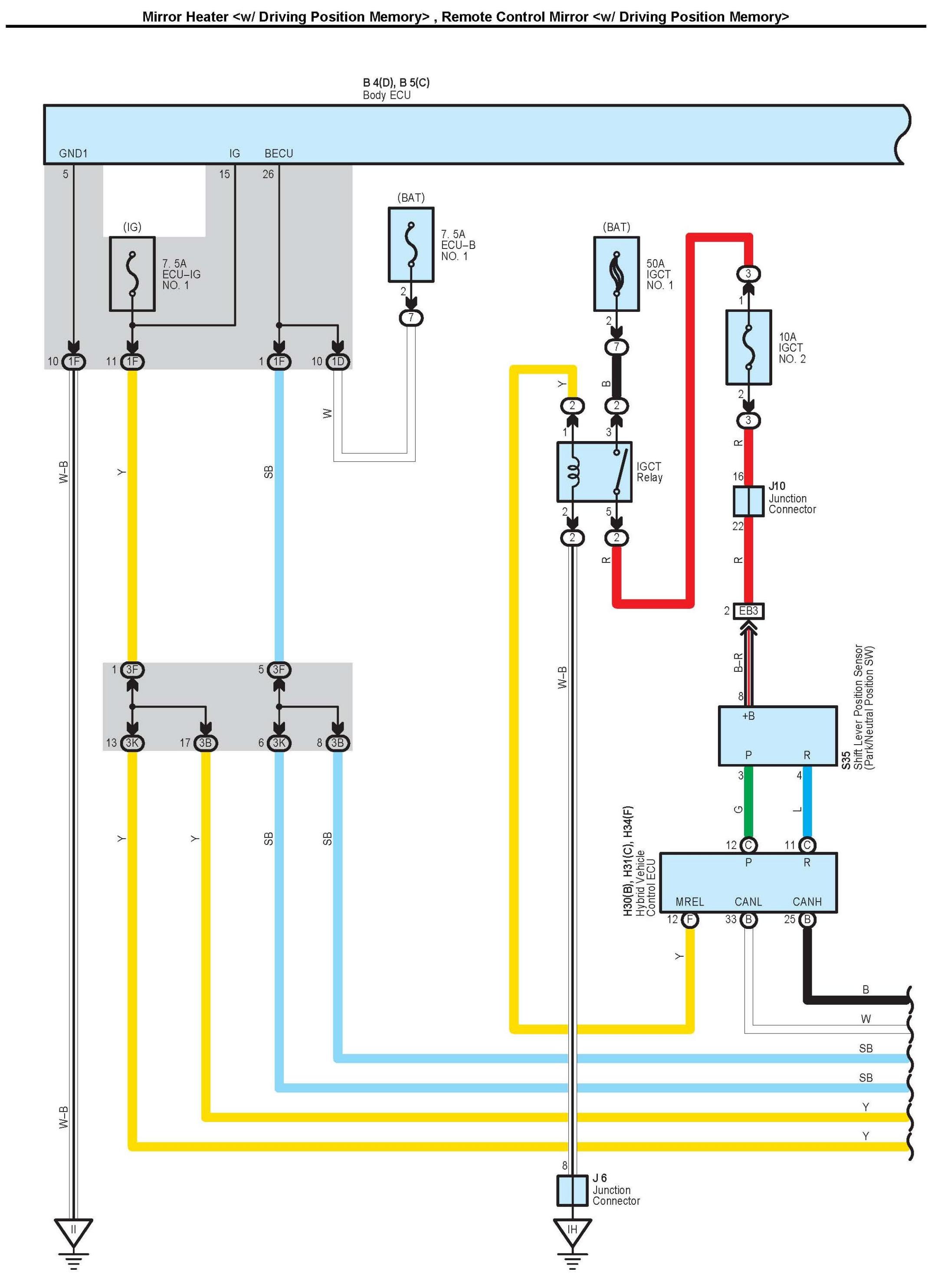

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 2:

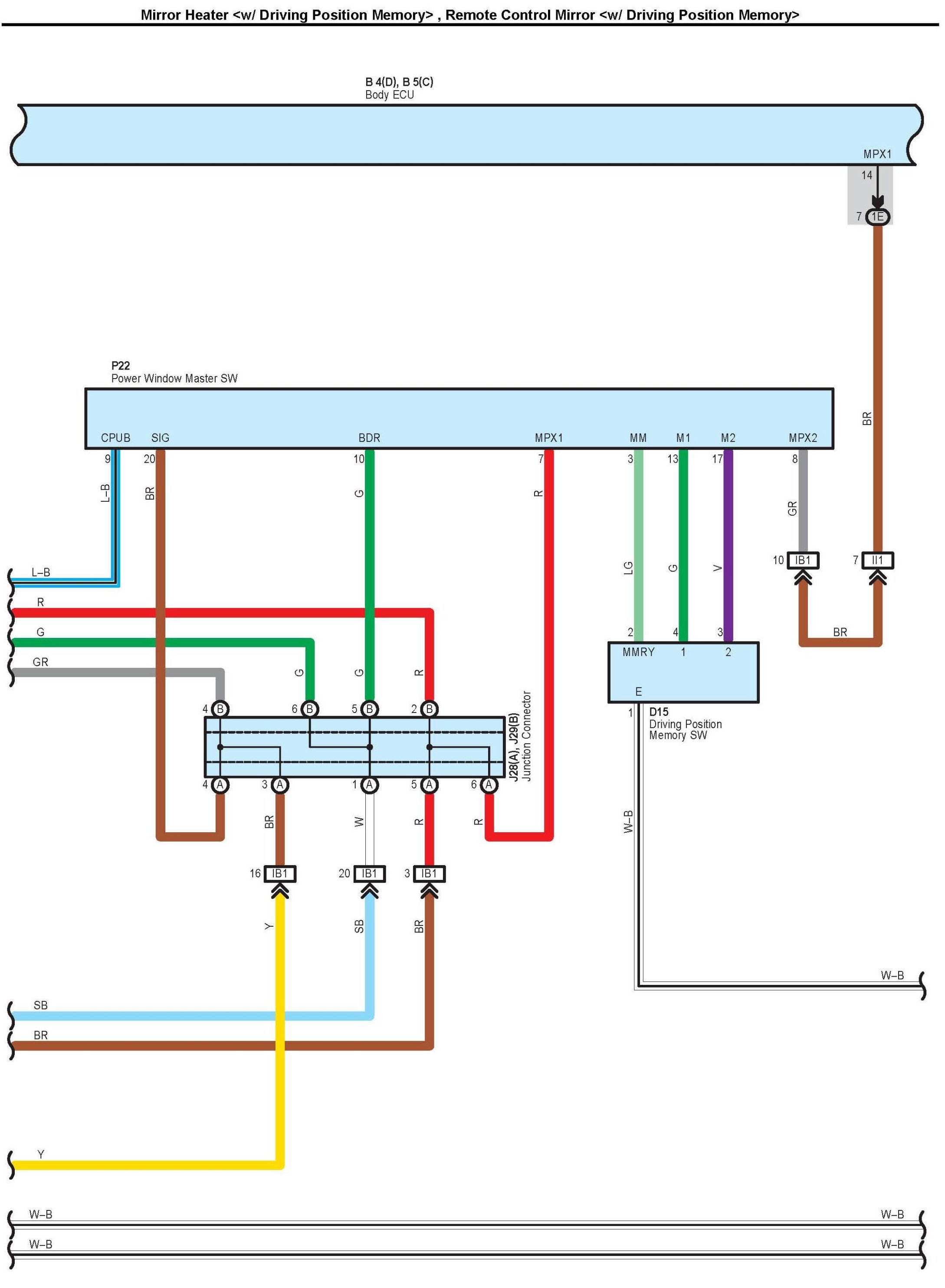

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 3:

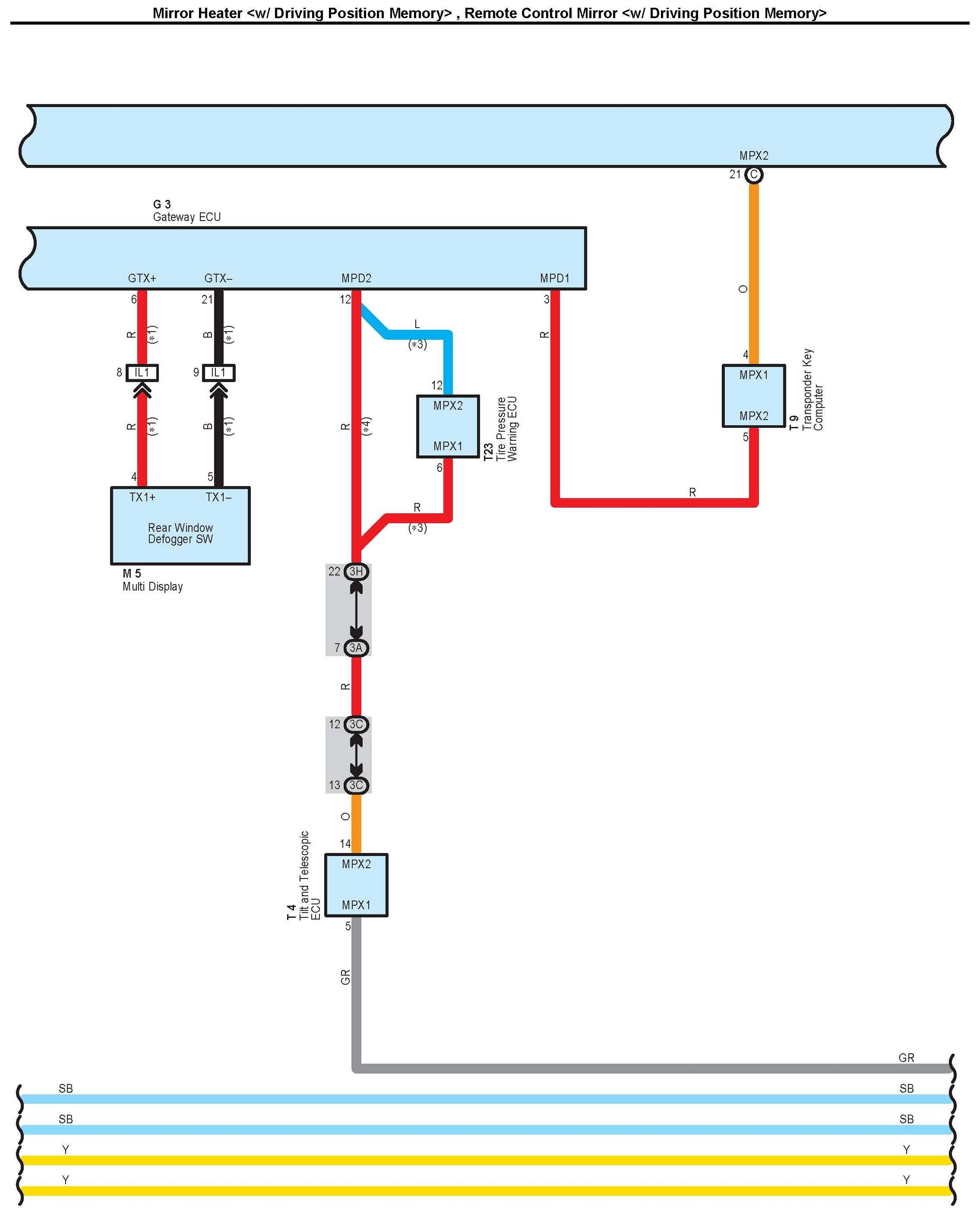

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 4:

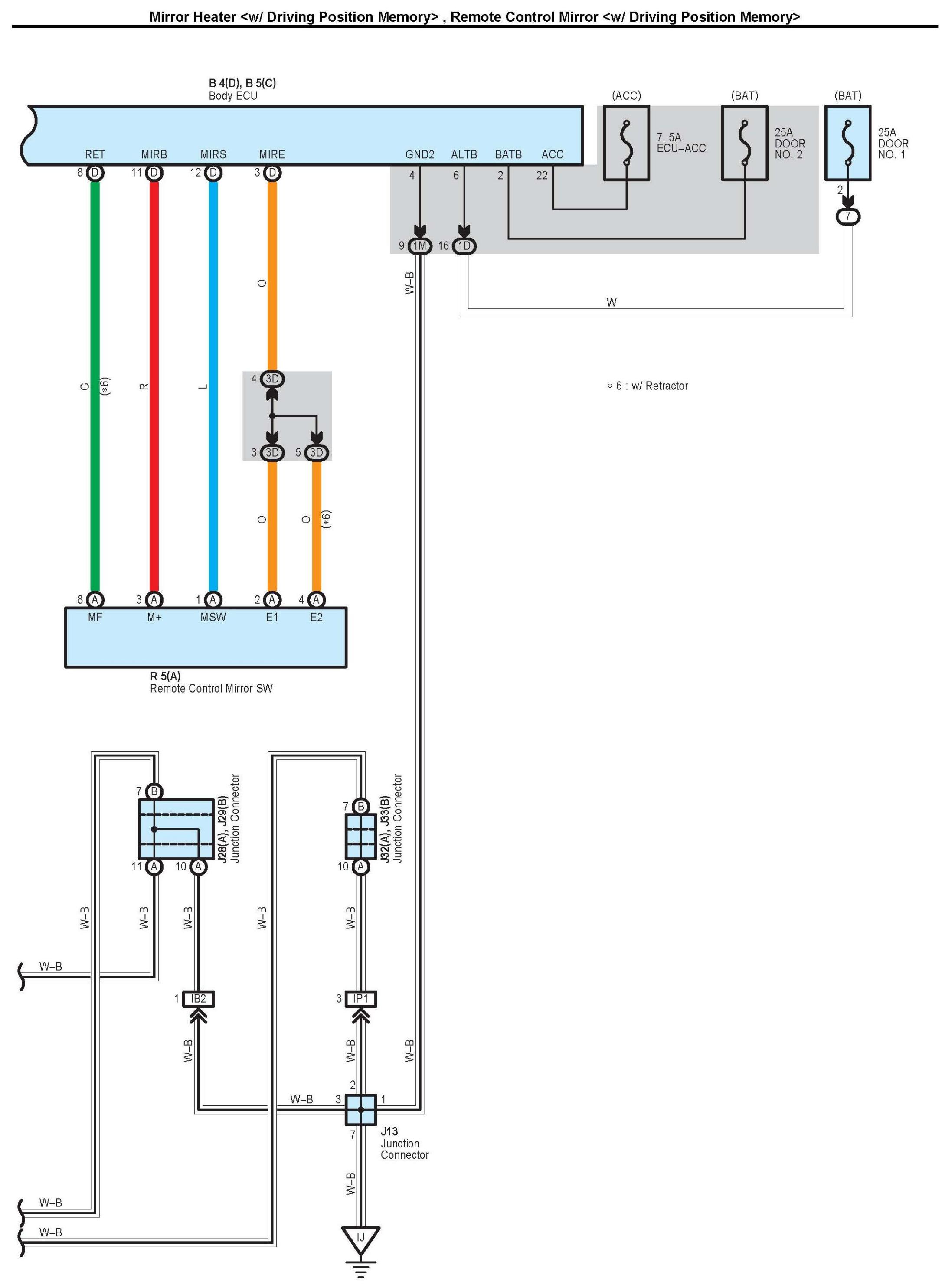

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 5:

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 6:

Mirror Heater <w/ Driving Position Memory>, Remote Control Mirror <w/ Driving Position Memory> Part 7:

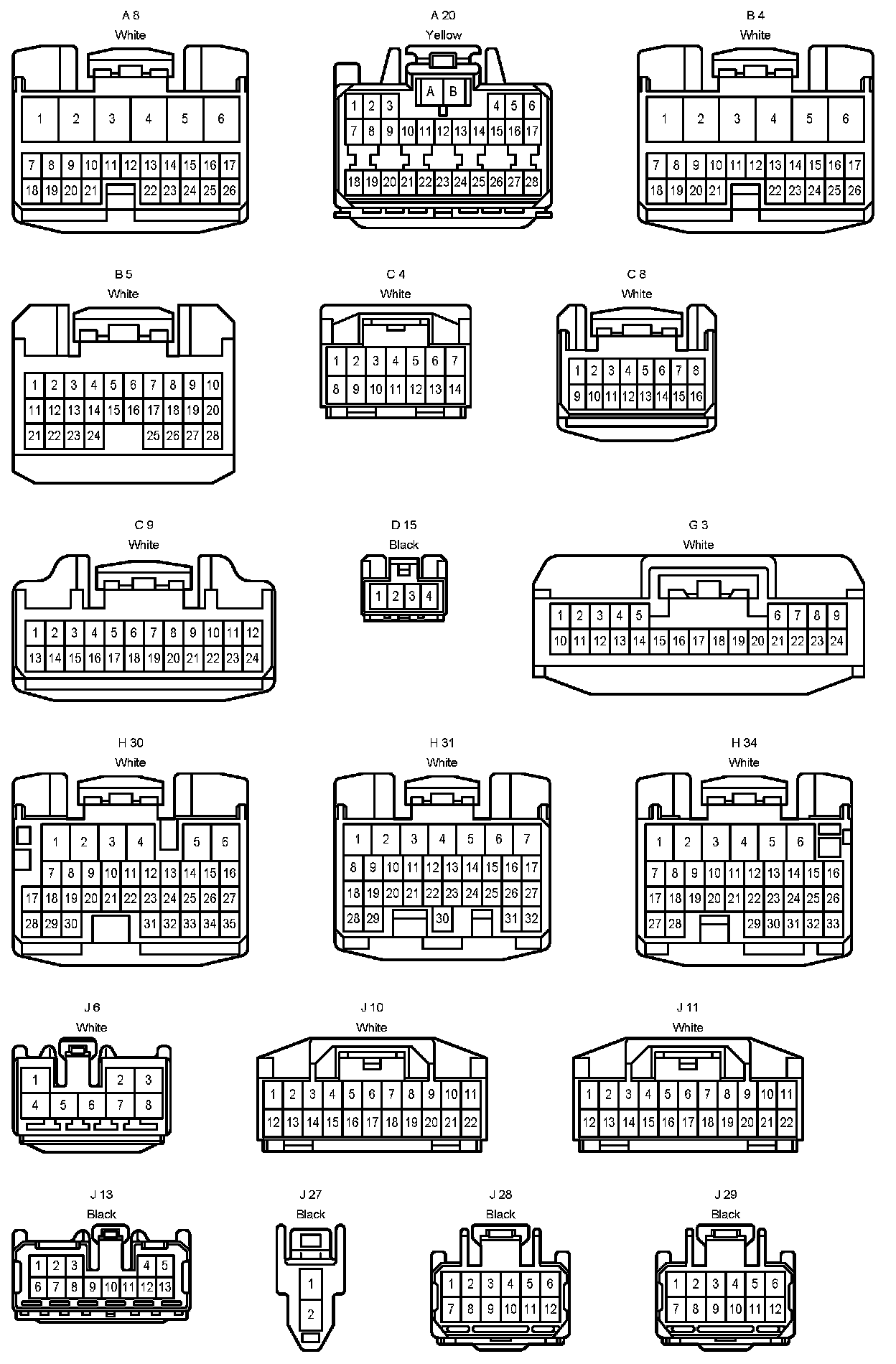

Connector Pin Outs Part 1:

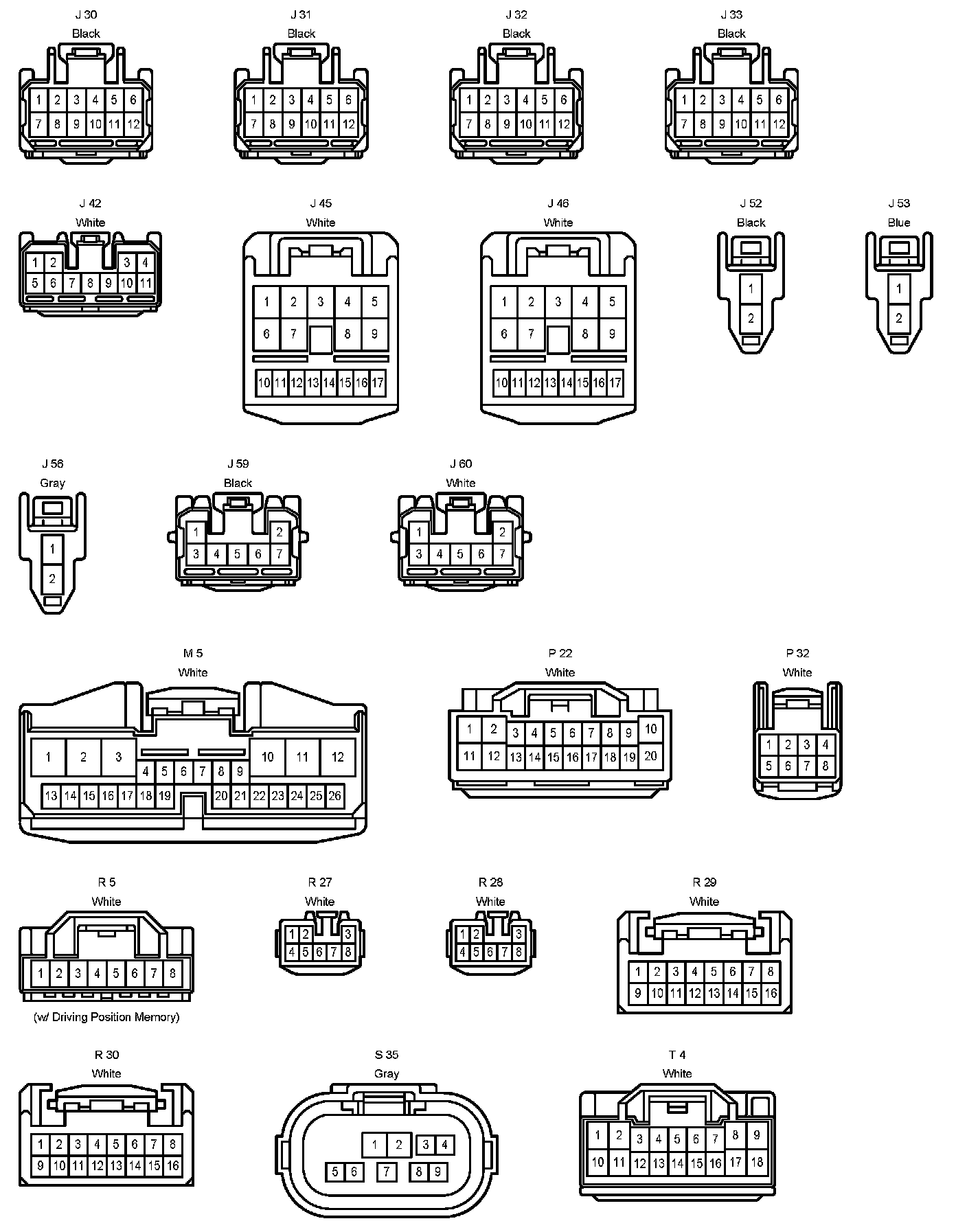

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
