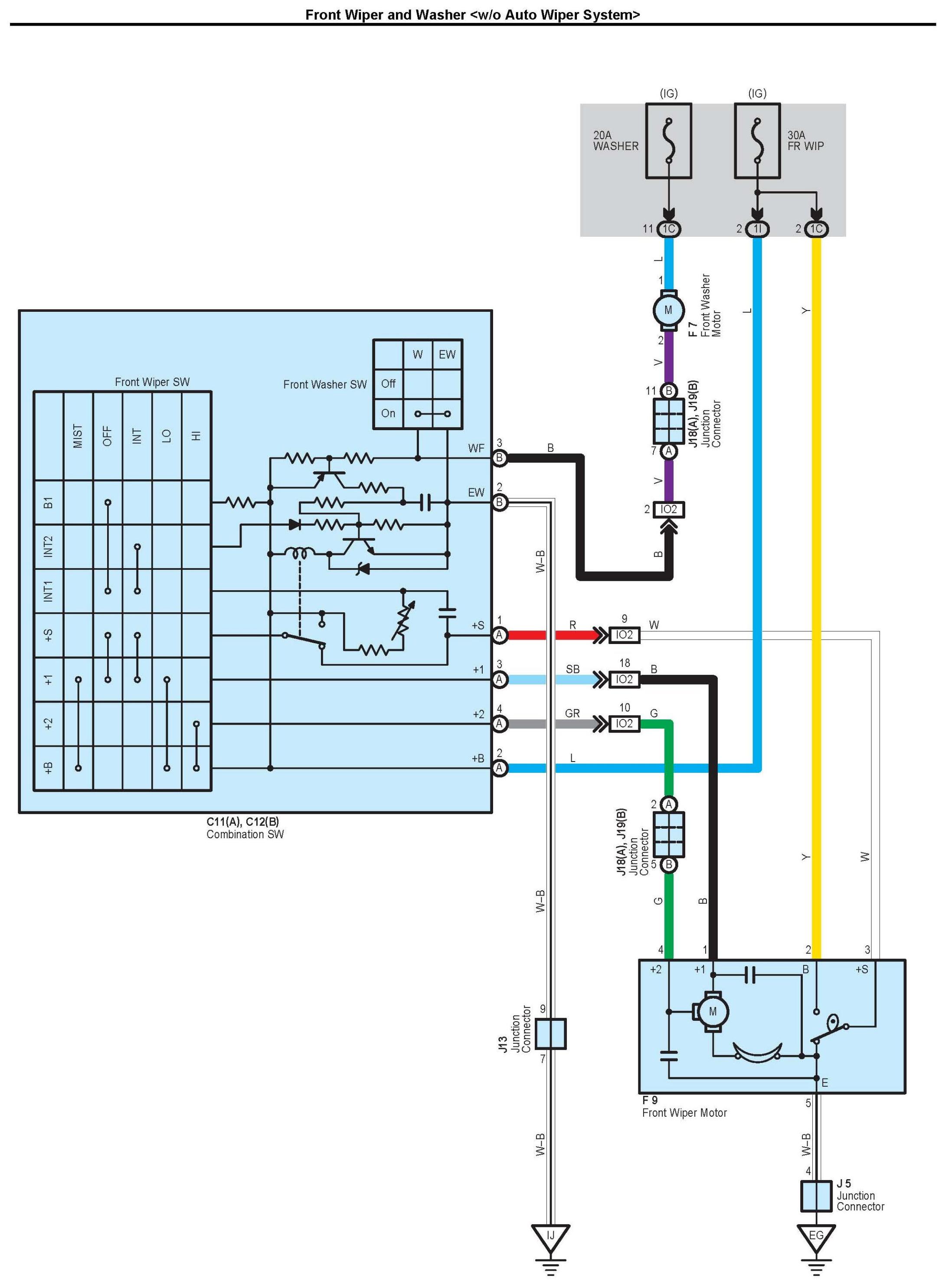

Front Wiper and Washer [w/o Auto Wiper System]

Front Wiper And Washer <w/o Auto Wiper System>:

Connector Pin Outs:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
