Compressor HVAC: Testing and Inspection








AIR CONDITIONING: ELECTRIC INVERTER COMPRESSOR:

INSPECTION

1. INSPECT ELECTRIC INVERTER COMPRESSOR

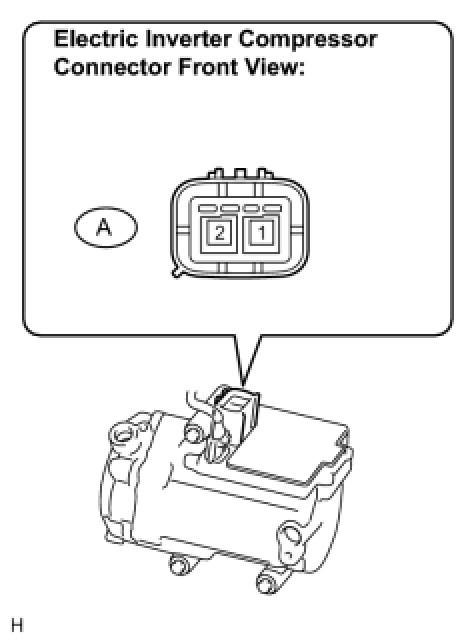

(a) Disconnect the connector from the electric inverter compressor (A).

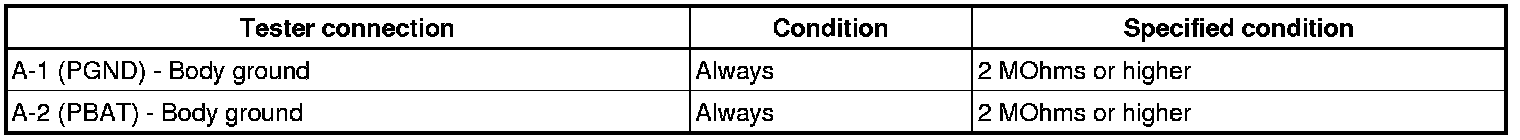

(b) Using a megohm tester, measure the resistance according to the value(s) in the table below.
Resistance:
