Reassembly








INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD:

REASSEMBLY

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
2. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

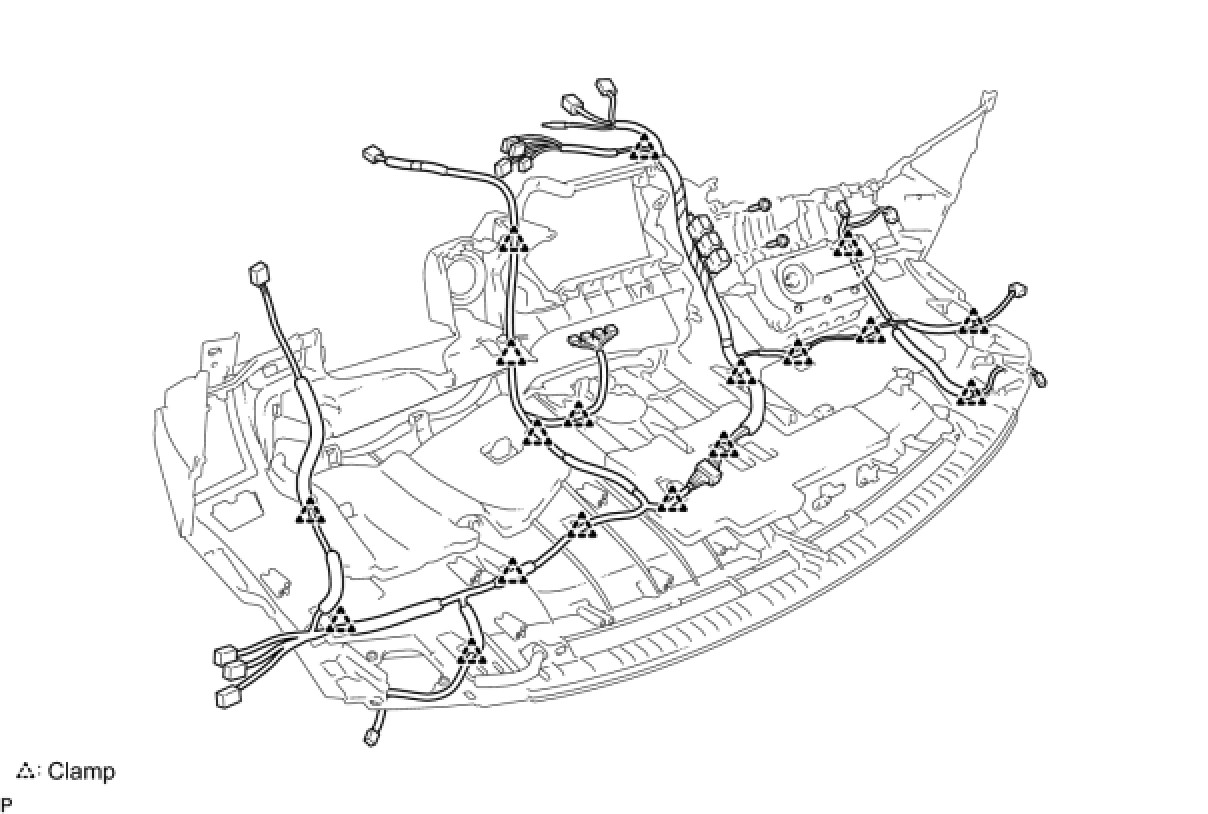

3. INSTALL INSTRUMENT PANEL NO.2 WIRE
(a) Engage the 18 clamps.
(b) Install the 2 screws and the instrument panel No.2 wire.





4. INSTALL NO.2 RADIO ANTENNA CORD (w/ Navigation System) Installation

5. INSTALL NO.2 RADIO ANTENNA CORD (w/o Navigation System) Installation

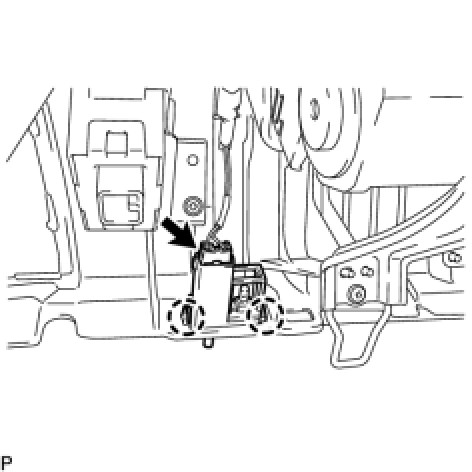

6. INSTALL GLOVE BOX LIGHT ASSEMBLY






(a) Engage the 2 claws and install the glove box light assembly.
(b) Connect the connector.
7. INSTALL INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER






(a) Install the screw [C] and the instrument panel bracket sub-assembly center.
8. INSTALL DEFROSTER NOZZLE NO.1 GARNISH






(a) Engage the 2 clips and 4 claws then install the defroster nozzle No.1 garnish.

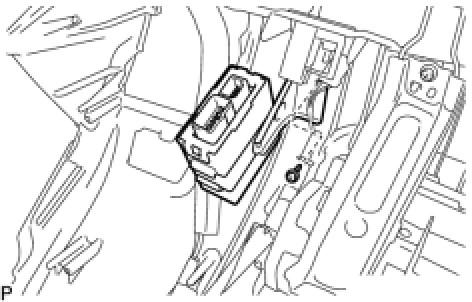

9. INSTALL NETWORK GATEWAY ECU






(a) Install the screw [C] and the network gateway ECU.
10. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY (w/ Rain Sensor)






(a) Install the screw [C] and the windshield wiper relay assembly.

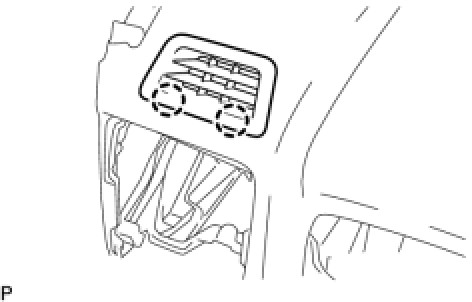

11. INSTALL SIDE DEFROSTER NO.1 NOZZLE






(a) Engage the 2 claws and install the side defroster No.1 nozzle.
12. INSTALL SIDE DEFROSTER NO.2 NOZZLE
HINT: Use the same procedures for the side defroster No.2 nozzle and the side defroster No.1 nozzle

13. INSTALL SIDE DEFROSTER NO.1 NOZZLE DUCT






(a) Install the screw [C] and the side defroster No.1 nozzle duct.
14. INSTALL SIDE DEFROSTER NO.2 NOZZLE DUCT
HINT: Use the same procedures for the side defroster No.2 nozzle duct and the side defroster No.1 nozzle duct.

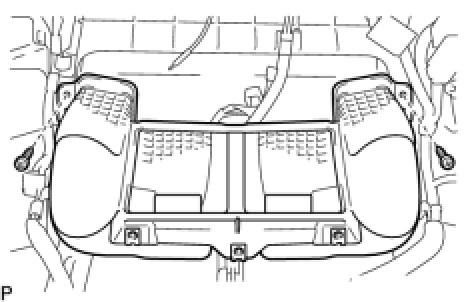

15. INSTALL HEATER TO REGISTER CENTER SUB DUCT






(a) Install the 2 screws [C] and the heater to register center sub duct.

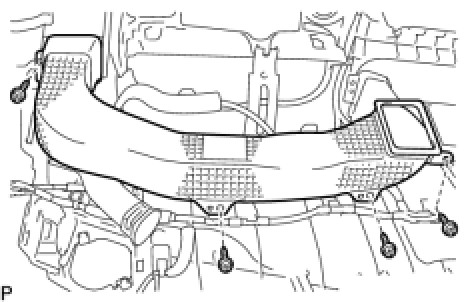

16. INSTALL HEATER TO REGISTER NO.1 DUCT






(a) Install the 4 screws [C] and the heater to register No.1 duct.
17. INSTALL HEATER TO REGISTER NO.4 DUCT
HINT: Use the same procedures for the heater to register No.4 duct and the heater to register No.1 duct.

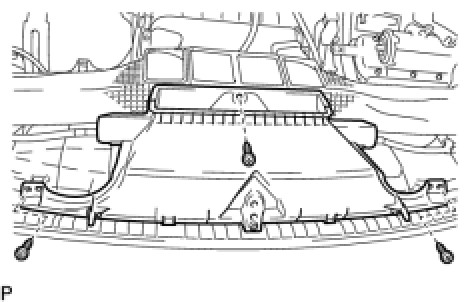

18. INSTALL DEFROSTER NOZZLE ASSEMBLY






(a) Install the 3 screws [C] and the defroster nozzle assembly.

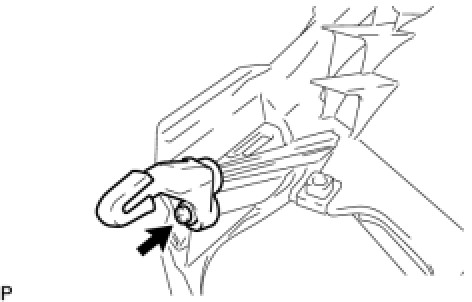

19. INSTALL INSTRUMENT PANEL NO.1 PIN






(a) Install the screw [C] and the instrument panel No.1 pin.
20. INSTALL SIDE DEFROSTER NO.3 NOZZLE DUCT






(a) Install the screw [C] and the side defroster No.3 nozzle duct.
21. INSTALL SIDE DEFROSTER NO.4 NOZZLE DUCT
HINT: Use the same procedures for the side defroster No.4 nozzle duct and the side defroster No.3 nozzle duct.

22. INSTALL LIGHT CONTROL RHEOSTAT






(a) Engage the 2 claws and install the light control rheostat.
23. INSTALL FRONT NO.2 SPEAKER Installation

24. INSTALL FRONT NO.2 SPEAKER
HINT: Use the same procedures for the RH side and the LH side.

25. INSTALL FRONT NO.2 SPEAKER (w/ Front Center Speaker) Installation

26. INSTALL INSTRUMENT PANEL NO.1 SPEAKER PANEL SUB-ASSEMBLY






(a) Engage the 2 clips and install the instrument panel No.1 speaker panel sub-assembly.
27. INSTALL INSTRUMENT PANEL NO.2 SPEAKER PANEL SUB-ASSEMBLY
HINT: Use the same procedures for the instrument panel No.2 speaker panel sub-assembly and the instrument panel No.1 speaker panel sub-assembly.

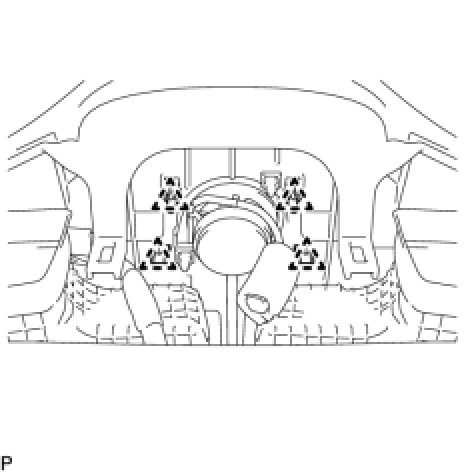

28. INSTALL SPEAKER HOLE NO.1 COVER (w/ Mark Levinson Speaker System)






(a) Engage the 4 clips and install the speaker hole No.1 cover.
