Meter / Gauge System









METER: METER / GAUGE SYSTEM:

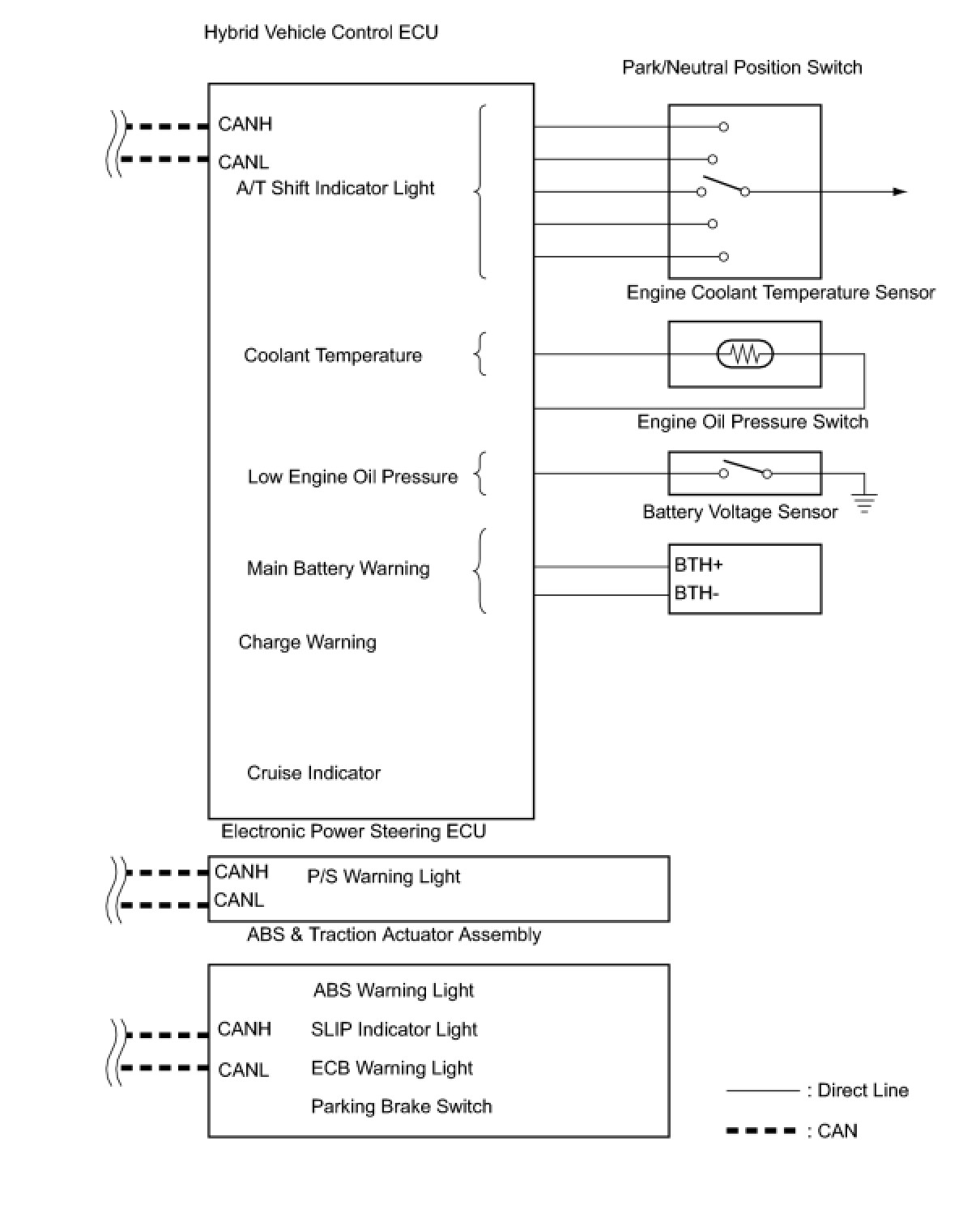

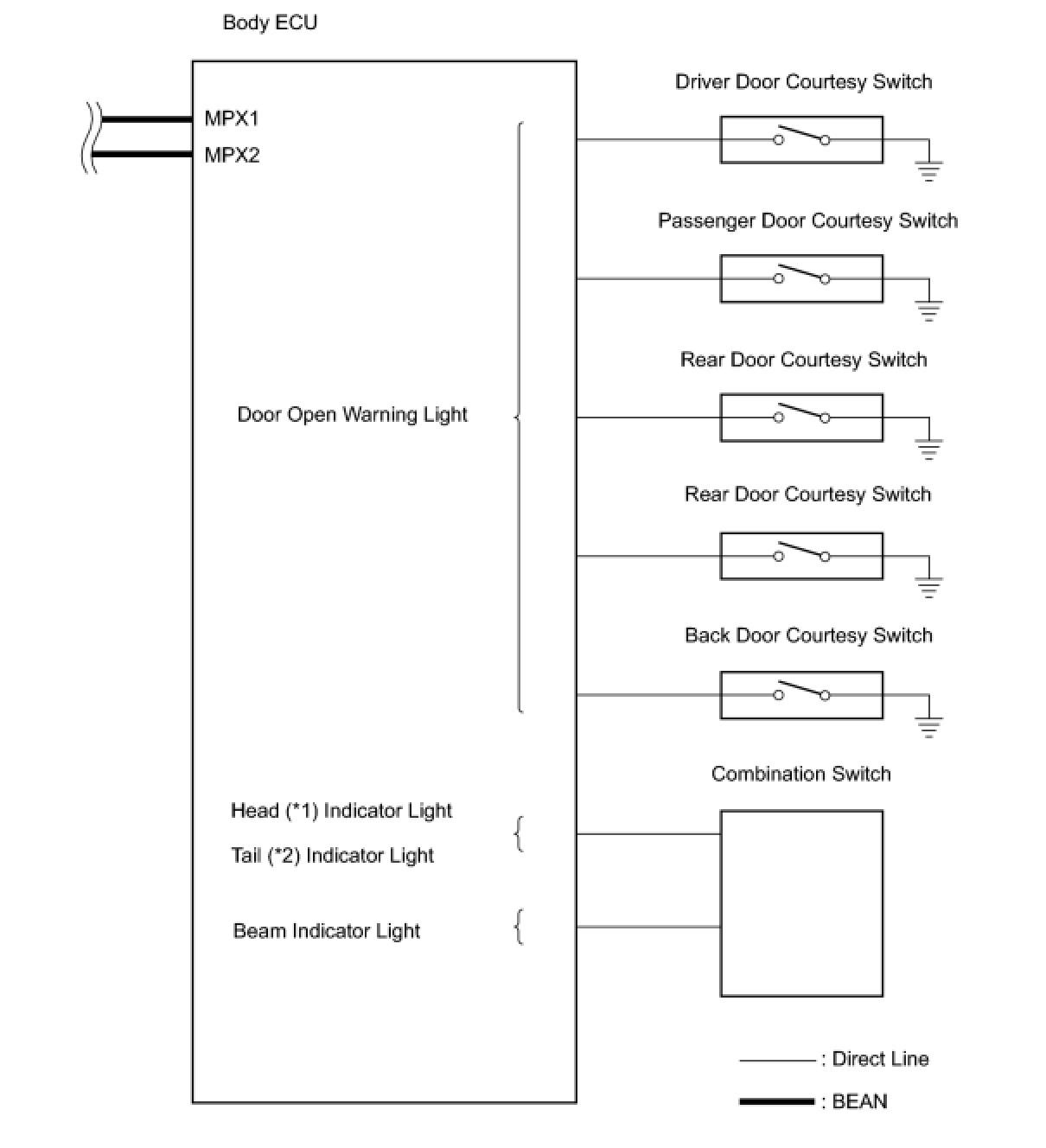

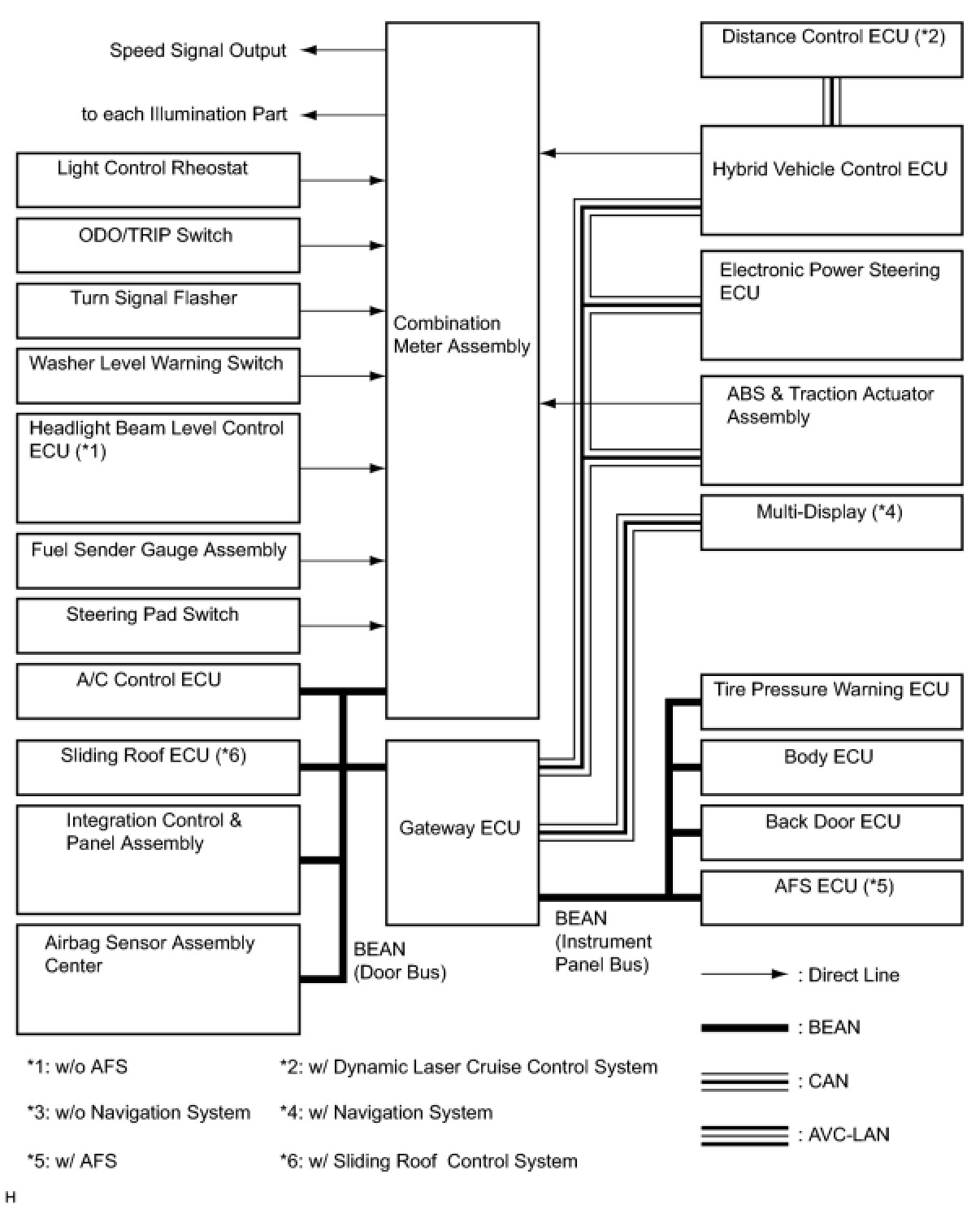

SYSTEM DIAGRAM

















GATEWAY:





HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

BEAN:





CAN:

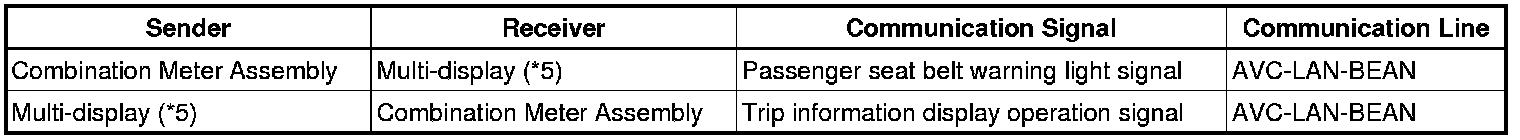

AVC-LAN:

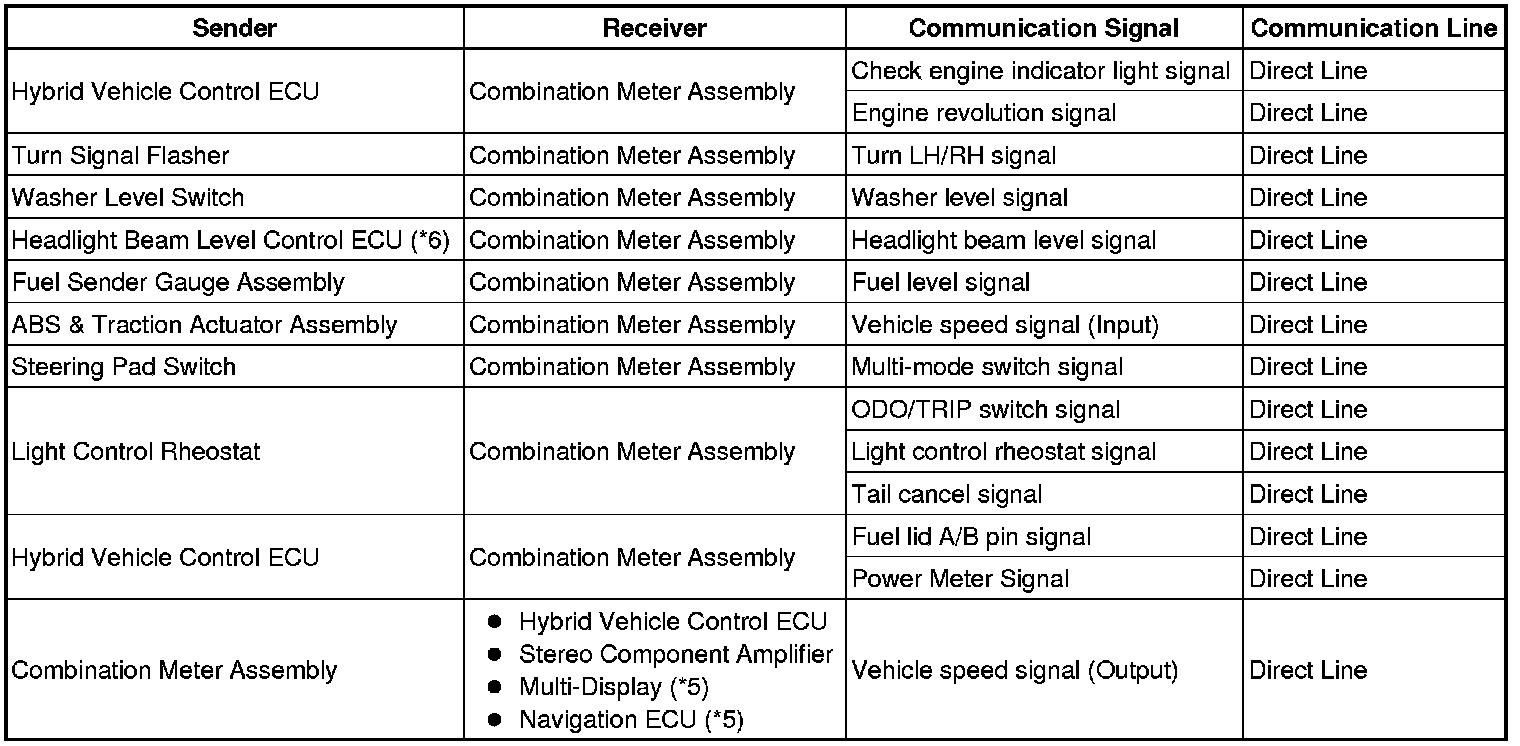

Direct Line:





*1: w/ Sliding Roof Control System
*2: w/ Adaptive Front-light System
*3: w/o Navigation System
*4: w/ Dynamic Laser Cruise Control System
*5: w/ Navigation System
*6: w/o Adaptive Front-light System


SYSTEM DESCRIPTION

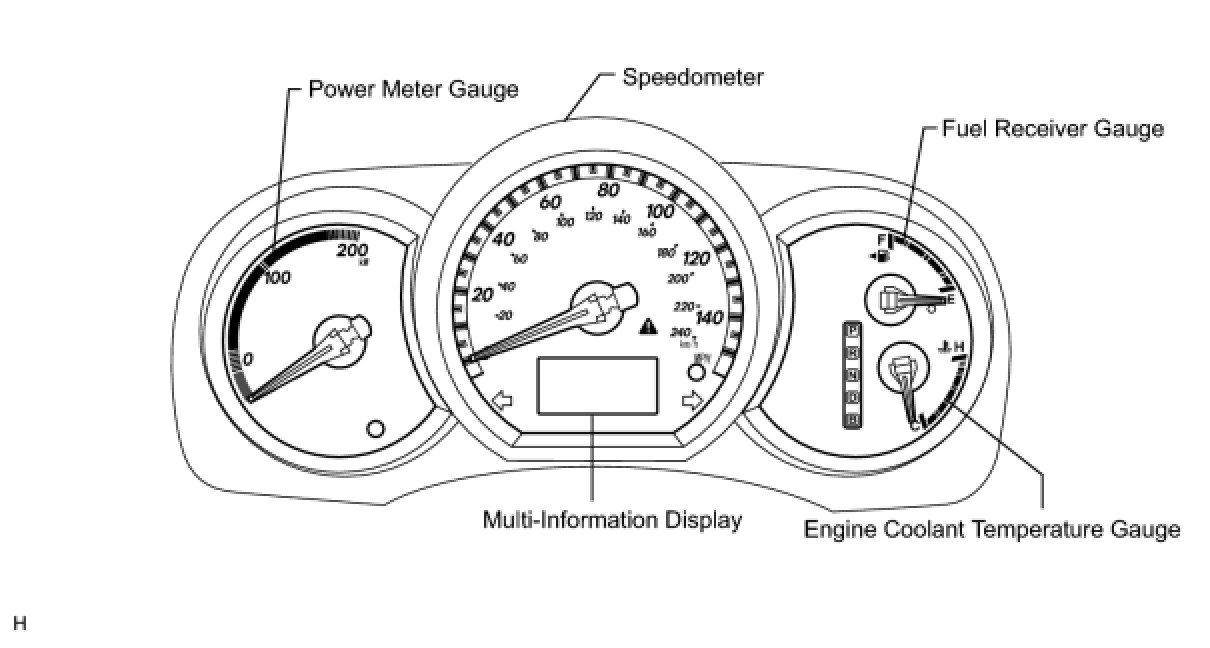

1. METER GAUGE

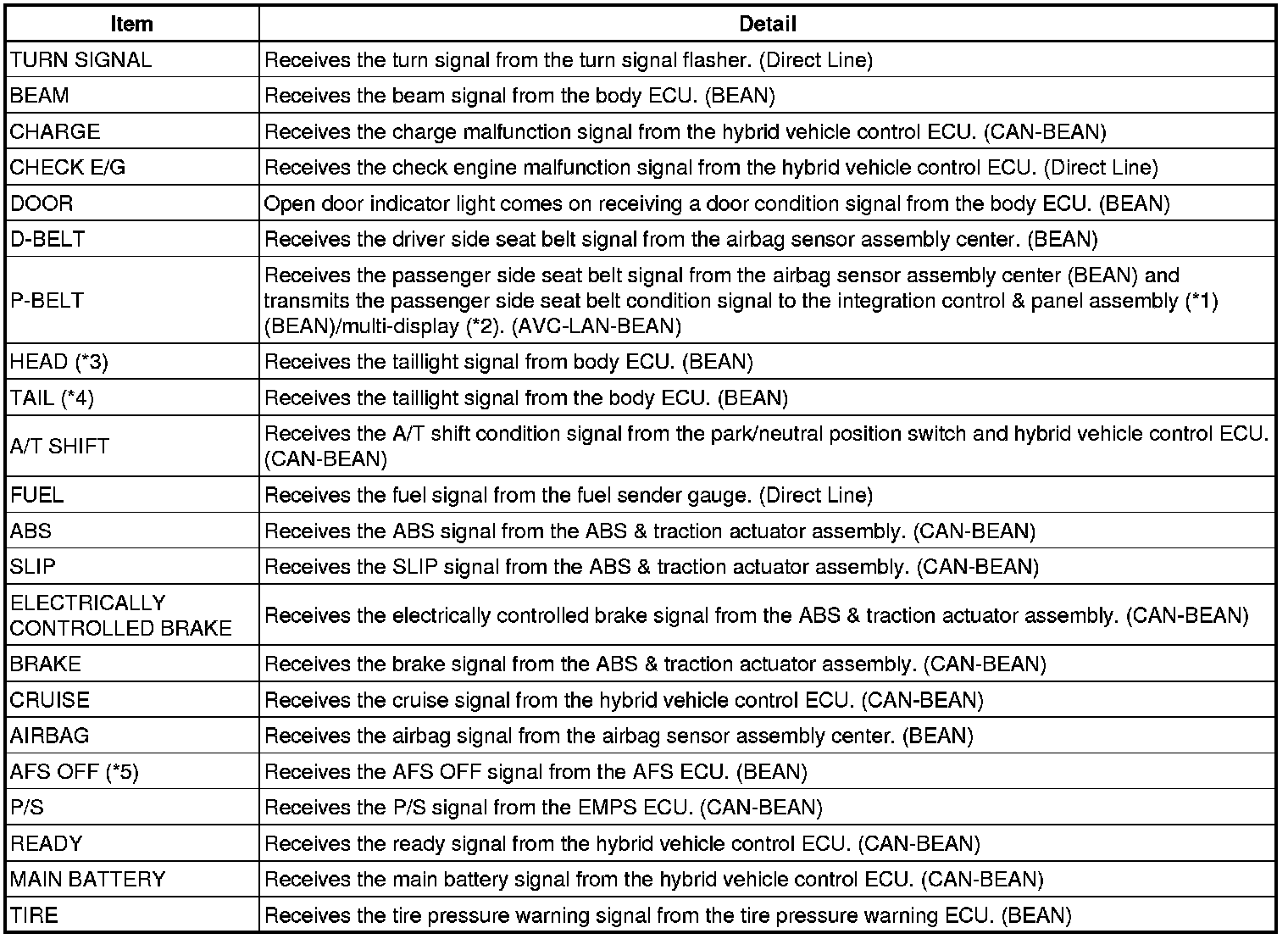

WARNING/INDICATOR





HINT:
- The multi-information display has been located in the center of the combination meter assembly.
- The display shows a message or animation for each of the functions described in the table below.

MULTI-INFORMATION DISPLAY





*1: w/o Navigation System
*2: w/ Navigation System
*3: U.S.A. only
*4: Except U.S.A.
*5: w/ AFS
*6: w/ Dynamic Laser Cruise Control System

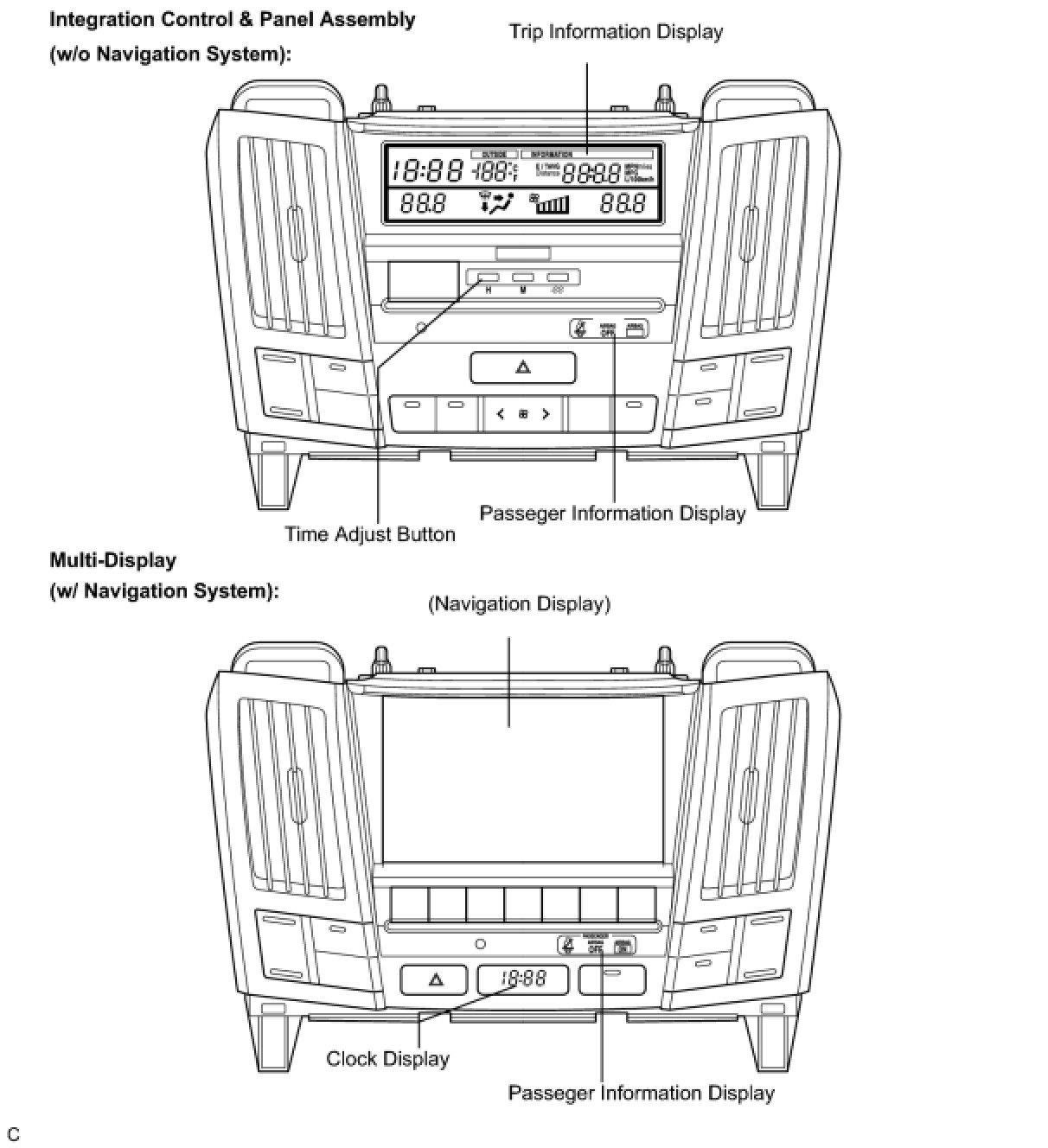

2. INTEGRATION CONTROL & PANEL ASSEMBLY (W/O NAVIGATION SYSTEM)/MULTI-DISPLAY (W/ NAVIGATION SYSTEM)





HINT:
- Integration control & panel assembly (*1) consists of three parts (driver monitor display, passenger information display, and heater control panel). These areas display the contents given in the table below.
- Multi-display assembly (*2) consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.





*1: w/o Navigation System
*2: w/ Navigation System
3. Multi-Information Display Flow Chart





*1: w/ Sliding Roof Control System
*2: The display immediately before turning the ignition switch off will appear when the ignition switch is turned to the ON position.
*3: The display is switched in order shown above by pushing the "DISP" switch on the steering pad switch.
*4: If the abnormal condition is detected, the warning display appears immediately. (w/ buzzer)
*5: U.S.A. only

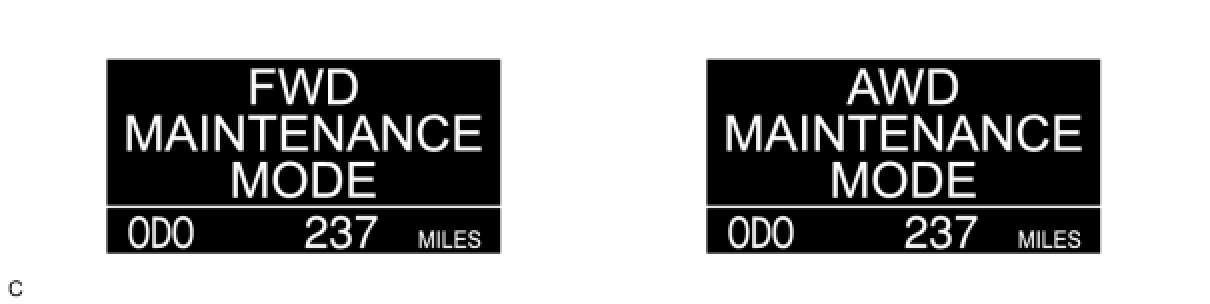

4. MAINTENANCE MODE





HINT: MAINTENANCE MODE is the secret mode Service Precautions.

5. DIAGNOSIS SYSTEM





HINT:

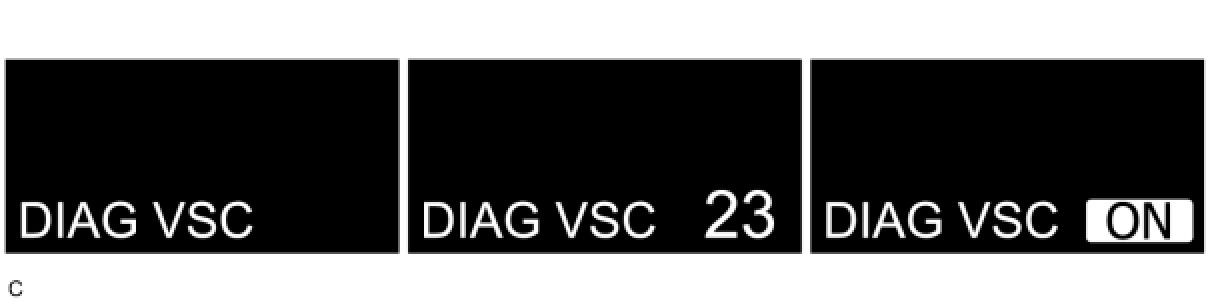

- The multi-information display shows "DIAG" when the ignition switch is turned to the ON position Test Mode Procedure.
- Diagnosis checks for the VSC system can be done by using the displayed items is in the multi-information display.
