Meter / Gauge System

METER: METER / GAUGE SYSTEM:

DATA LIST / ACTIVE TEST

1. Data List
Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
(a) Warm up the engine.
(b) Ignition switch off.
(c) Connect Techstream to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Turn the tester on.
(f) Enter the following menus:
(1) for Combination Meter: Body Electrical / Combination Meter / Data List.
(2) for ABS/TRAC/VSC: Chassis / ABS/VSC/TRAC / Data List.
(3) for HV ECU: Powertrain / Engine and ECT / Data List.
(4) for Main Body: Body Electrical / Main Body / Data List.
(g) Check values by referring to the table below.

Combination Meter:

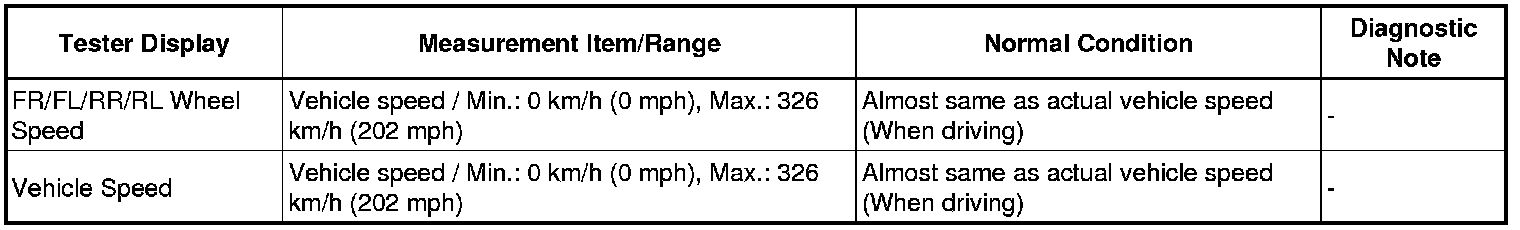

ABS/VSC/TRAC:





HV ECU:

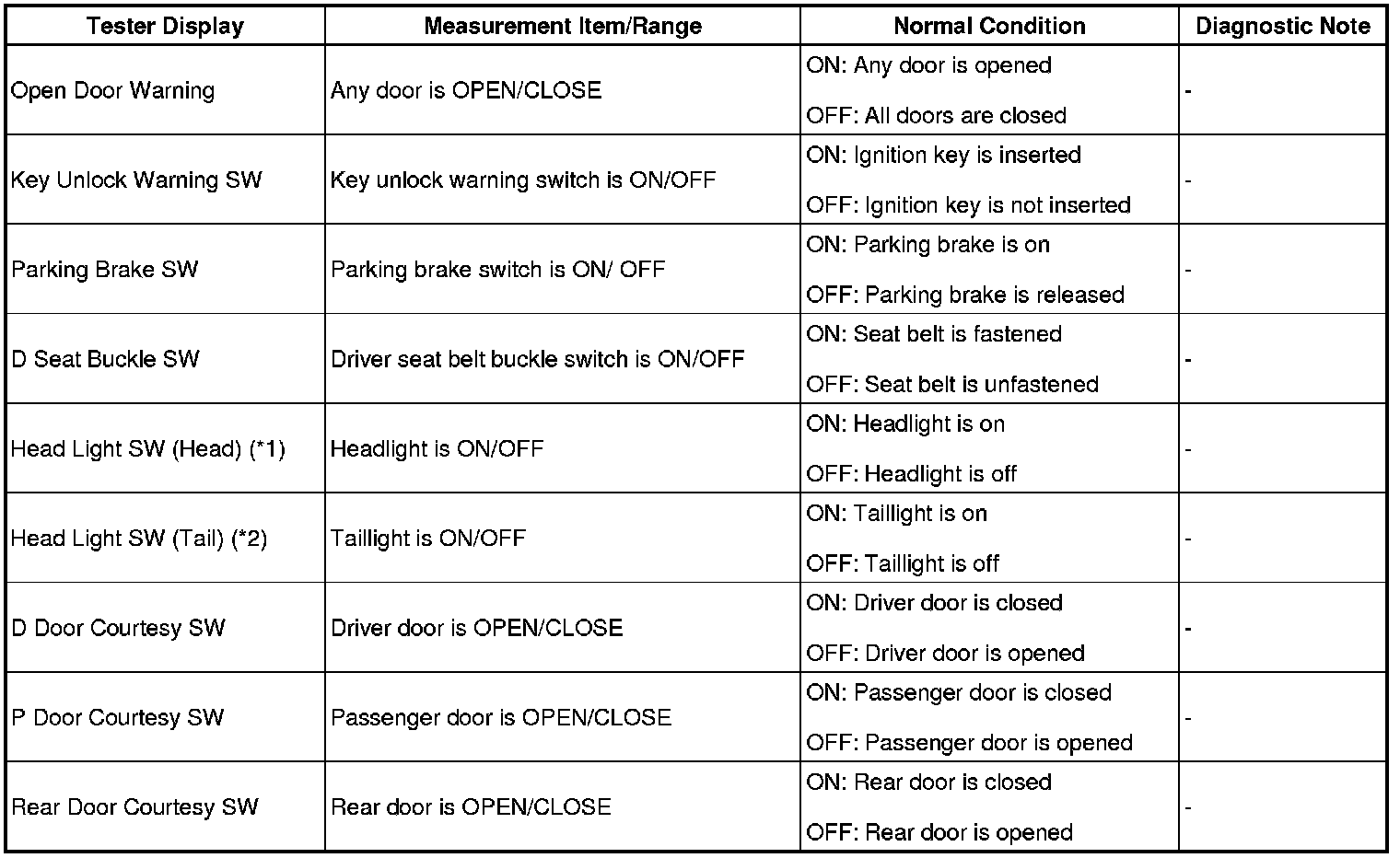

Main Body (Multiplex Network Body ECU):





*1: U.S.A.
*2: Except U.S.A.
2. Active Test
Using Techstream to perform Active Tests allows the relay, actuator, and other items to operate without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Test early in troubleshooting is one way to save diagnostic time. Data List information can be display while performing Active Test.
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.
(e) Check the operation by referring to the table below.

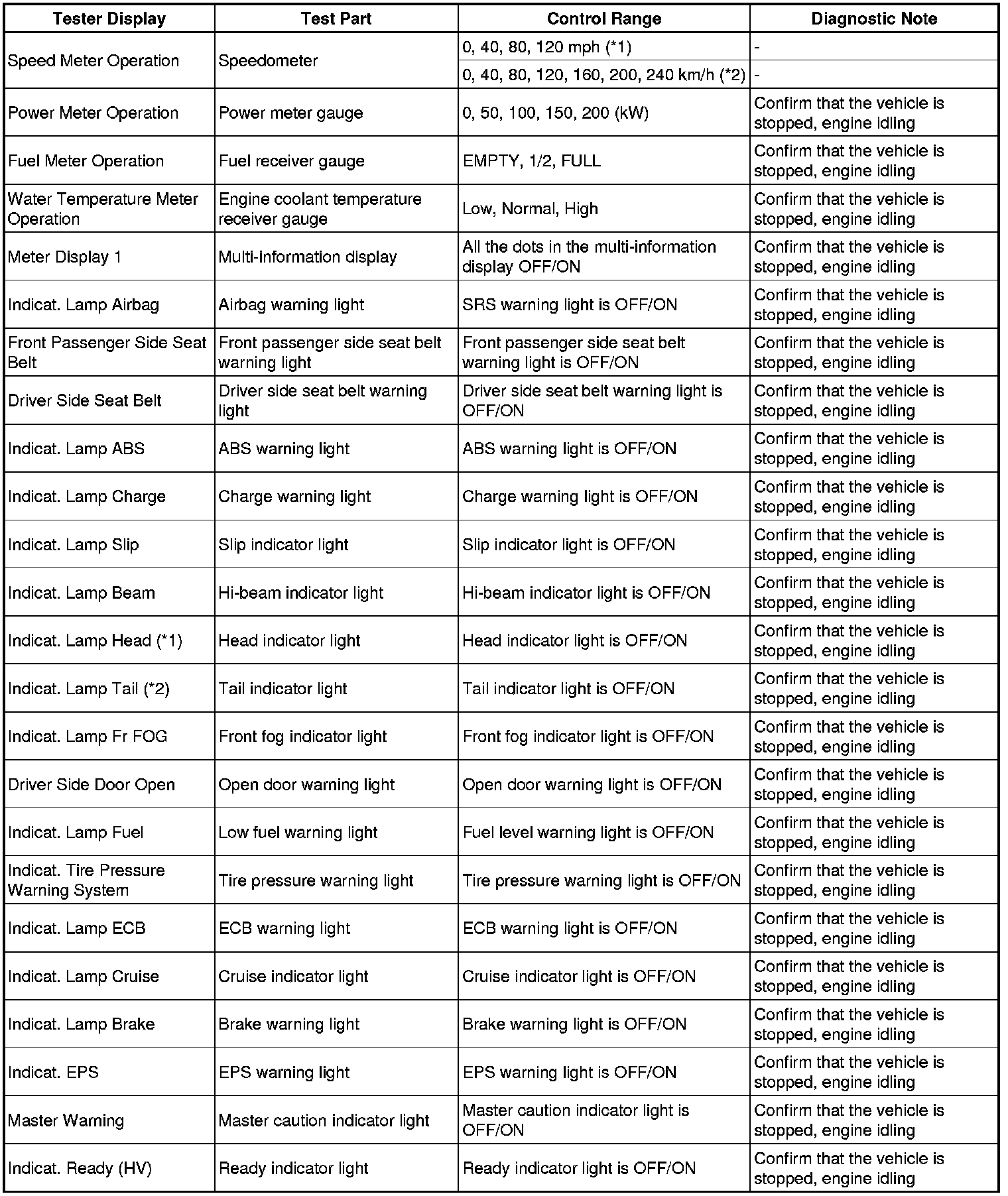

Combination Meter:





*1: U.S.A.
*2: Except U.S.A.
