Disassembly

LIGHTING: BACK-UP LIGHT ASSEMBLY:

DISASSEMBLY

1. REMOVE BACK-UP LIGHT BULB

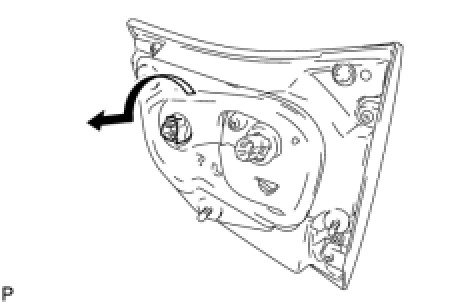

(a) Turn in the direction indicated by the arrow and remove the back-up light bulb and No.2 socket plug as a unit.
2. REMOVE NO.2 SOCKET PLUG
(a) Remove the back-up light bulb from the No.2 socket plug.
