Fuse: Application and ID




Fuse Layout and Amperage Ratings

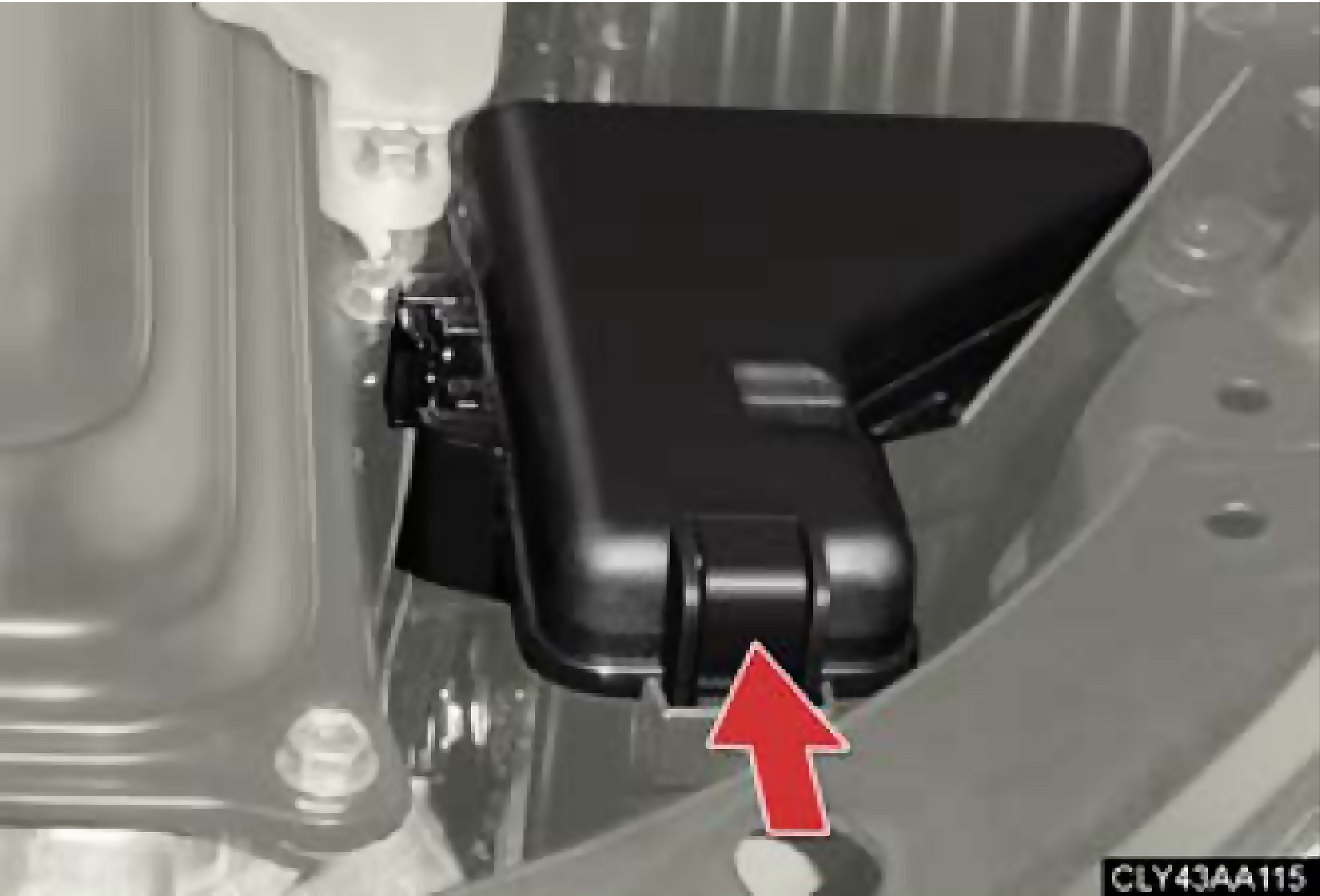

Fuse Block Location - Engine Compartment (Type A):

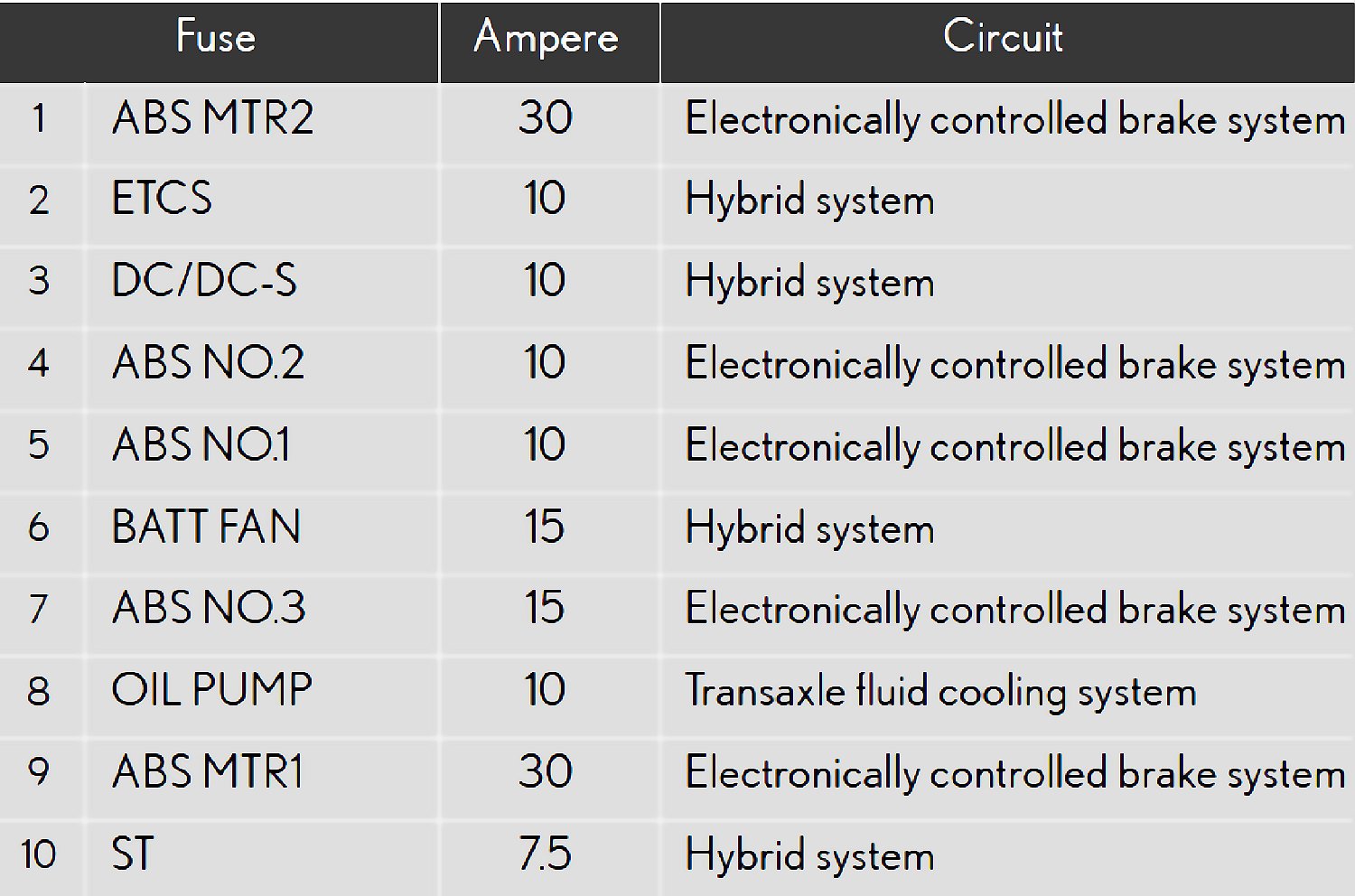

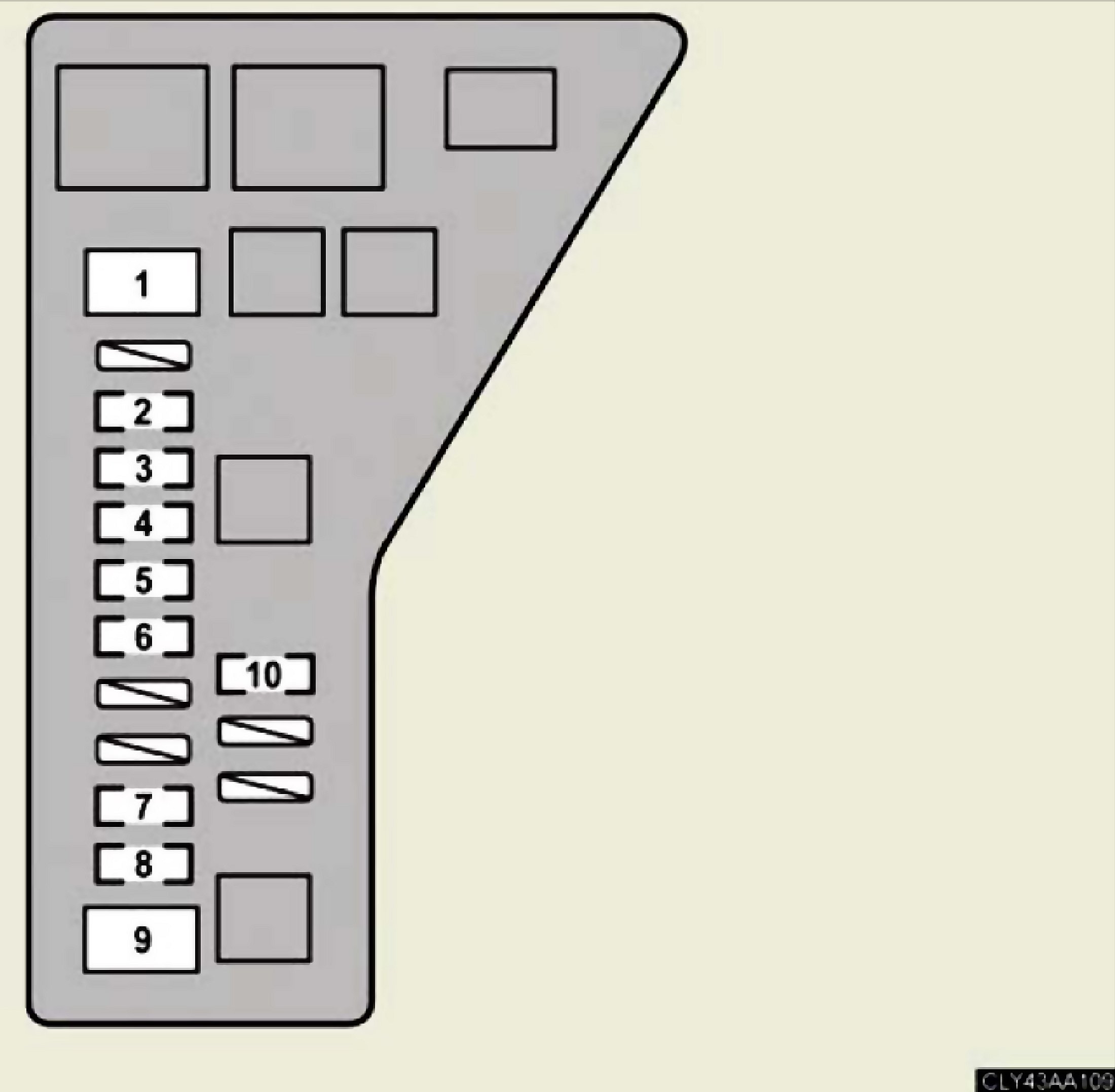

Fuse Location - Engine Compartment (Type A):

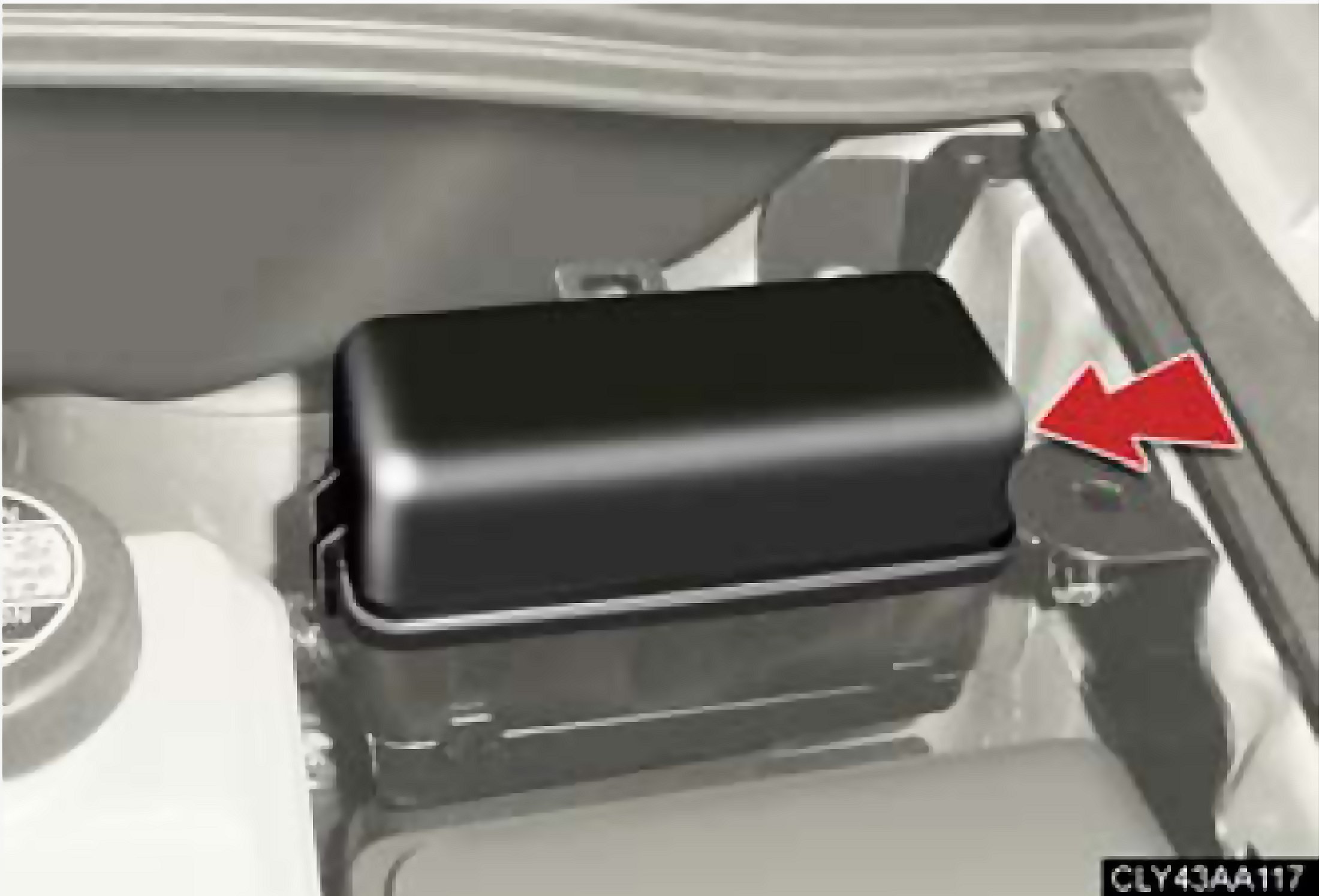

Fuse Block Location - Engine Compartment (Type B):

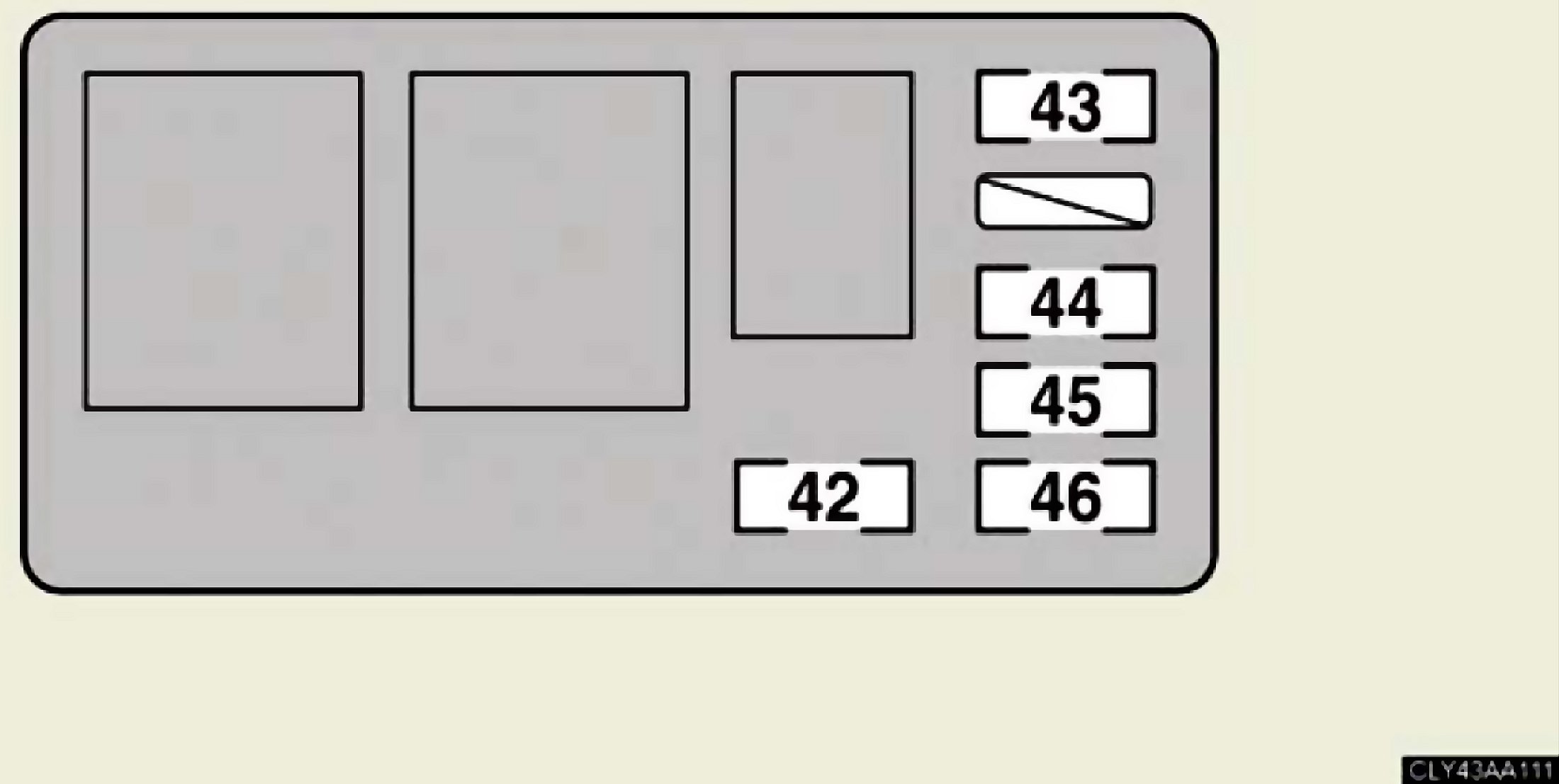

Fuse Location - Engine Compartment (Type B):


















Fuse Block Location - Engine Compartment (Type C):

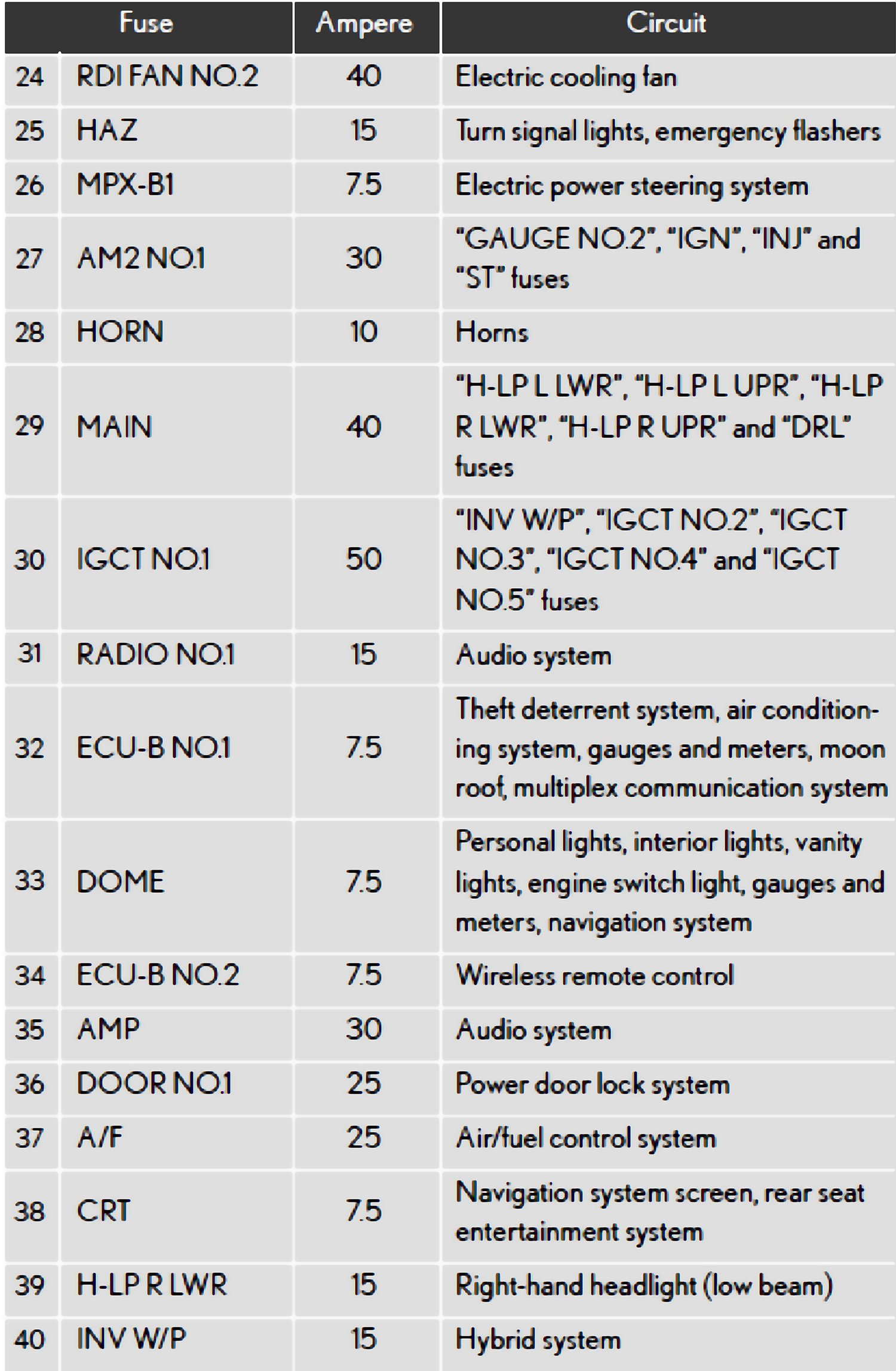

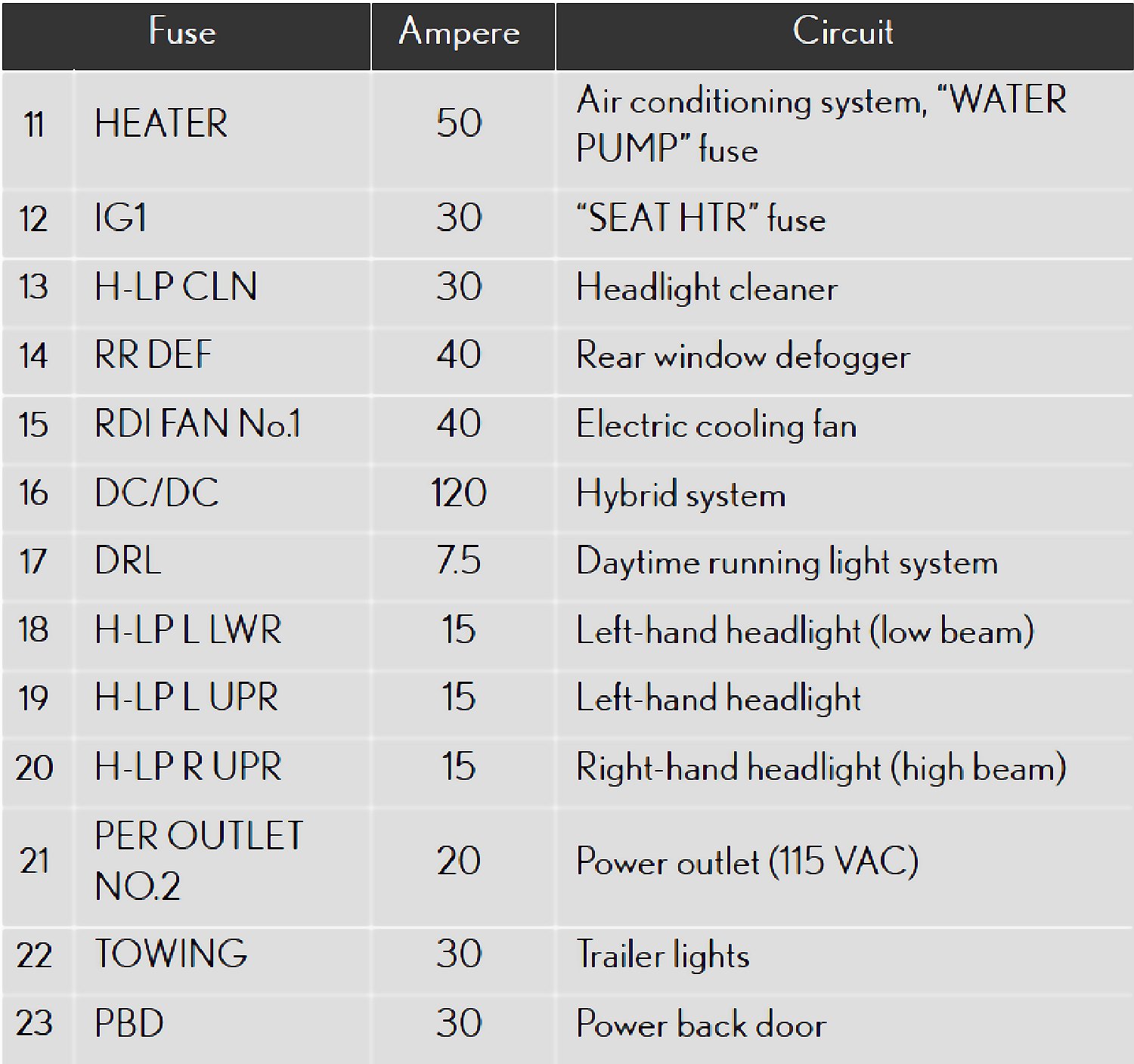

Fuse Location - Engine Compartment (Type C):

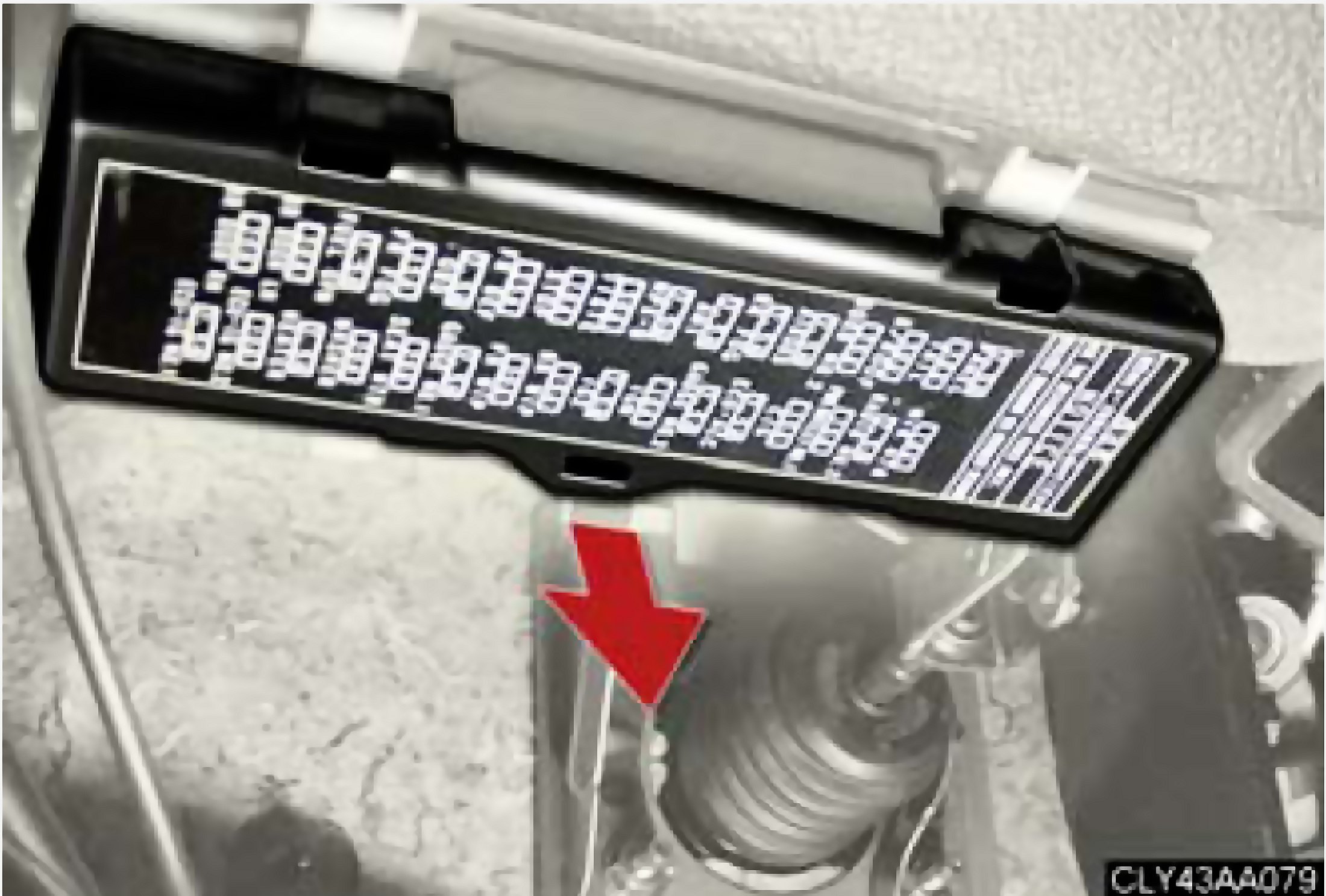

Fuse Block Location - Driver's Side Instrument Panel:

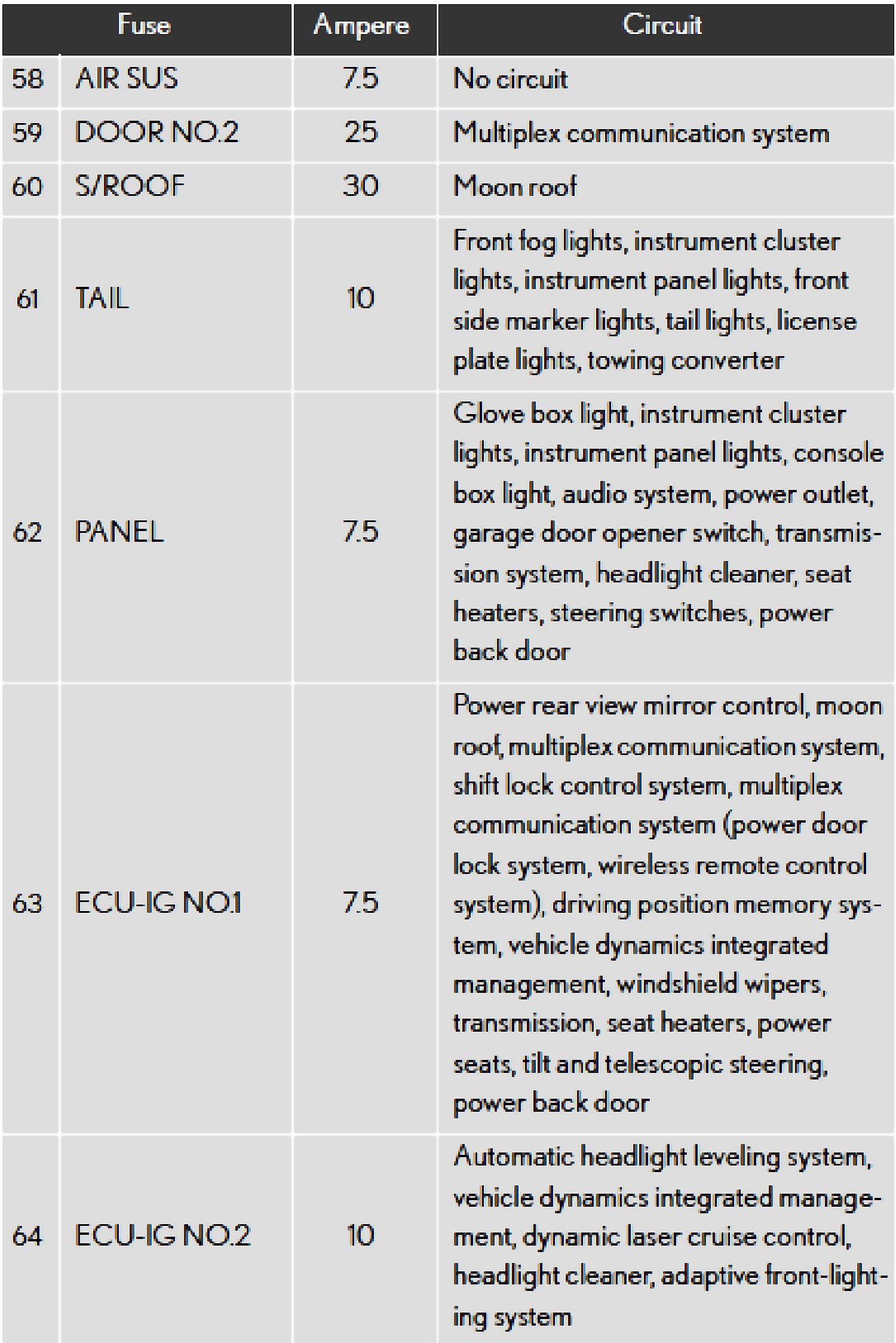

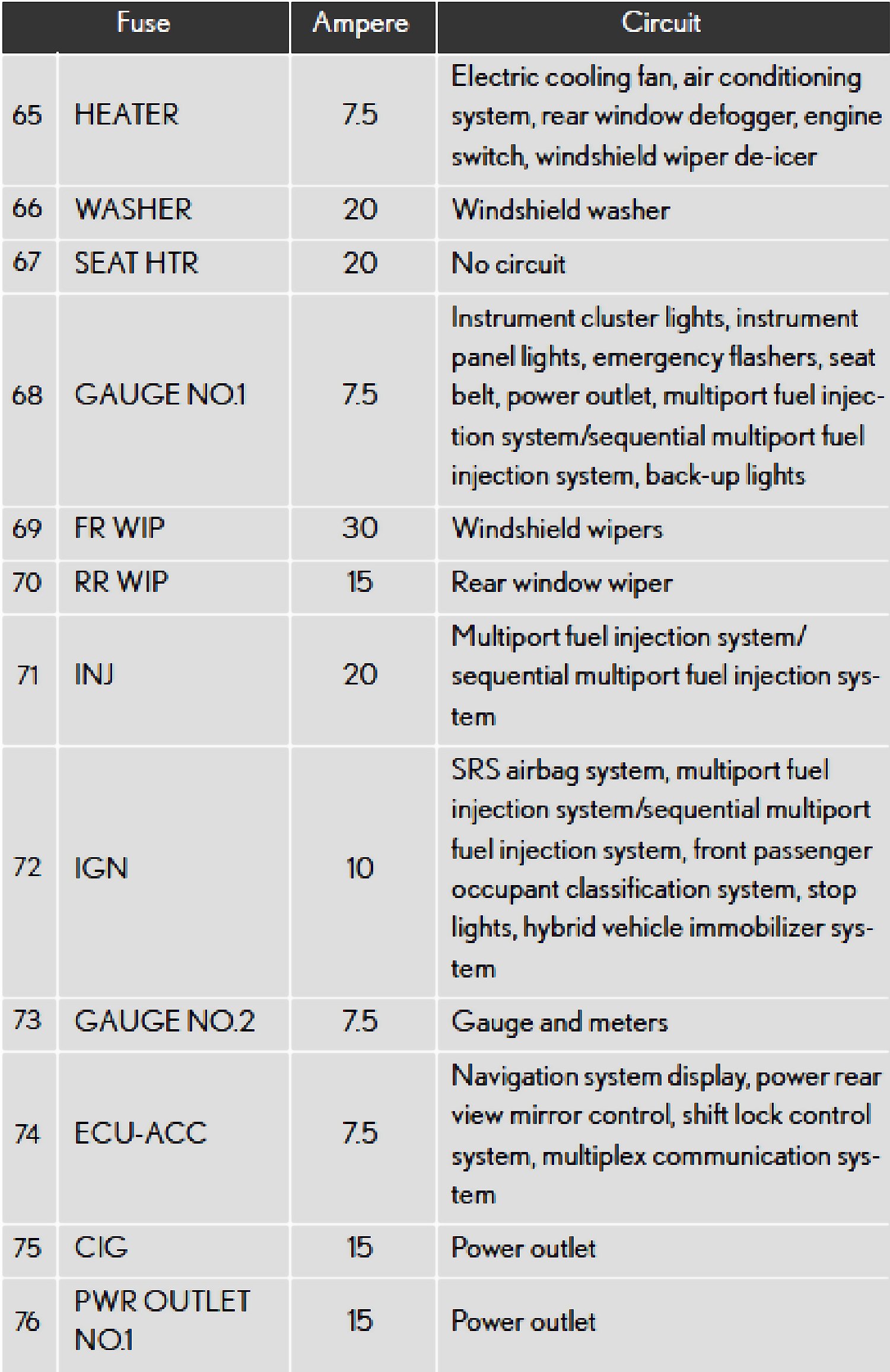

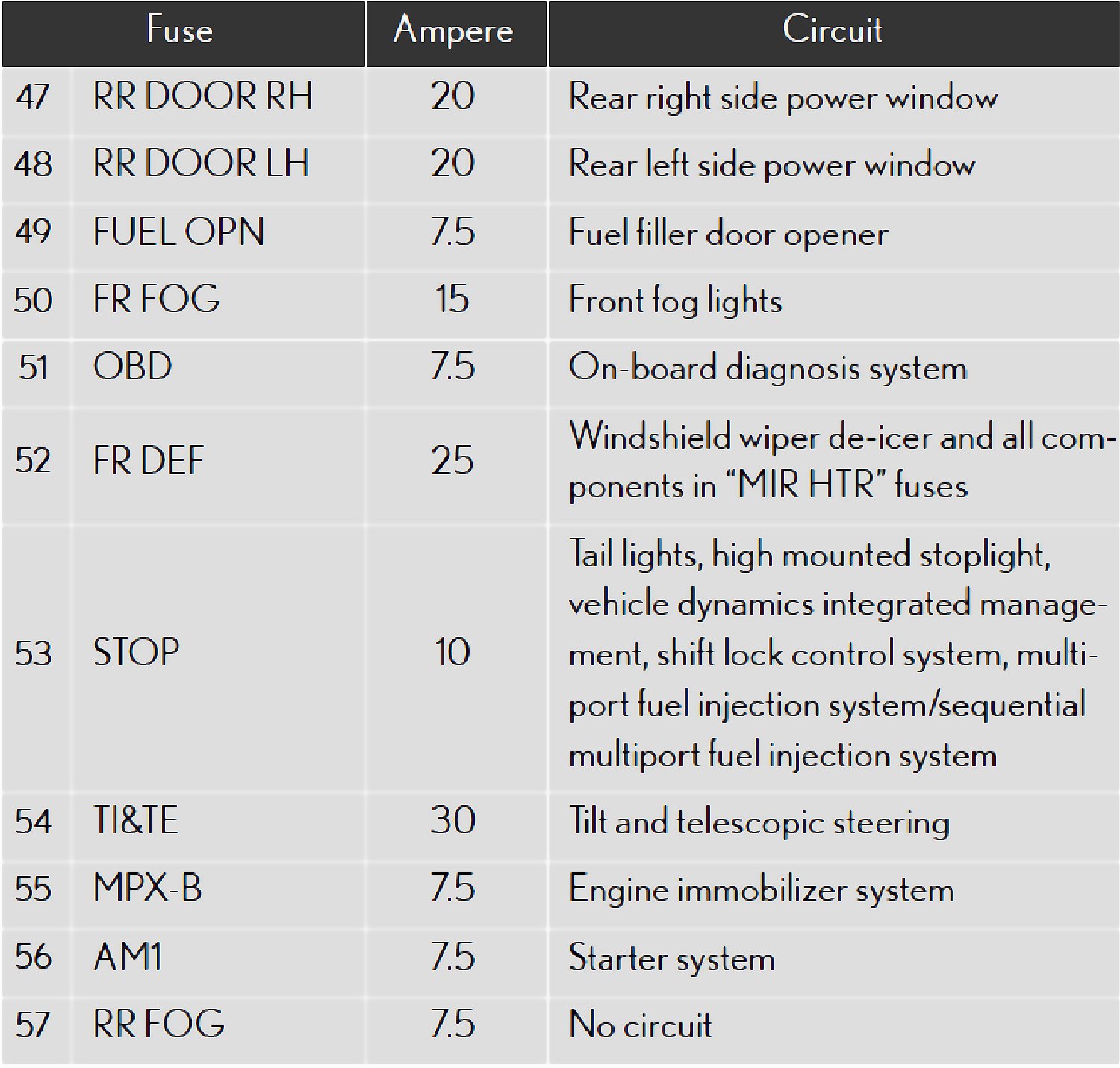

Fuse Location - Driver's Side Instrument Panel:
