Fuel Delivery and Air Induction: Description and Operation








3MZ-FE FUEL: FUEL SYSTEM:

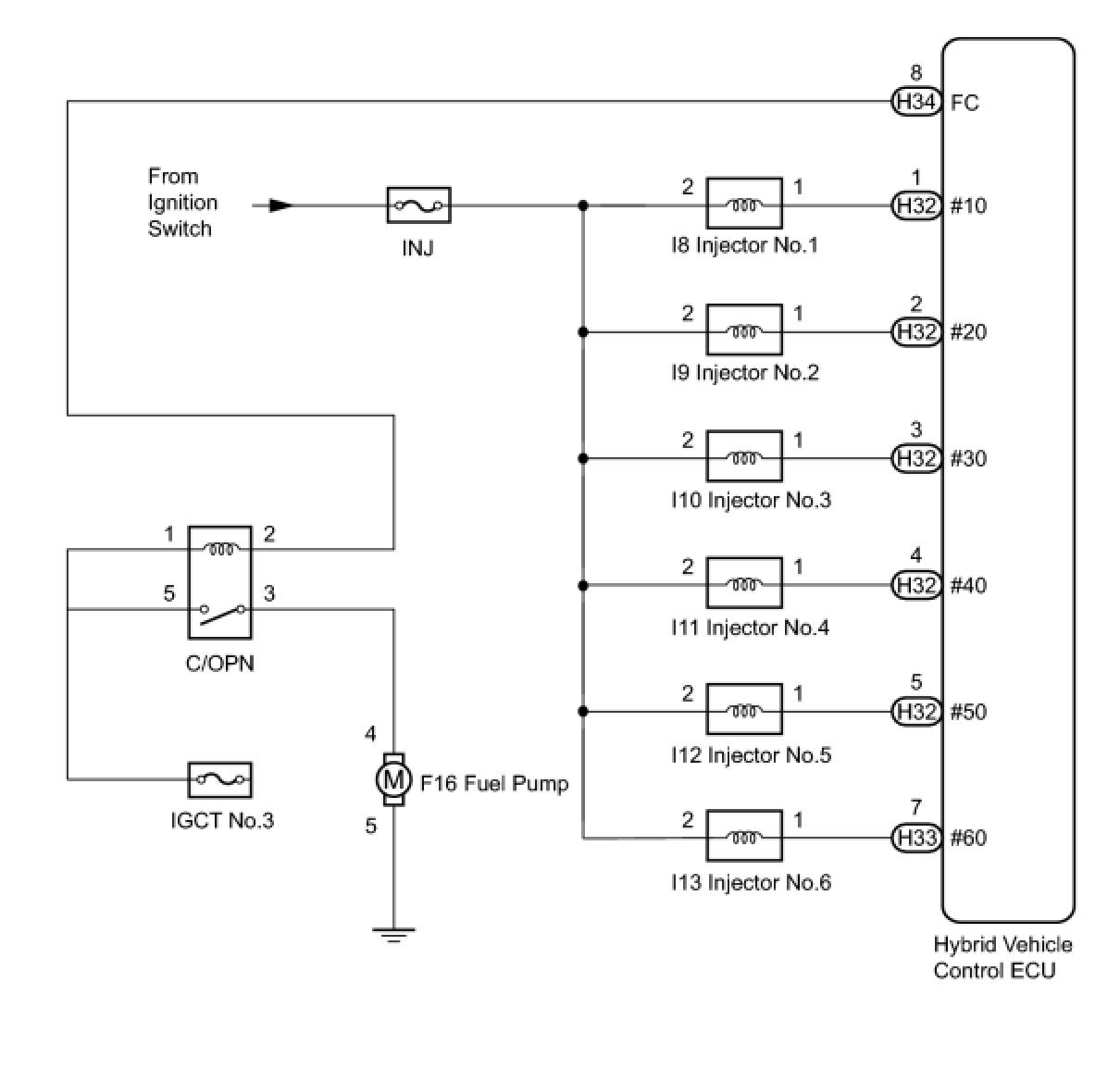

SYSTEM DIAGRAM
