Front Wiper and Washer [w/ Auto Wiper System]

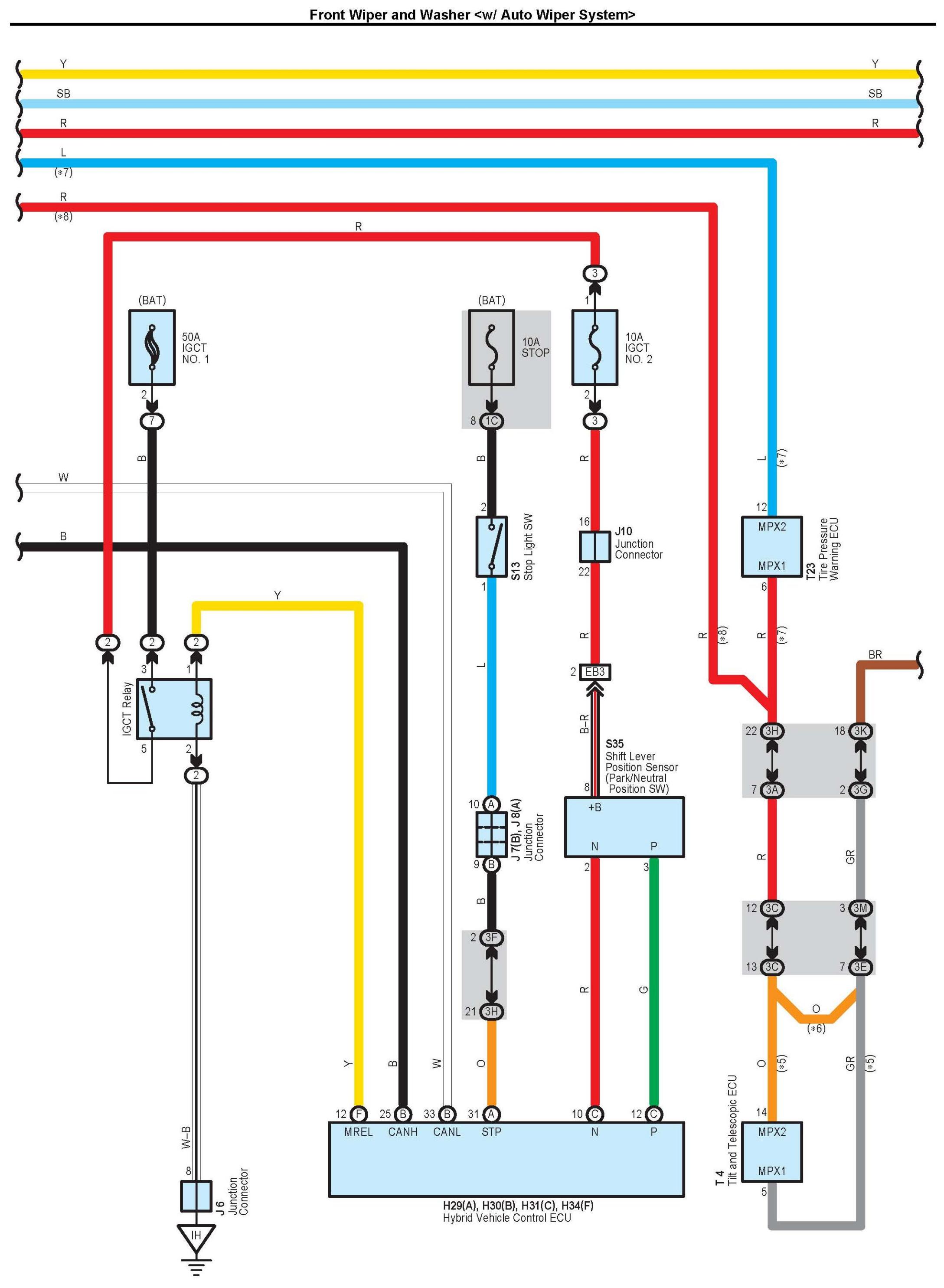

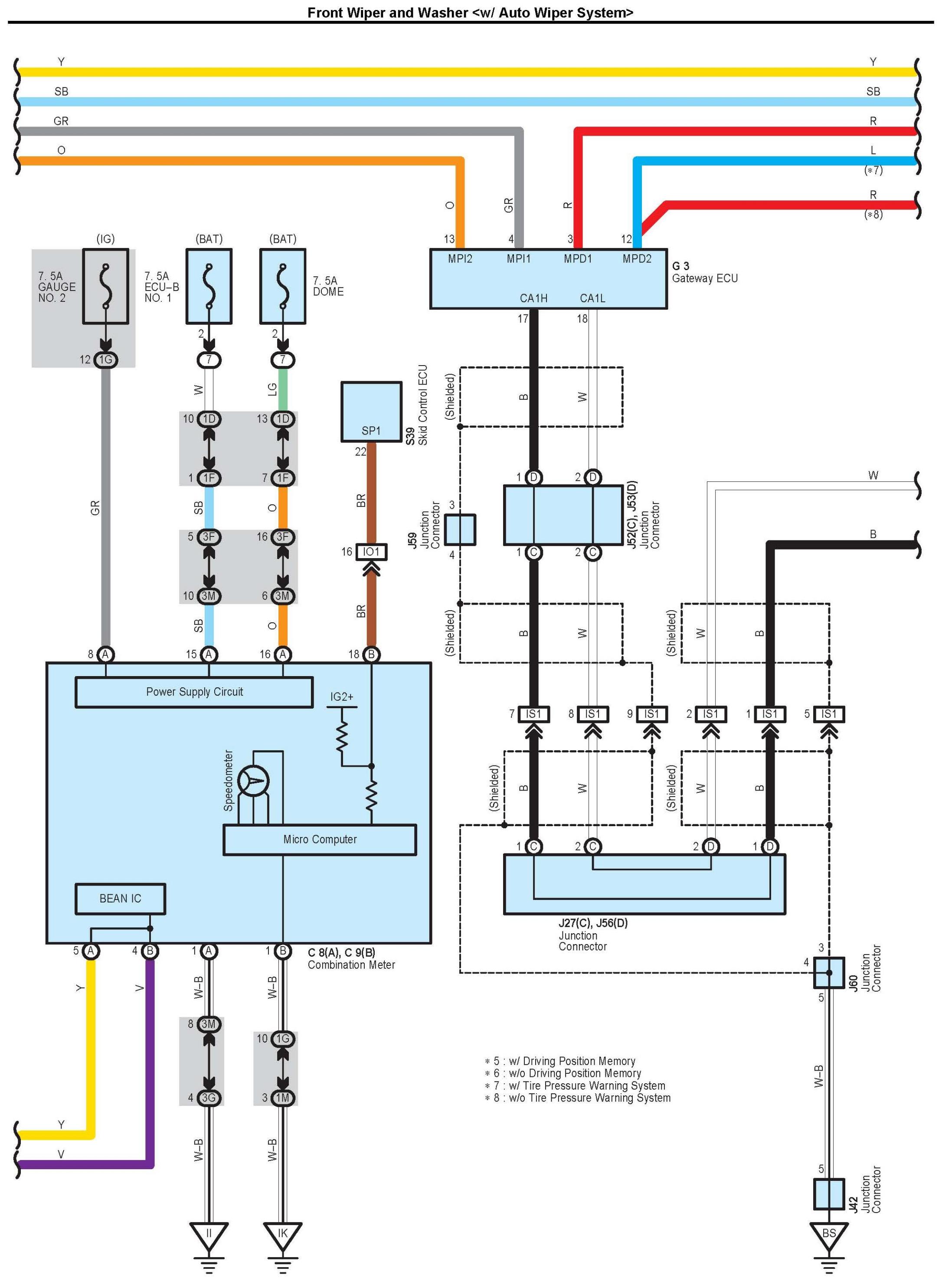

Front Wiper And Washer <w/ Auto Wiper System> Part 1:

Front Wiper And Washer <w/ Auto Wiper System> Part 2:

Front Wiper And Washer <w/ Auto Wiper System> Part 3:

Front Wiper And Washer <w/ Auto Wiper System> Part 4:

Front Wiper And Washer <w/ Auto Wiper System> Part 5:

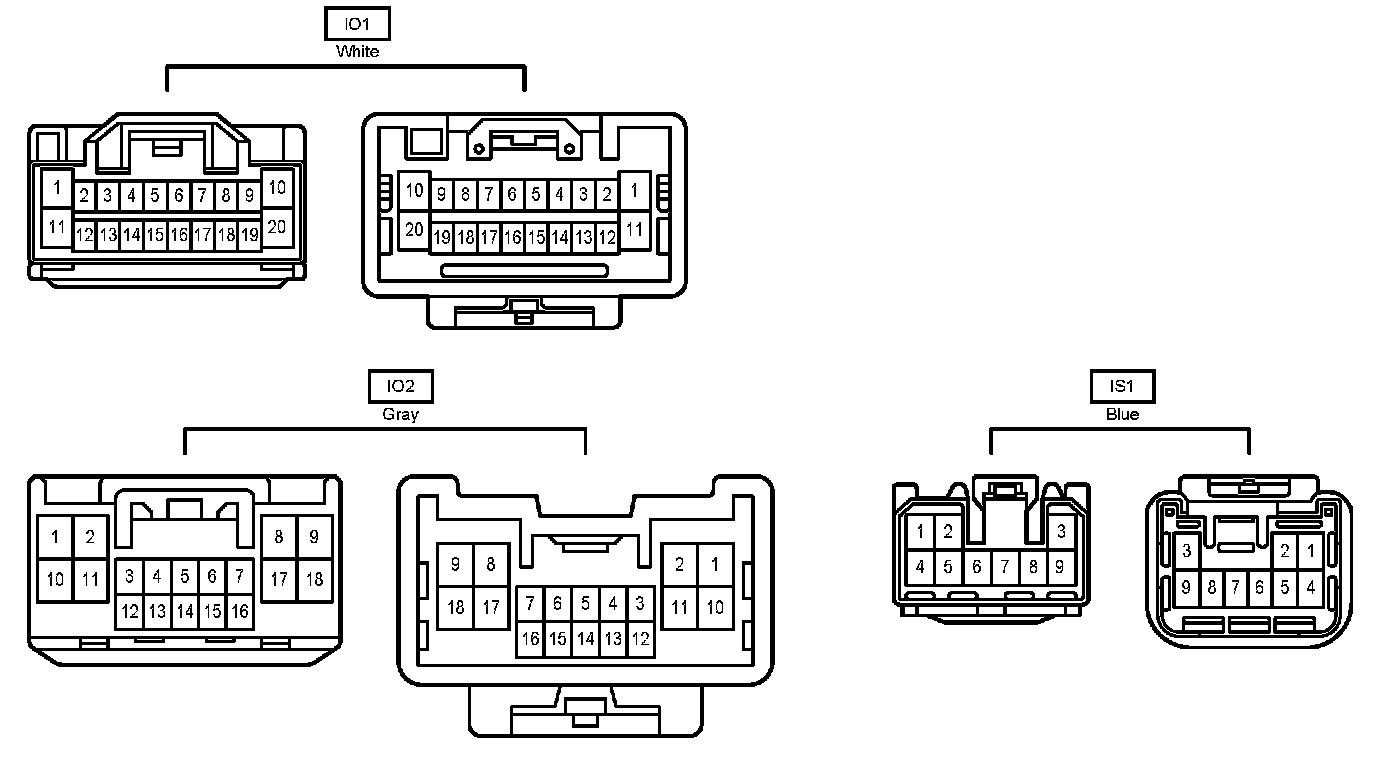

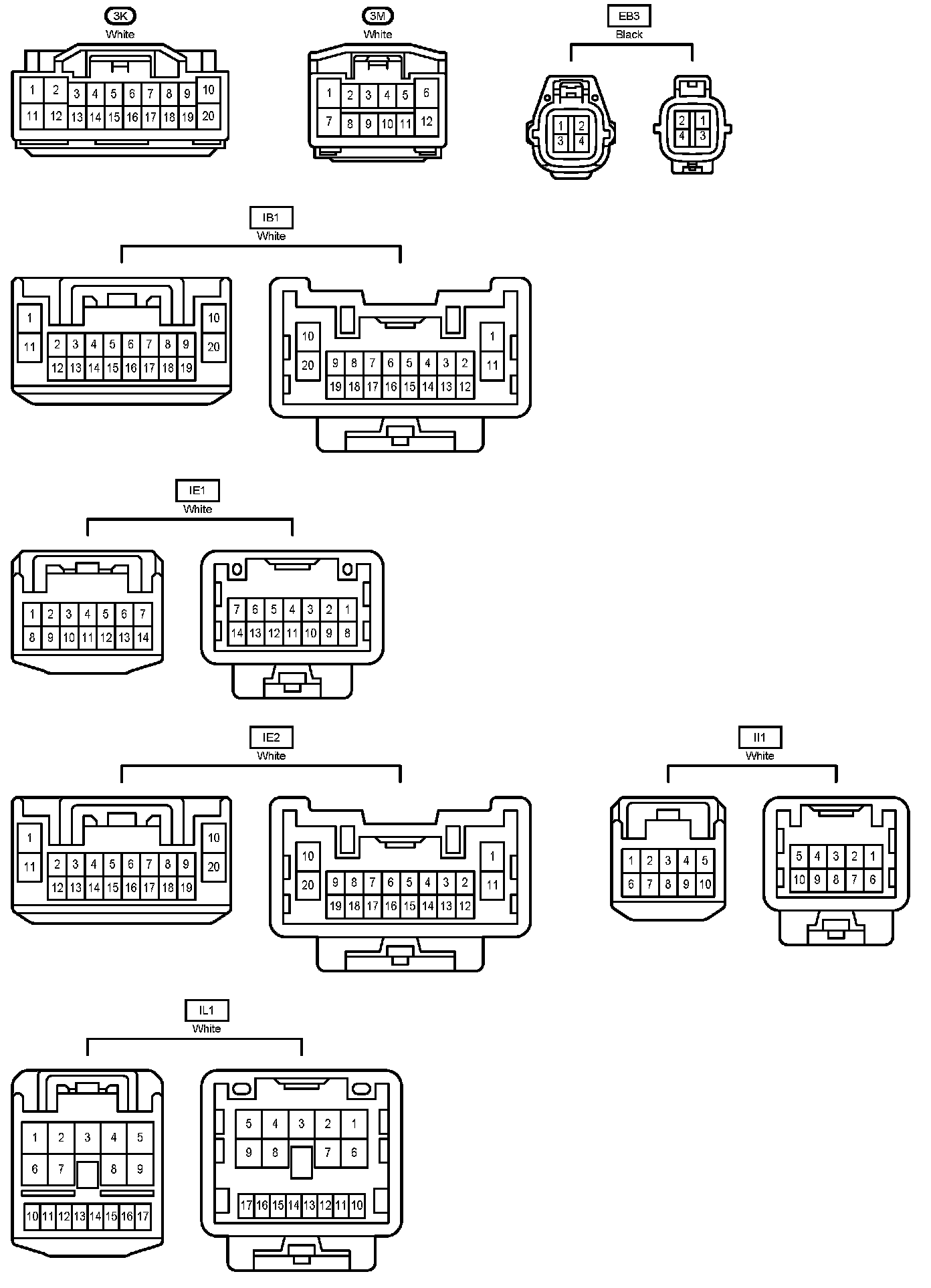

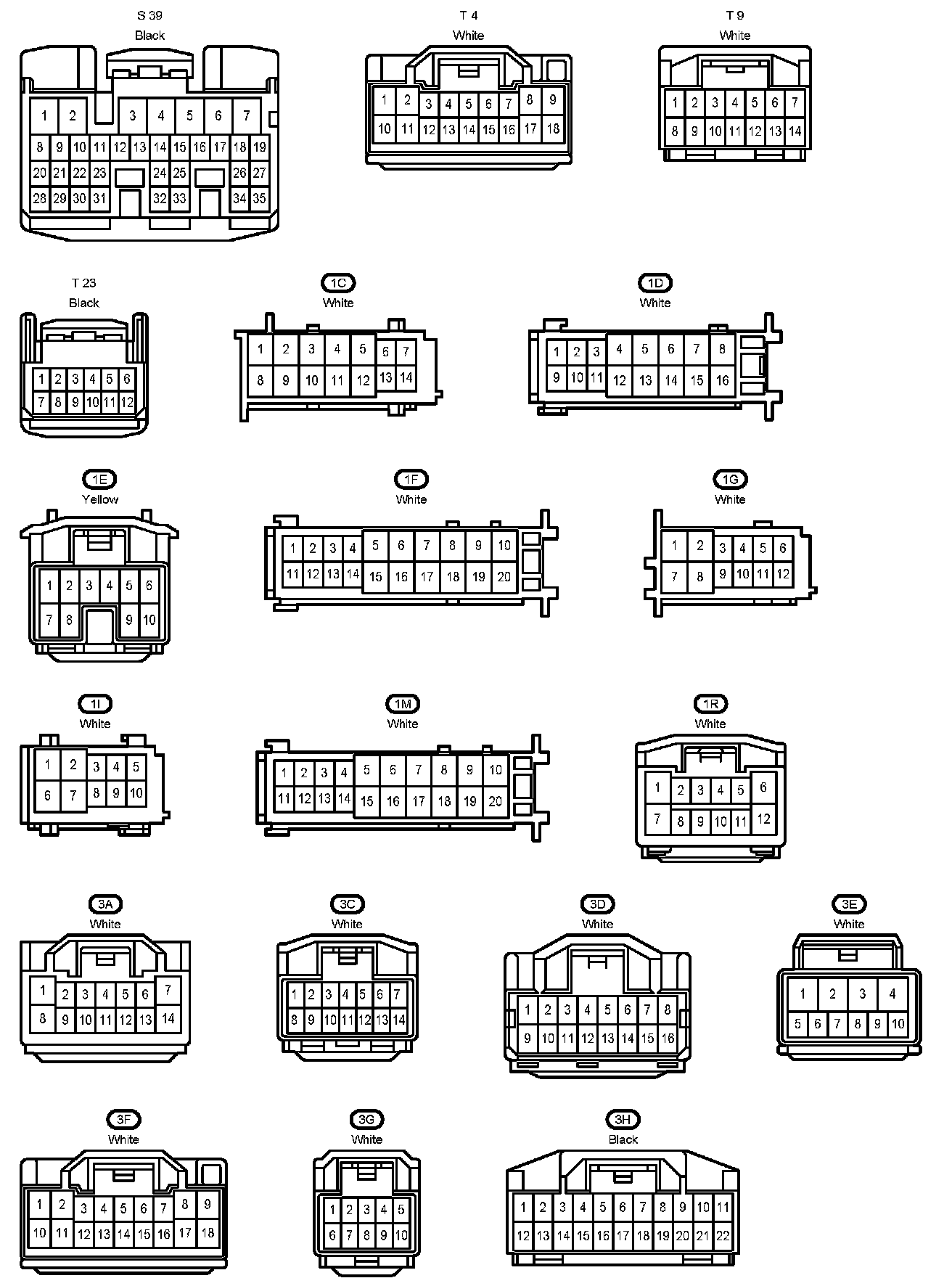

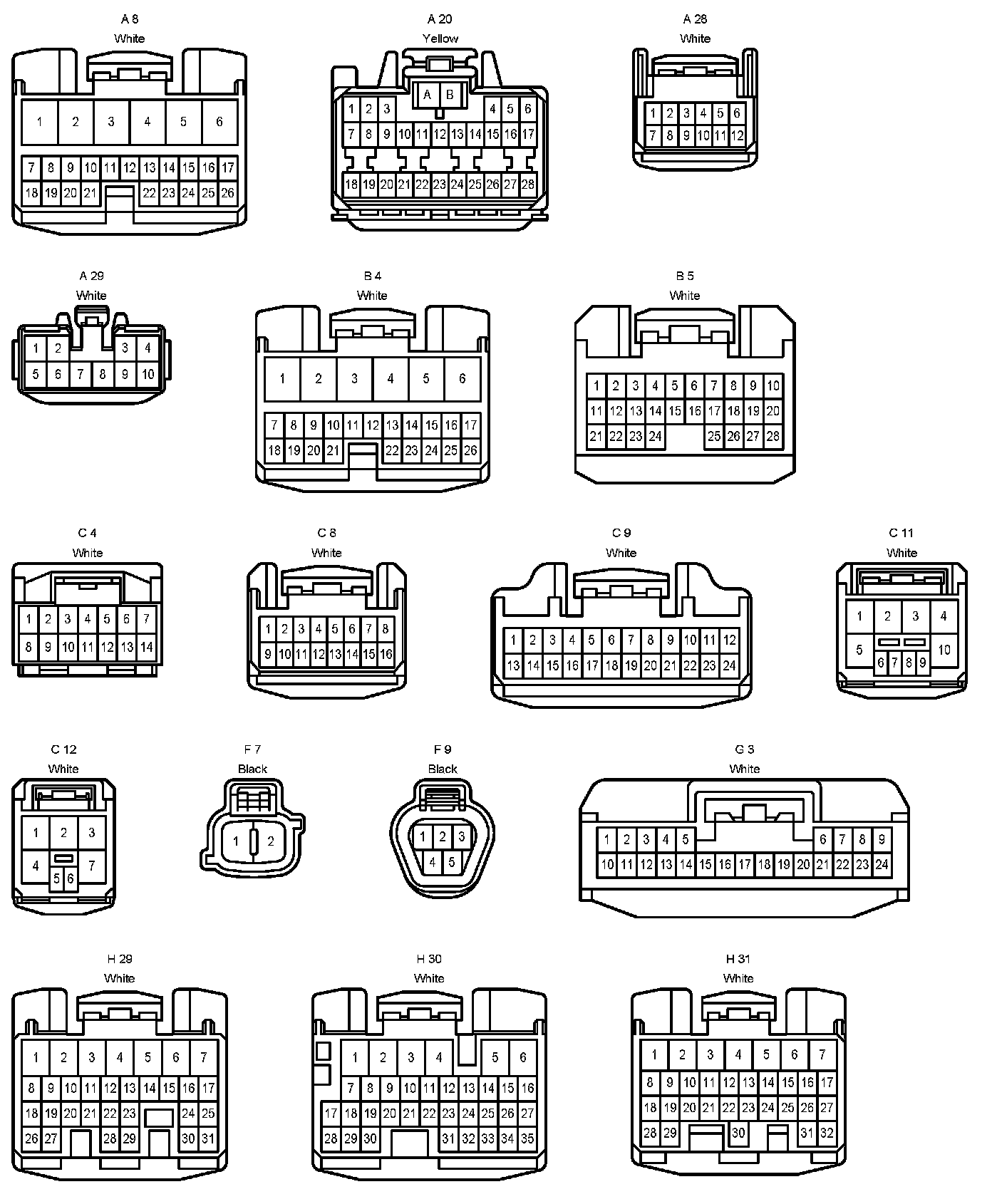

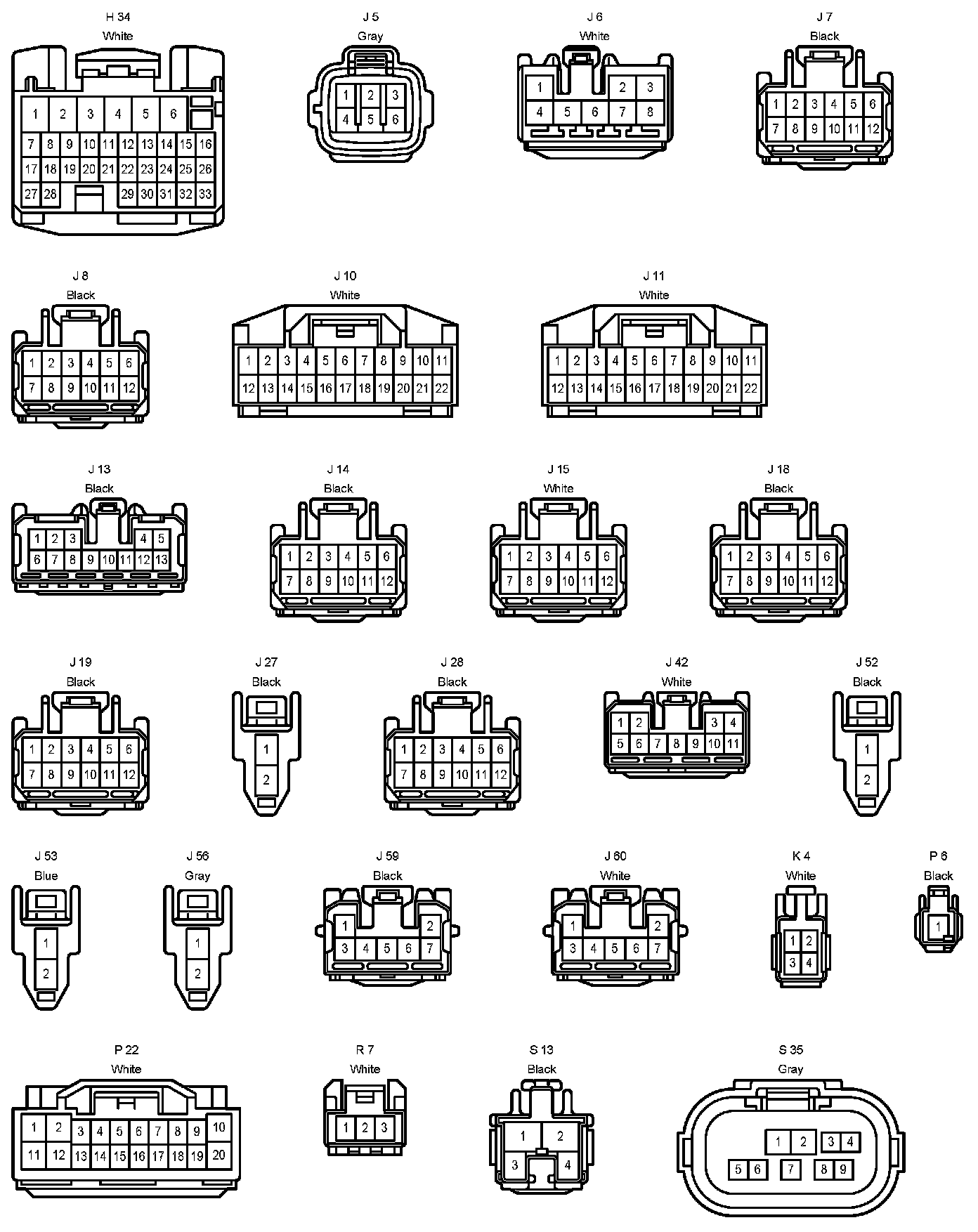

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
