Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

If malfunction code is displayed during the DTC check (sensor check), check the circuit listed for that code in the table below (Proceed to the page given for that circuit).

DTC 11-22:

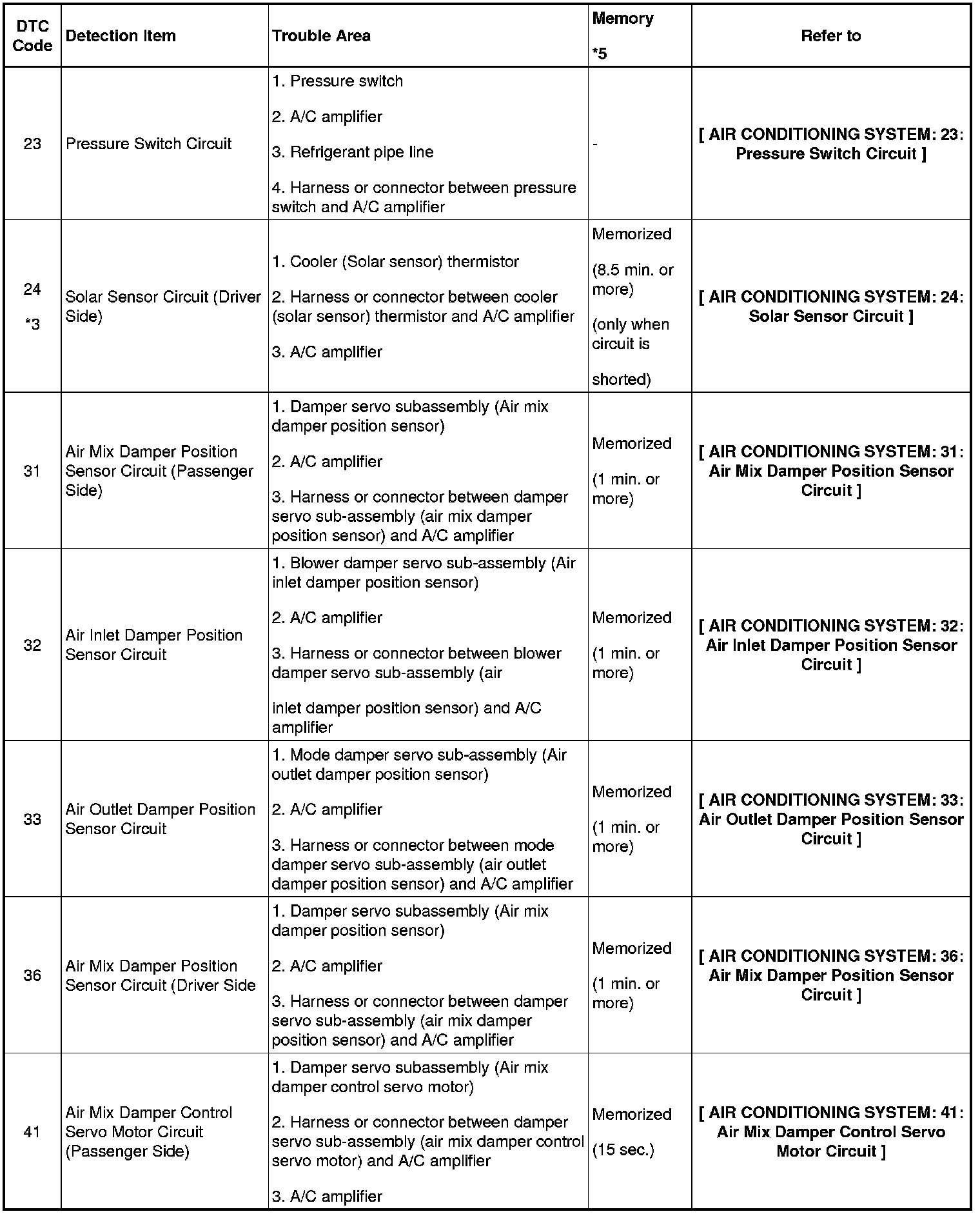

DTC 23-41:

DTC 42-46:

HINT:
- *1: If the room temp. is approx. -18.6°C (-3.7°F) or lower, trouble code 11 may be output even though the system is normal.
- *2: If the ambient temp. is approx. -52.9°C (-61.4°F) or lower, a malfunction code may be output even though the system is normal.
- *3: If the check is performed in a dark place, DTC 21, 24 (solar sensor circuit) could be displayed.
- *4: Compressor lock (DTC 22) is indicated only for a existing malfunction.
To confirm DTC 22, perform the following steps.
(1) With the engine ON, enter the DTC check mode.
(2) Press the R/F switch to enter actuator check mode, and set the operation to Step No. 3.
(3) Press the AUTO switch to return to DTC check mode.
(4) The DTC is displayed after approx. 3 sec.
- *5: The A/C amplifier memorizes the DTC of the respective malfunction which occurred within the period of the time indicated in the brackets.
