Tire Pressure Warning System

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Tire pressure warning system

DTC C2111/11-C2124/24:

DTC C2125/25-C2133/33:

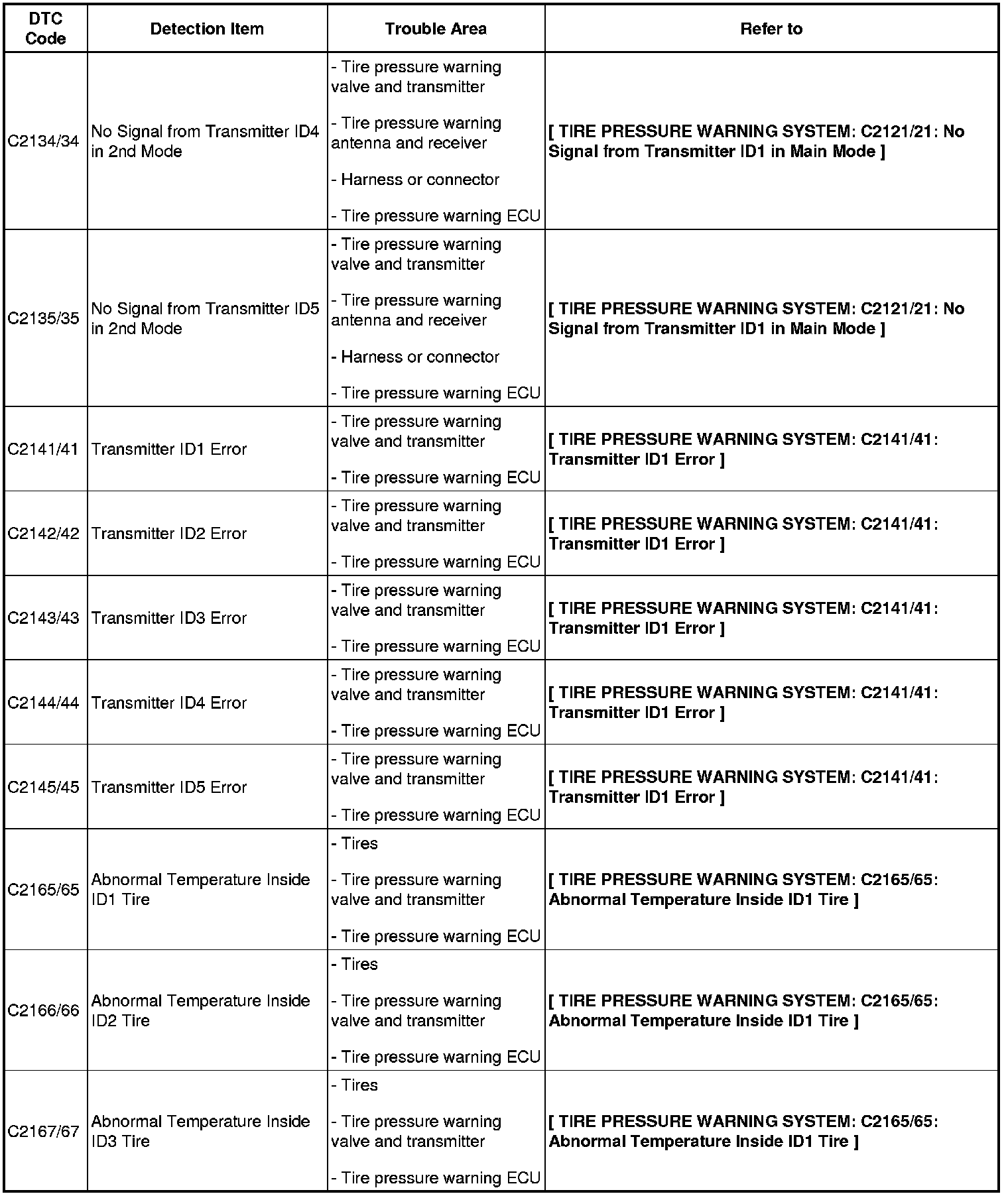

DTC C2134/34-C2167/67:

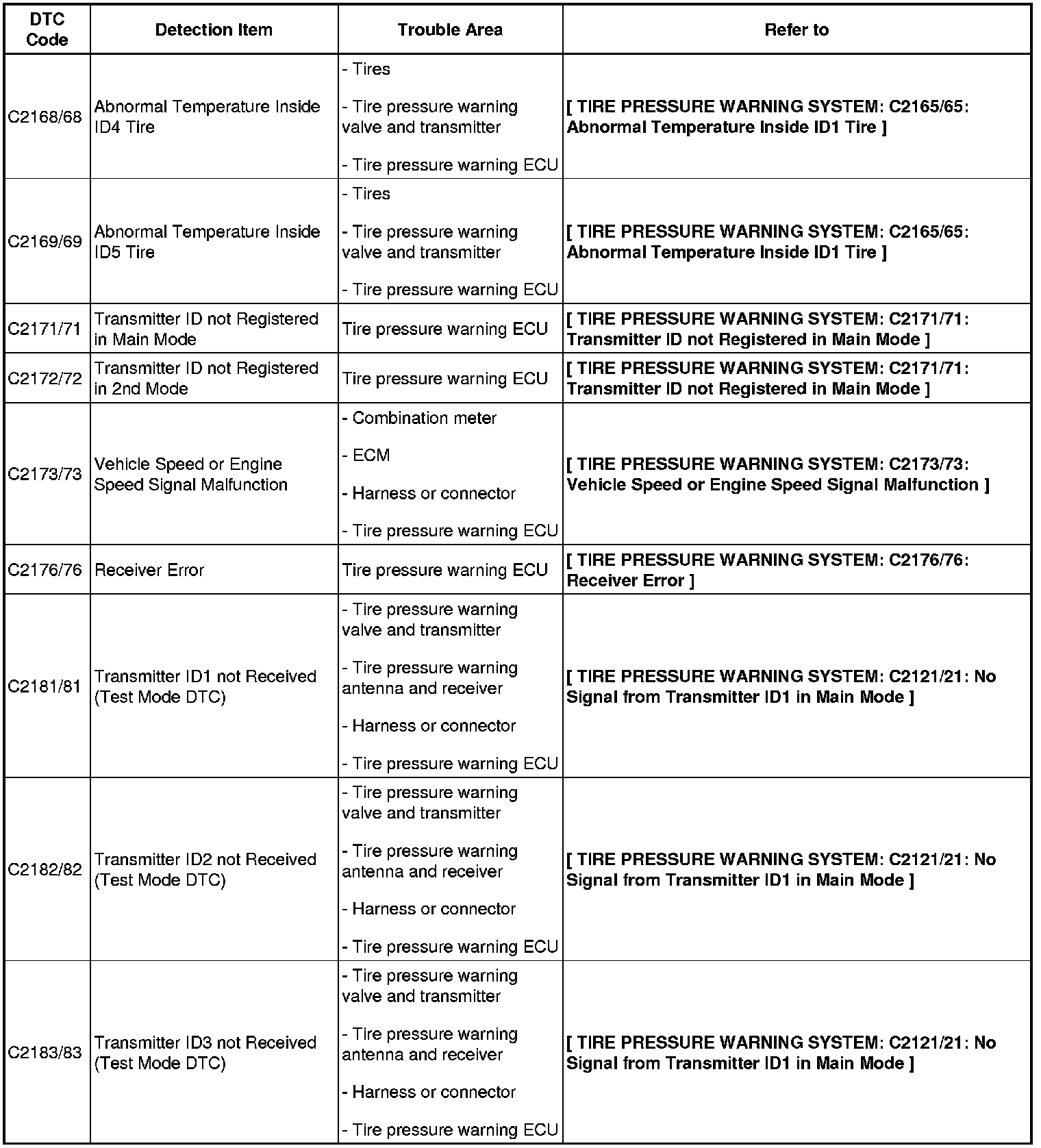

DTC C2168/68-C2183/83:

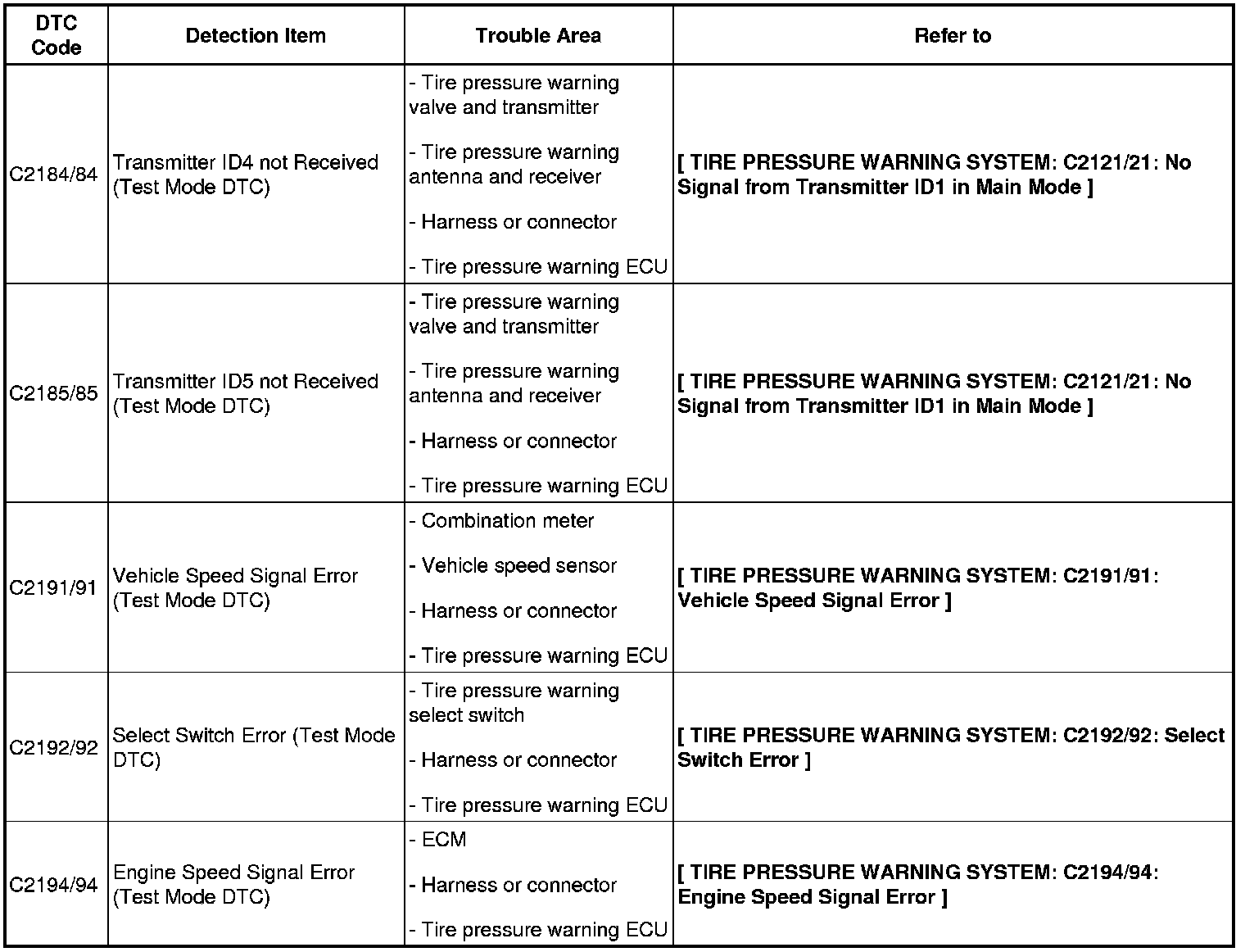

DTC C2184/84-C2194/94:
