Mirrors: Description and Operation

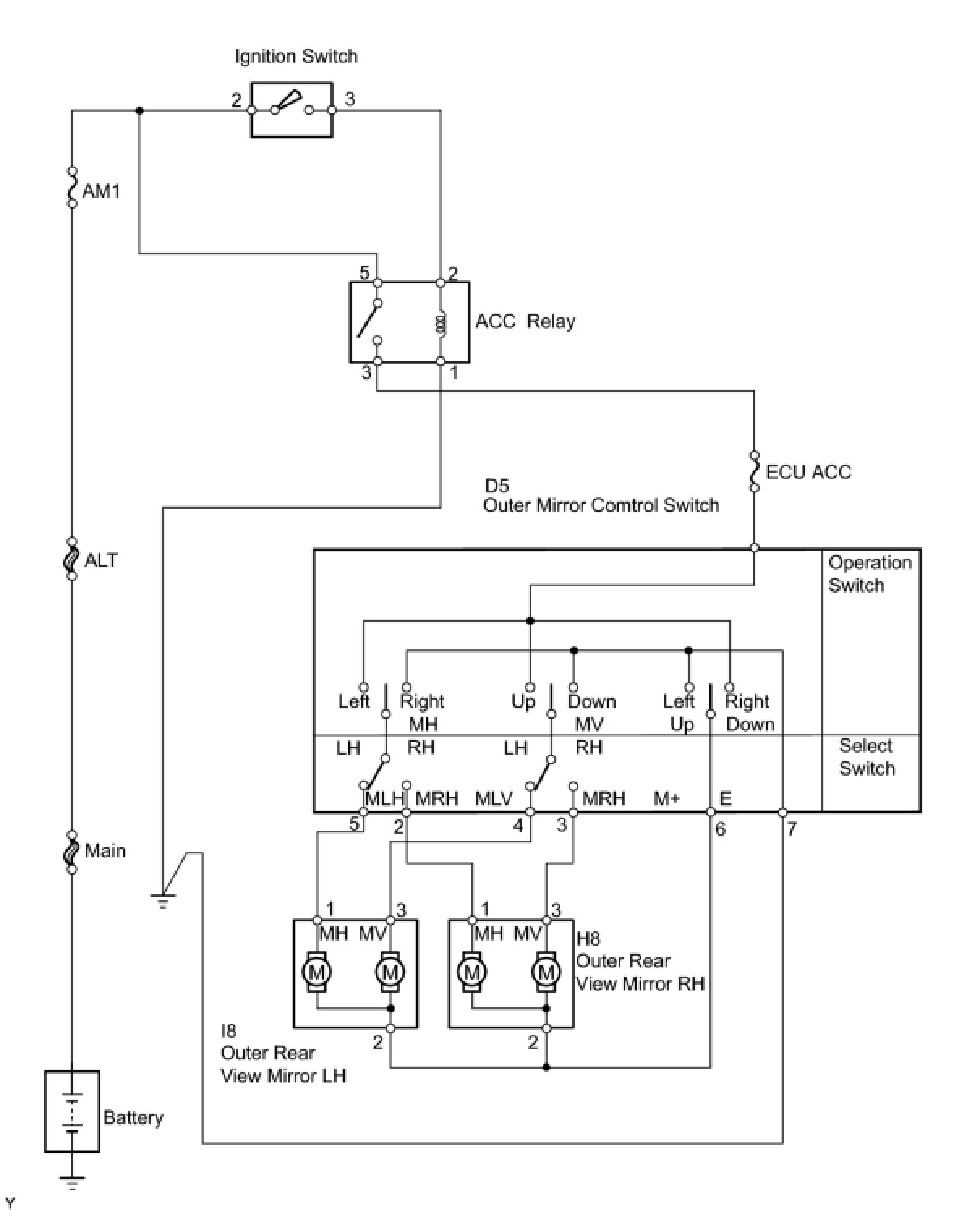

MIRROR: POWER MIRROR CONTROL SYSTEM (w/o Memory): SYSTEM DIAGRAM
SYSTEM DIAGRAM
