Sound Proofing / Insulation: Locations

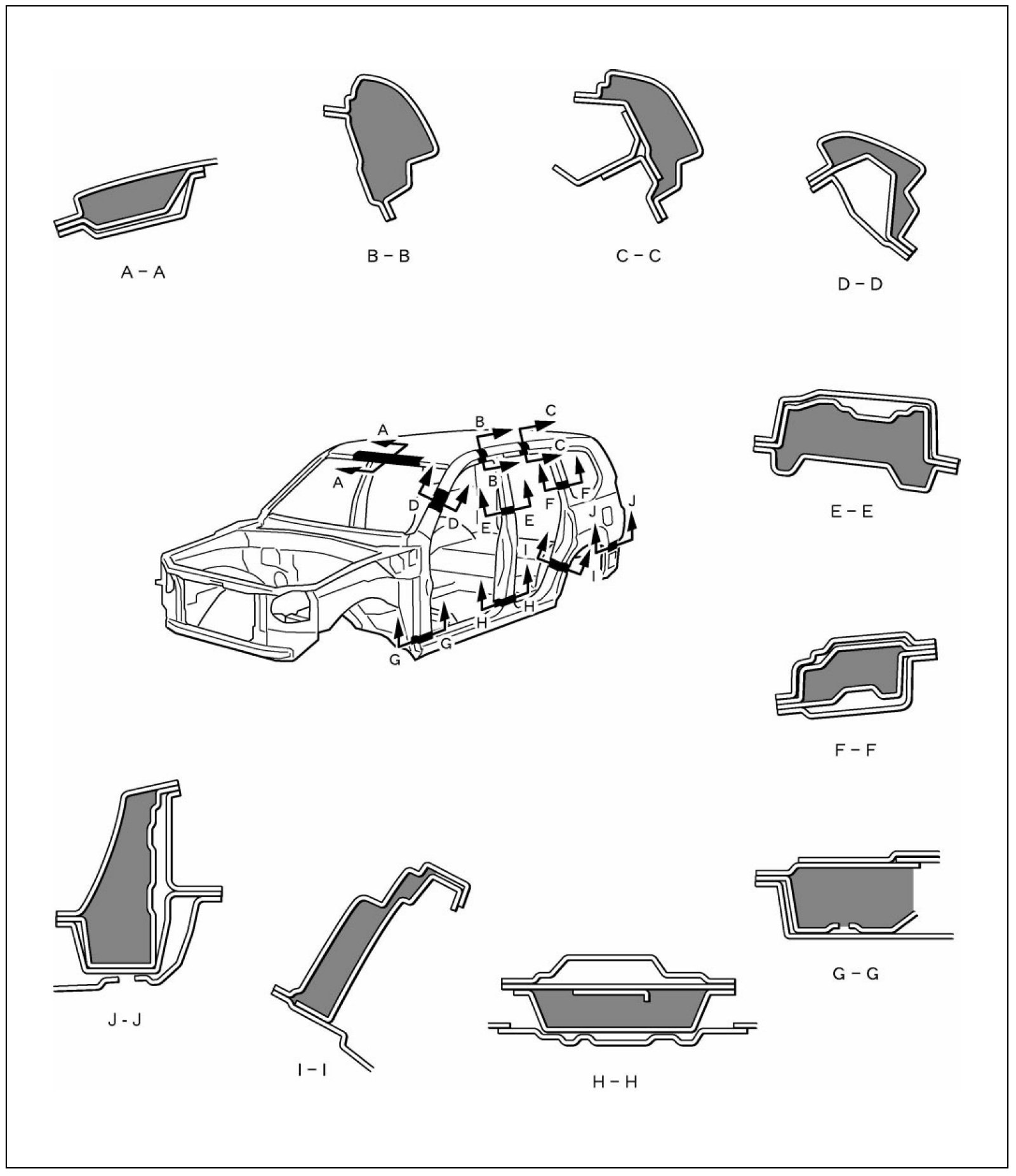

FOAMED MATERIAL APPLICATION AREAS




The sections are filled with foamed material to provide noise insulation. After repairing these sections or their peripheries, refill with foamed materials

HINT:
1. Use the service holes located on the reverse side of the body panel to refill with foamed materials.
2. When handling foamed material, follow the directions of the material's manufacturer.
