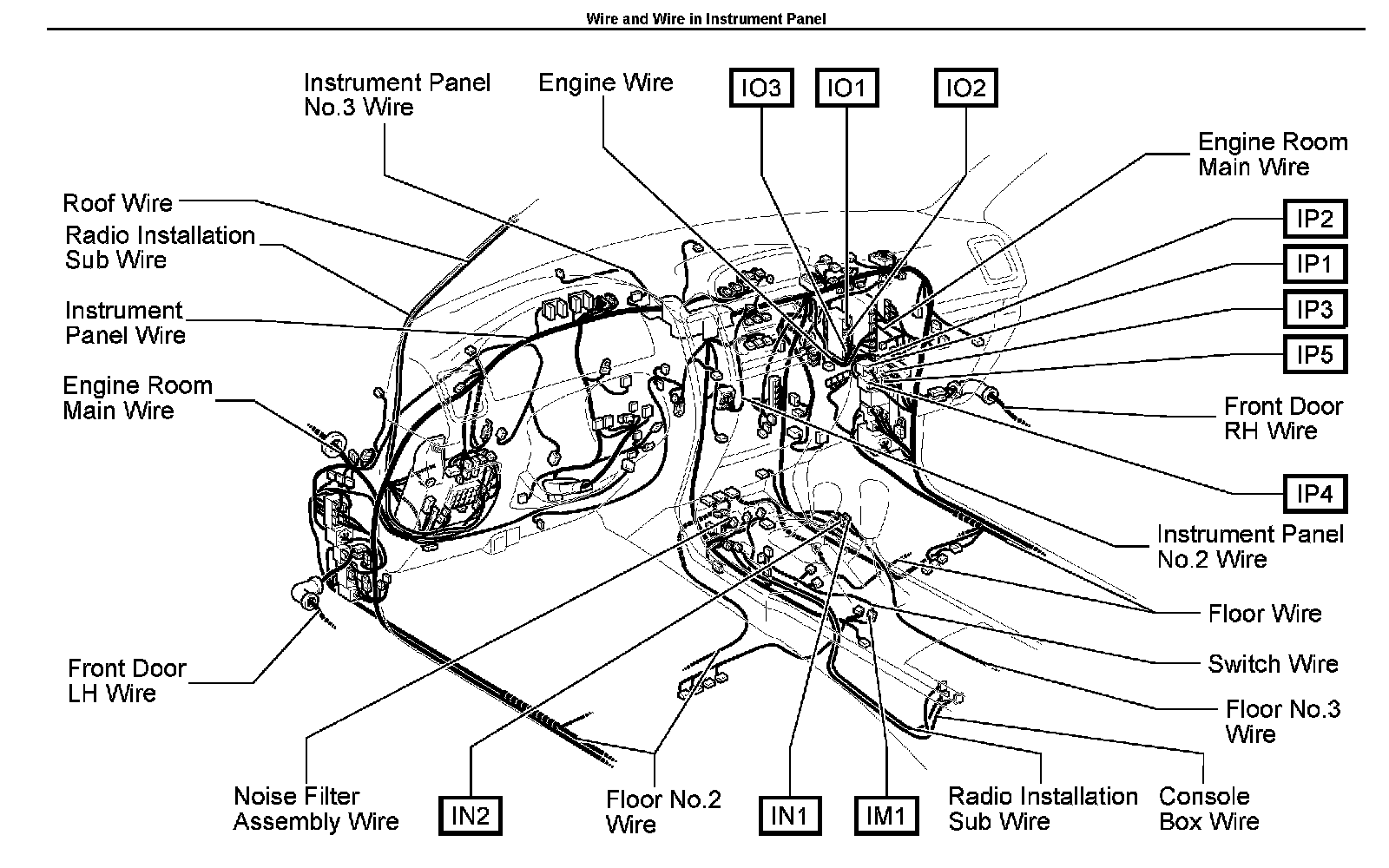

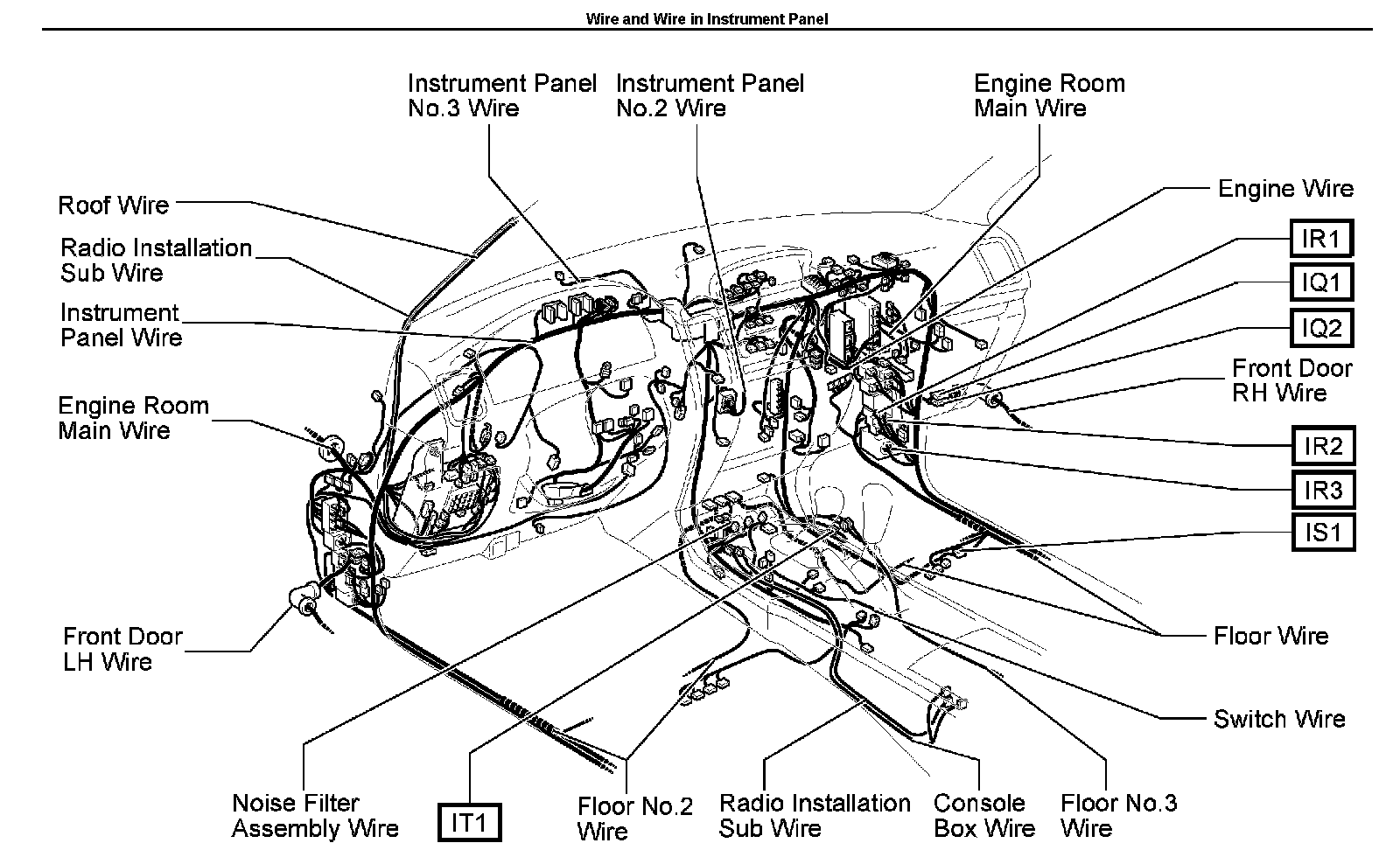

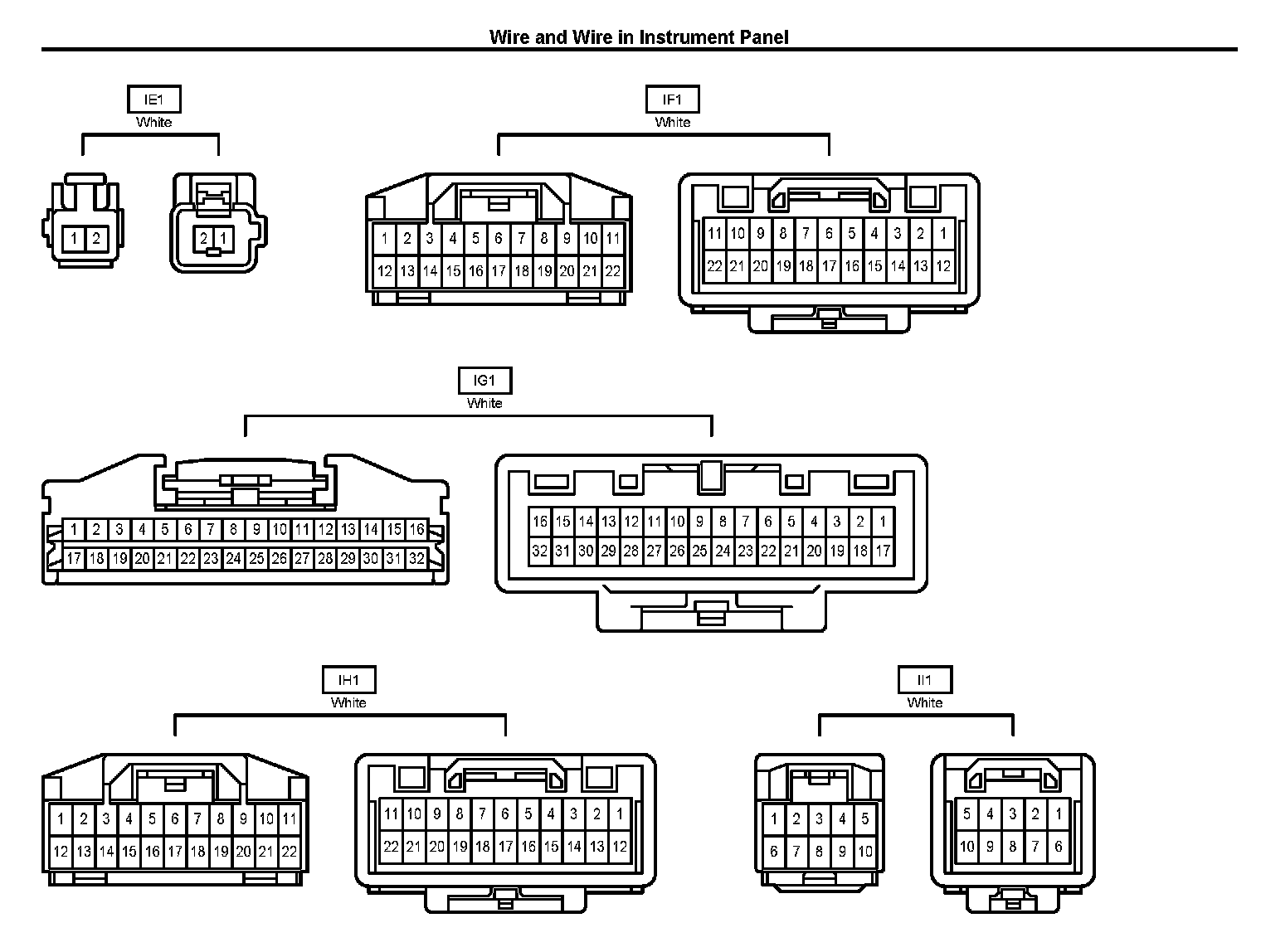

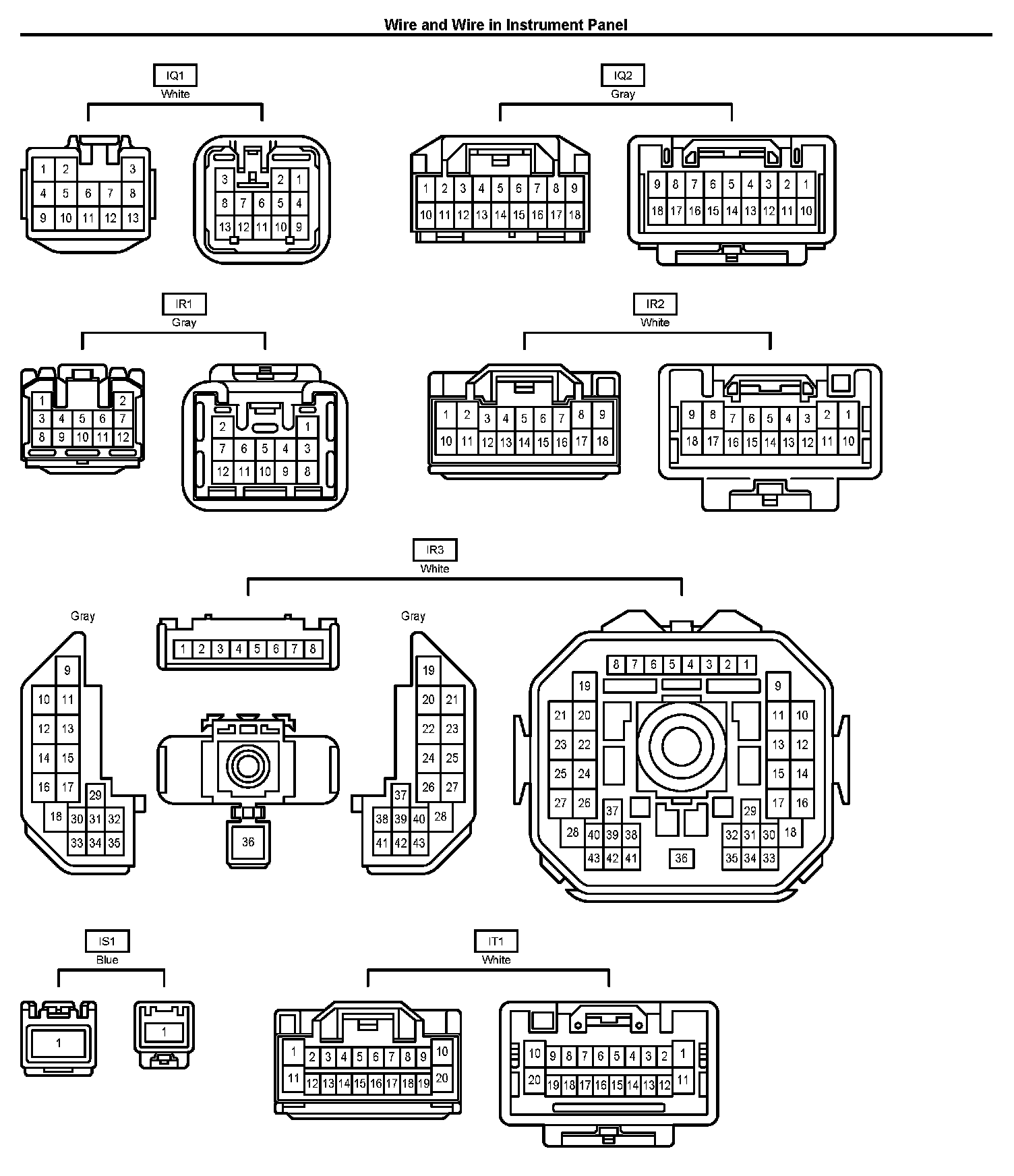

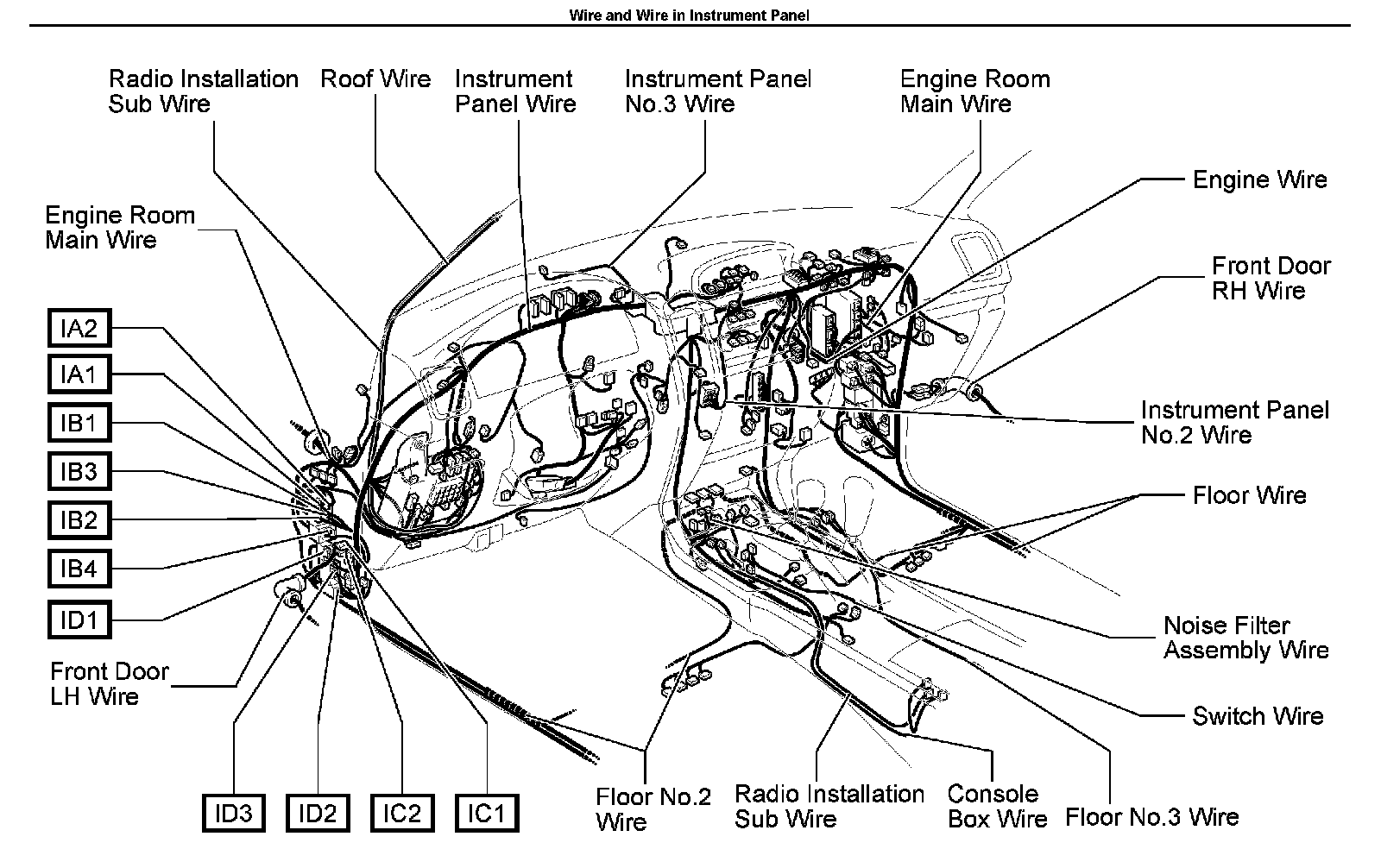

Wire and Wire In Instrument Panel

IA1-ID3:




IA1-IC2:




ID1-ID3:




IE1-IL1:




IE1-II1:




IJ1-IL1:




IM1-IP5:




IM1-IP1:




IP2-IP5:




IQ1-IT1:




IQ1-IT1:
