Ambient Temperature Sensor / Switch HVAC
>>
Locations
Ambient Temperature Sensor / Switch HVAC: Locations

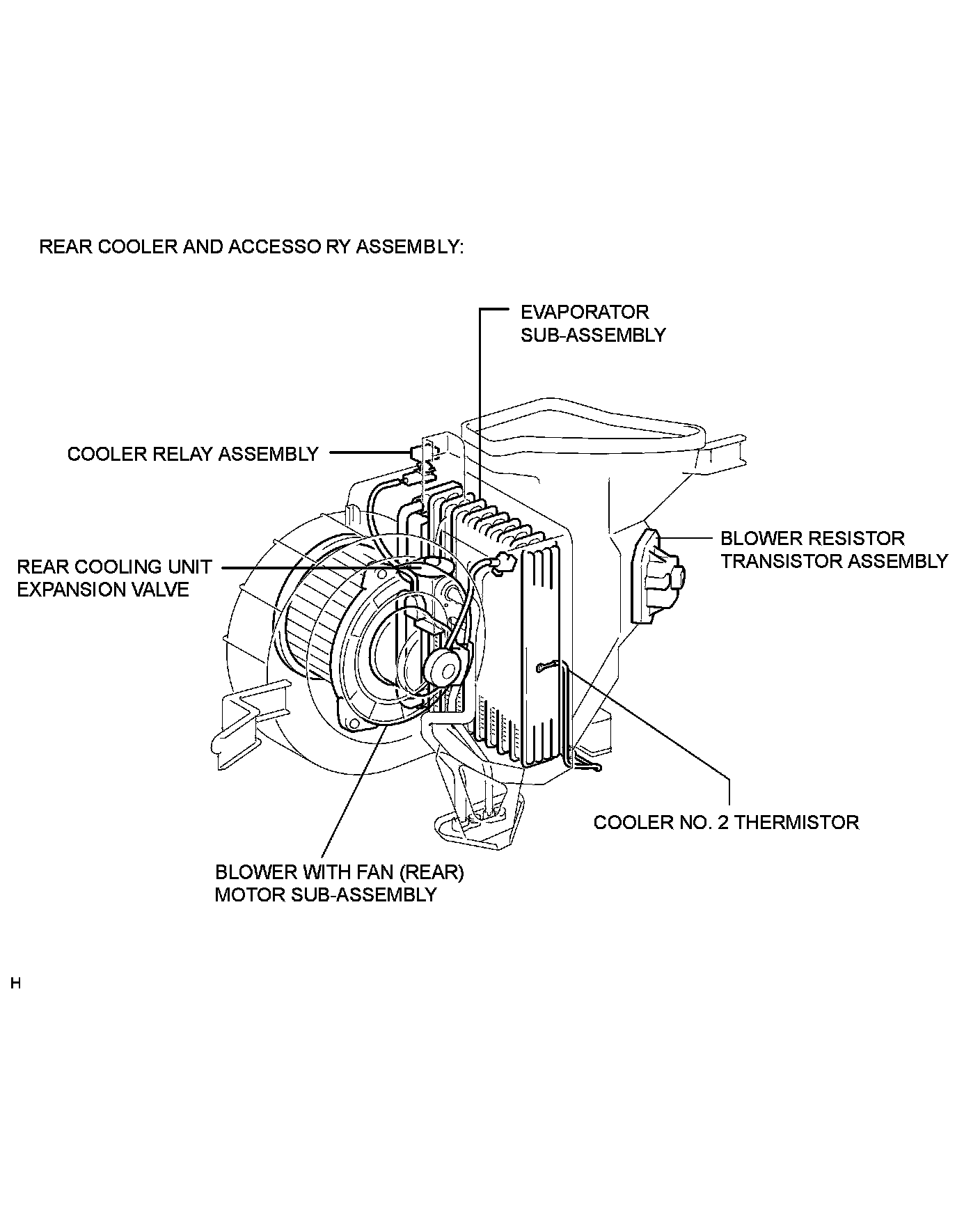

AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
