Fog/Driving Lamp: Adjustments

LIGHTING: FOG LIGHT ASSEMBLY: ADJUSTMENT

ADJUSTMENT

1. REMOVE FRONT FENDER LINER LH Removal
2. PUT VEHICLE UNDER THESE CONDITIONS
(a) Tire inflation pressure is in the specified value. Service Precautions
(b) Engine is running.
3. ADJUST FOG LIGHT AIMING

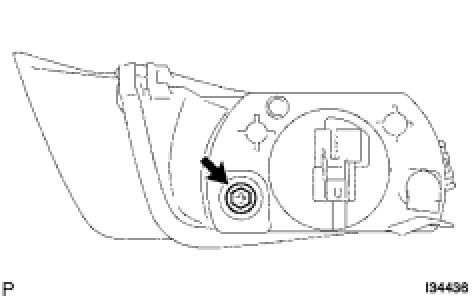

(a) Adjust the fog light aiming by moving the aiming screw in the vertical direction.
4. INSTALL FRONT FENDER LINER LH
