Pinout Values and Diagnostic Parameters

LIGHTING: LIGHTING SYSTEM: TERMINALS OF ECU

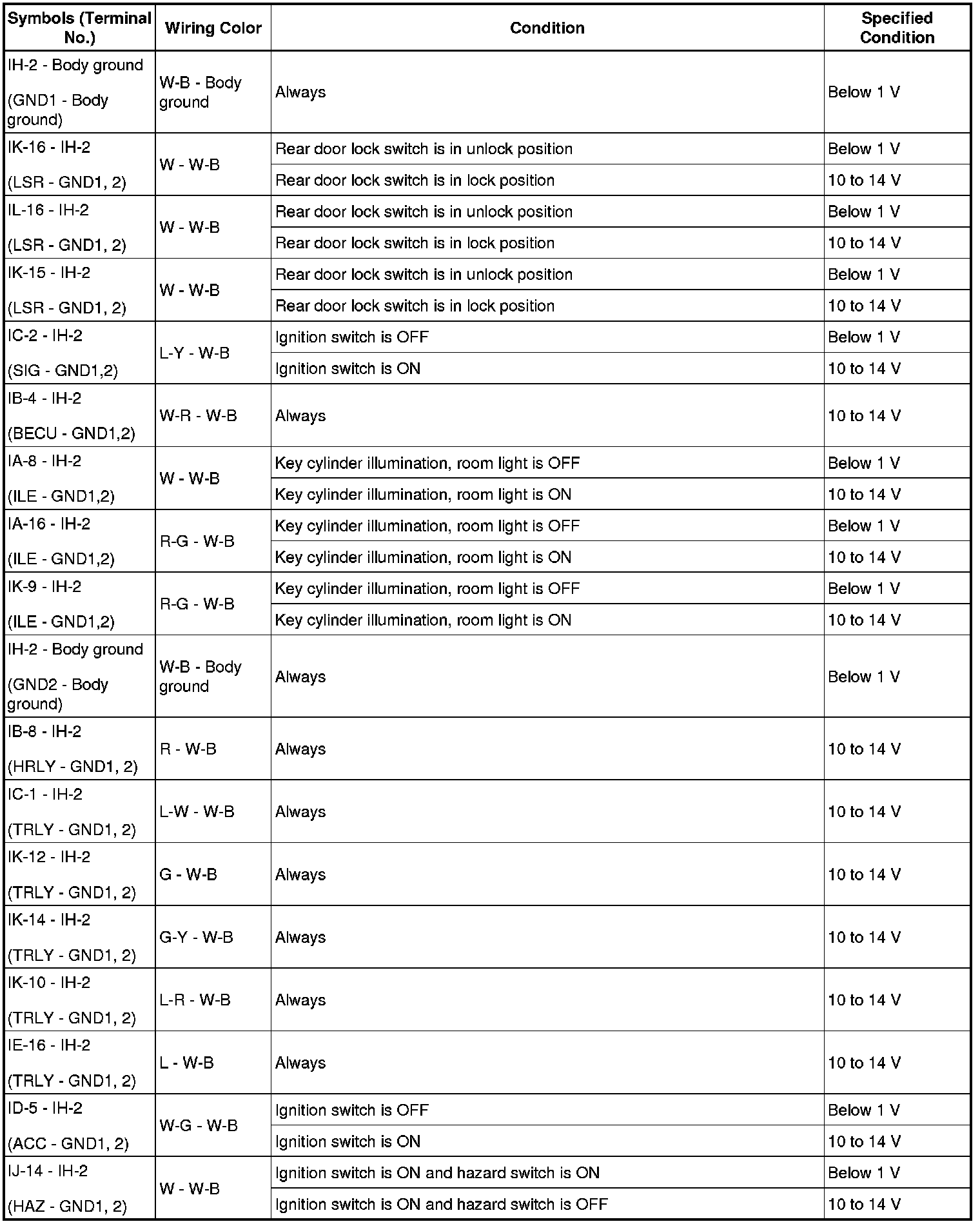

TERMINALS OF ECU

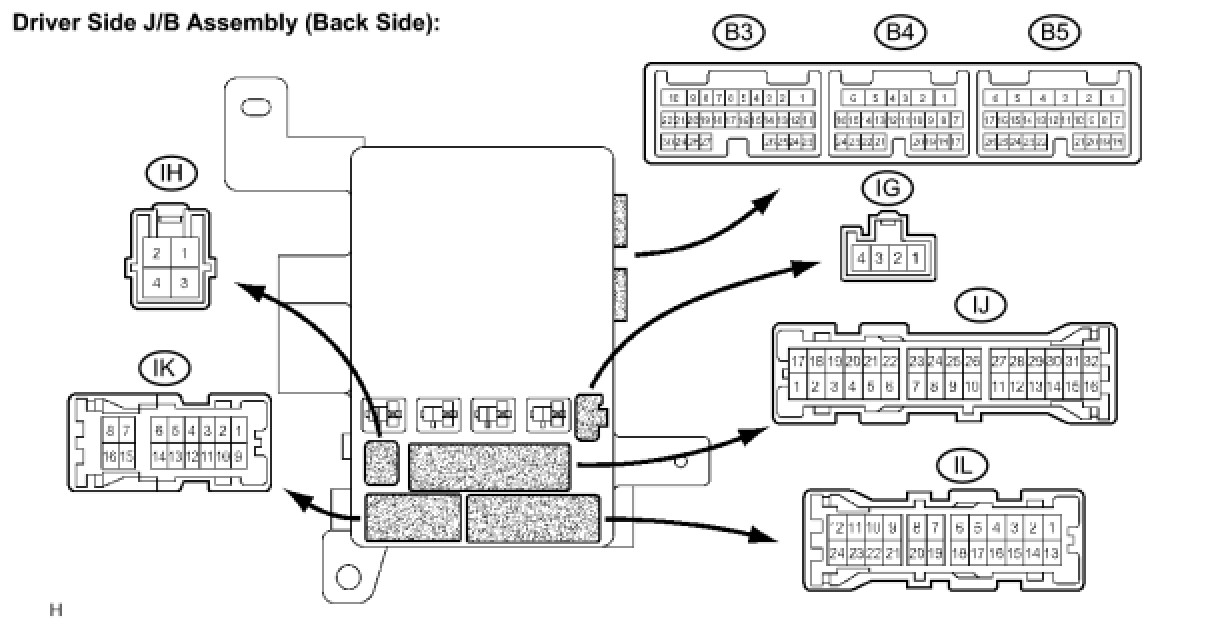

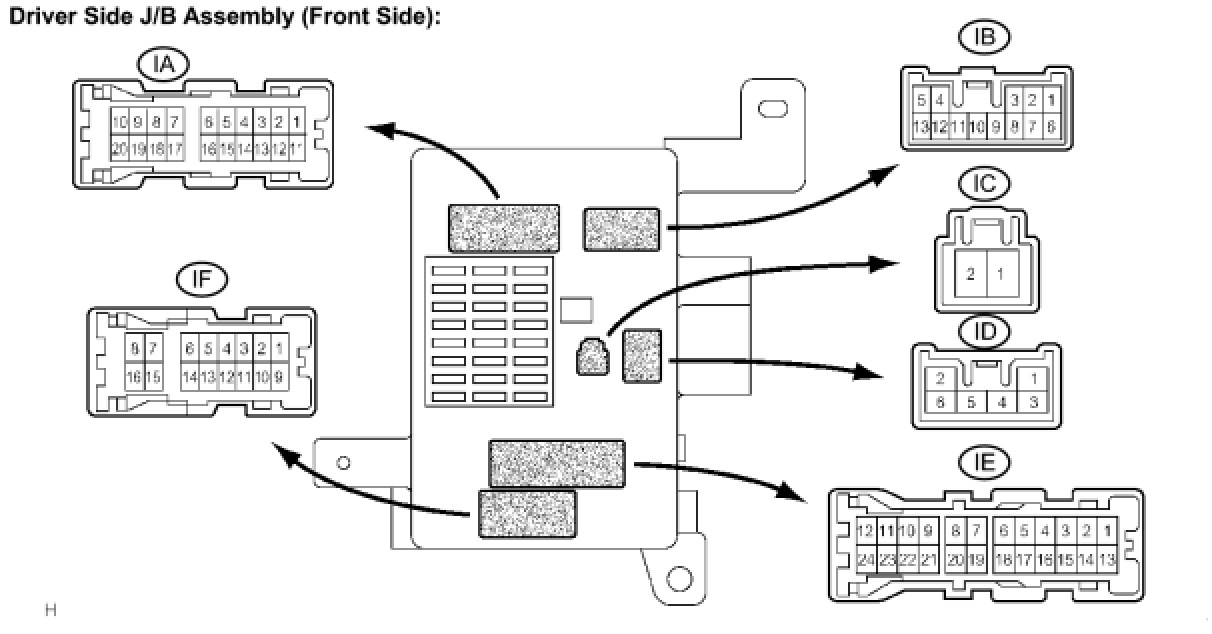

1. Instrument Panel J/B Assembly (Driver Side J/B Assembly (Multiplex Network Body ECU))

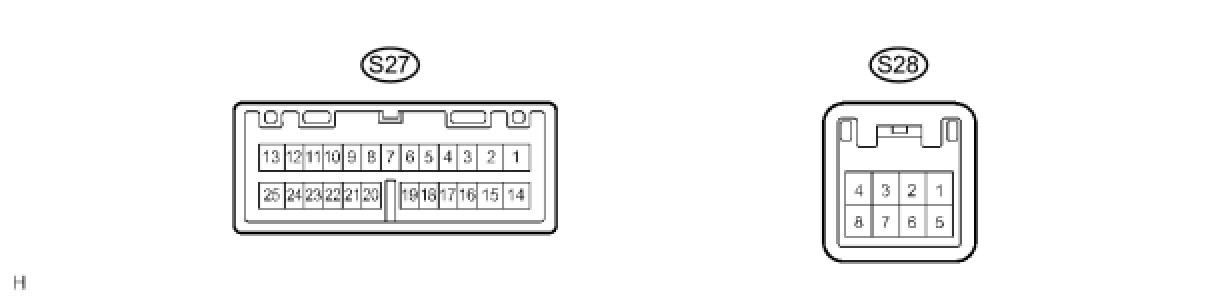

2. Multiplex Network Body ECU No. 2
