Fuse: Application and ID

Fuse Layout and Amperage Ratings

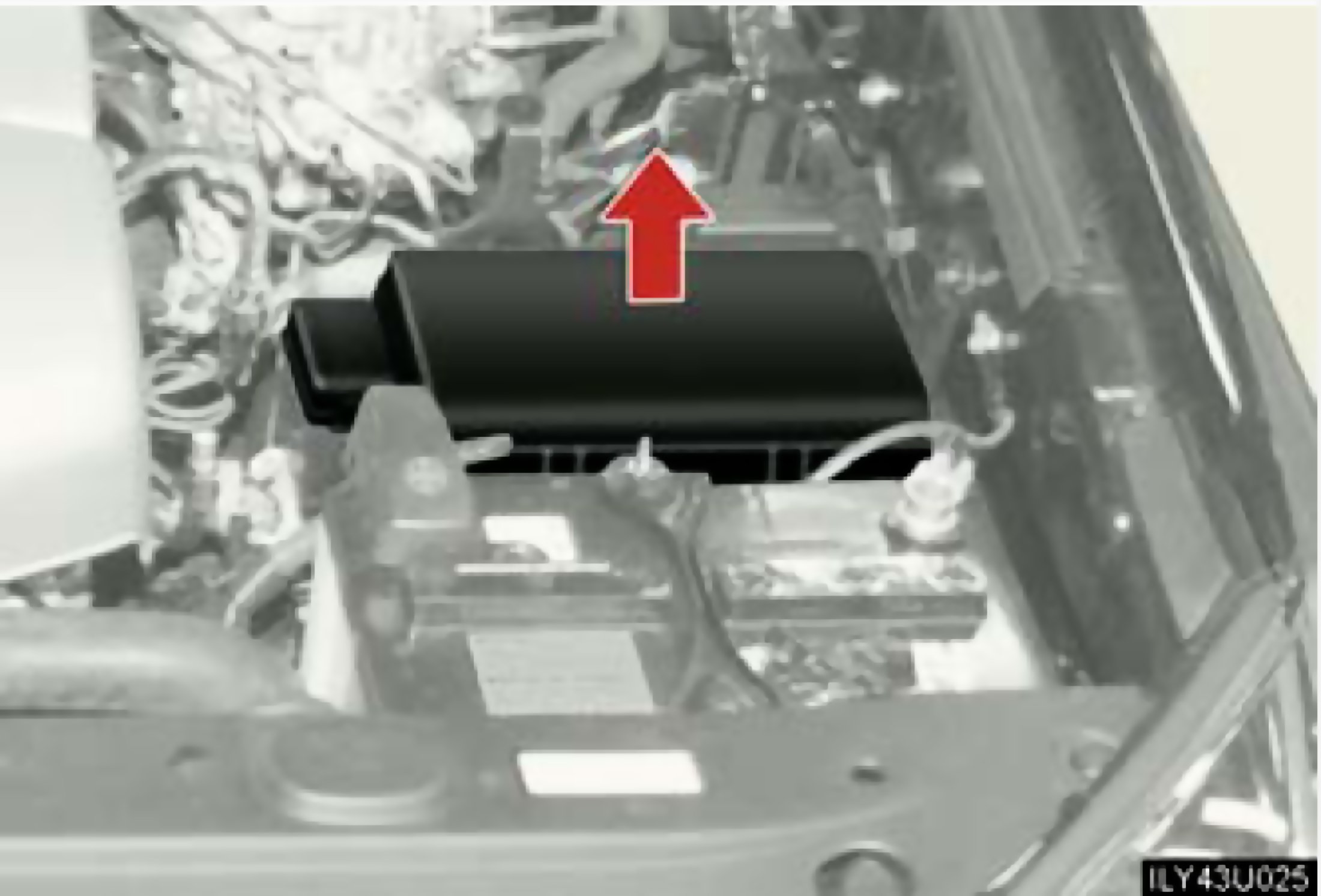

Fuse Block Location - Engine Compartment:

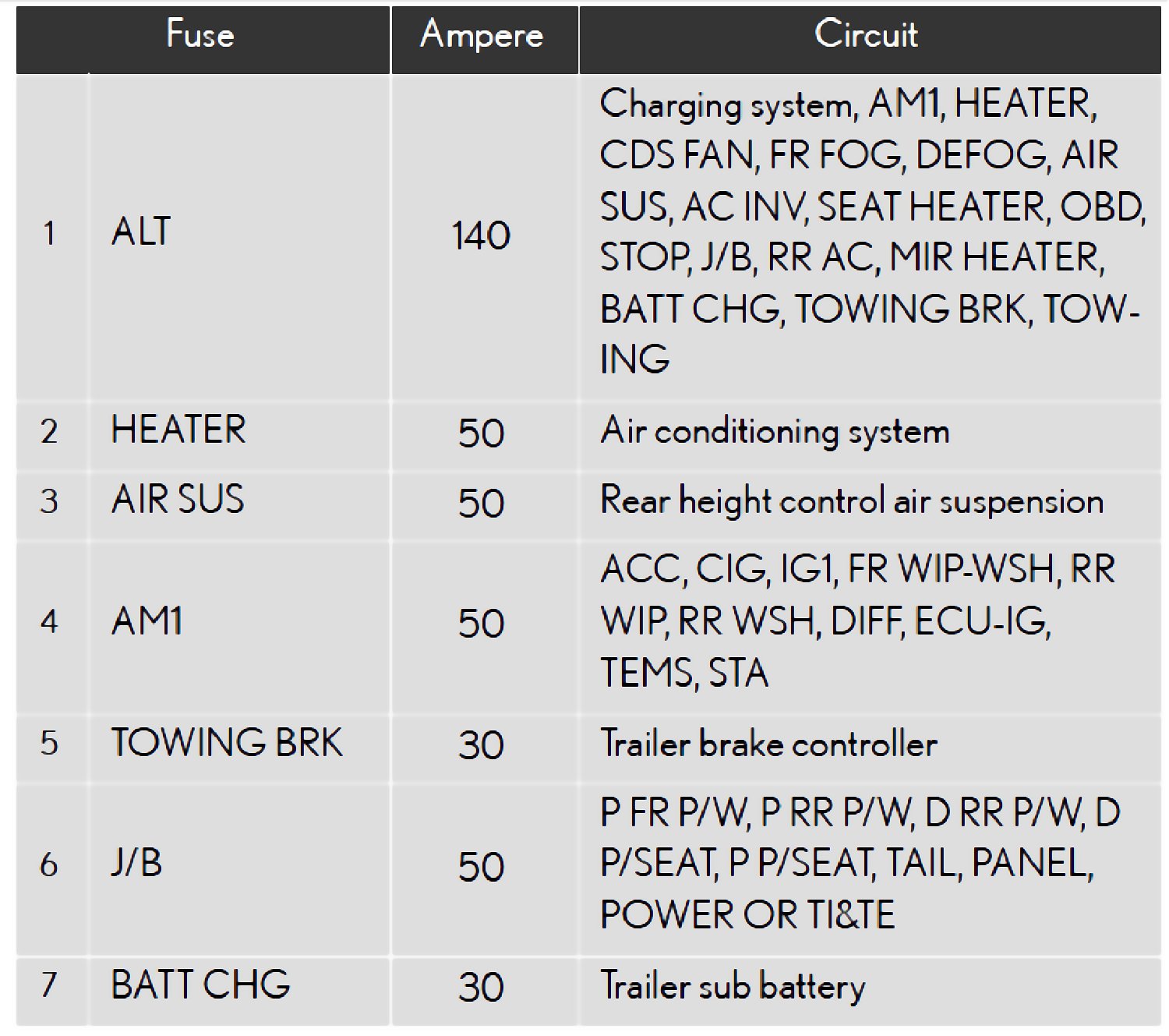

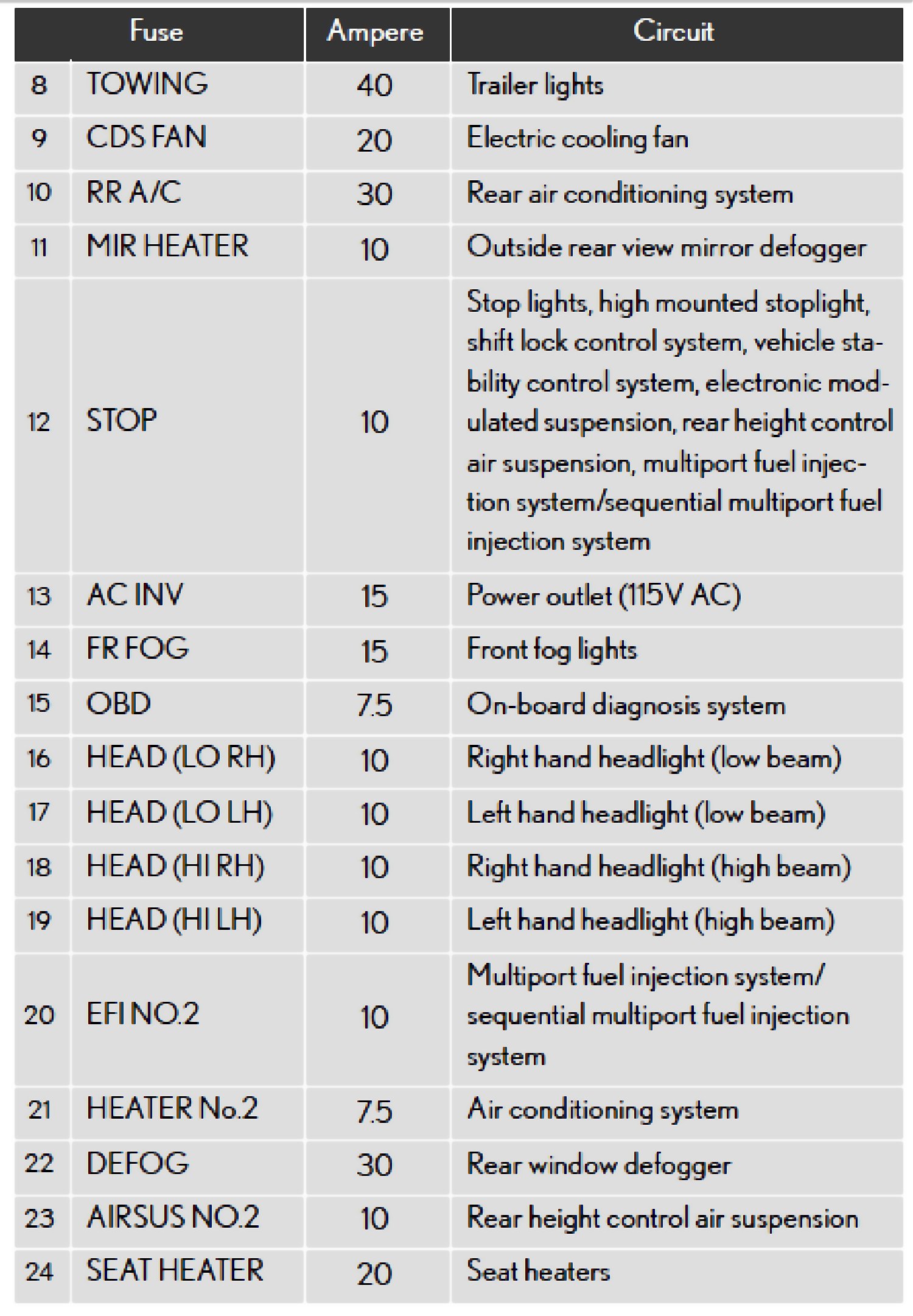

Fuse Location - Engine Compartment:

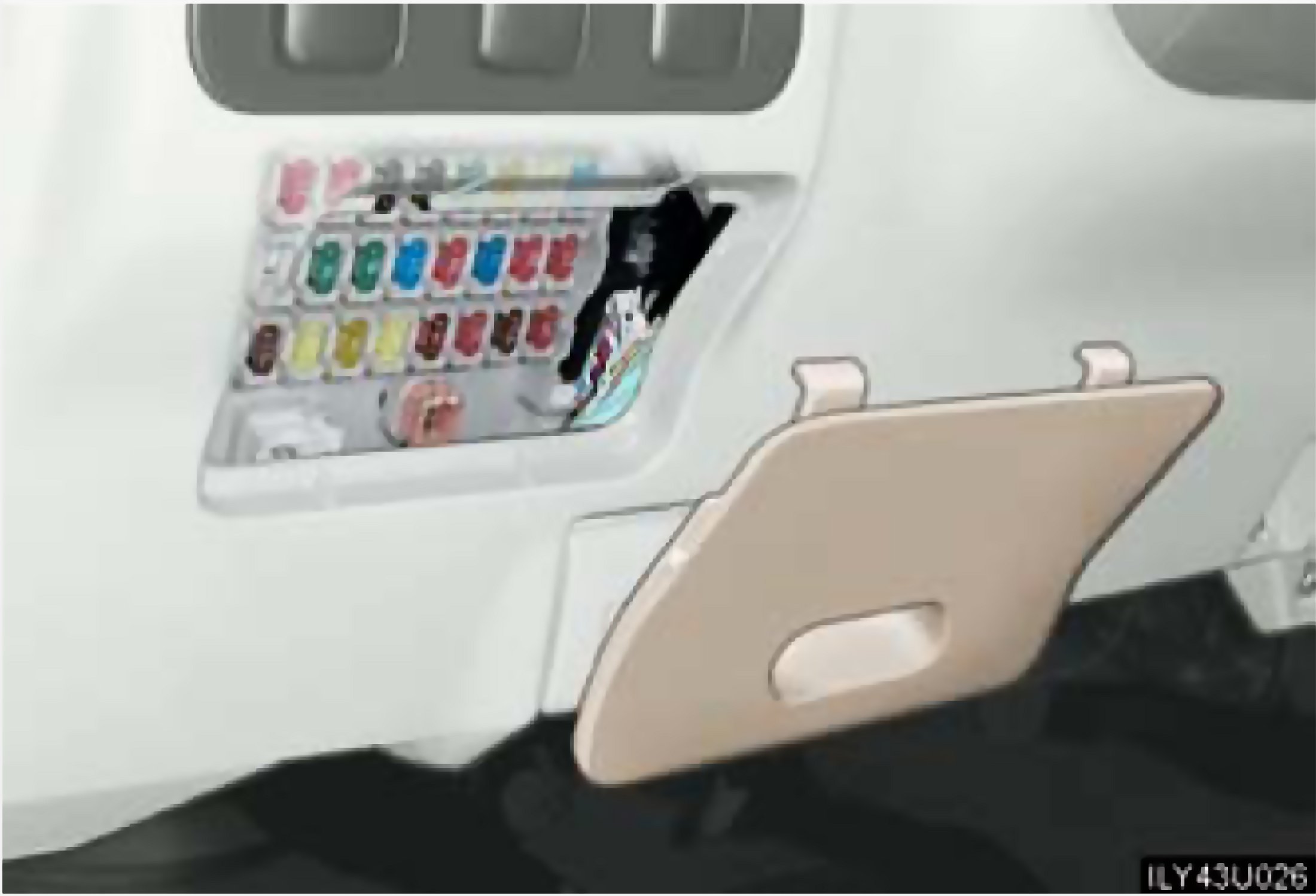

Fuse Block Location - Driver's Side Instrument Panel:

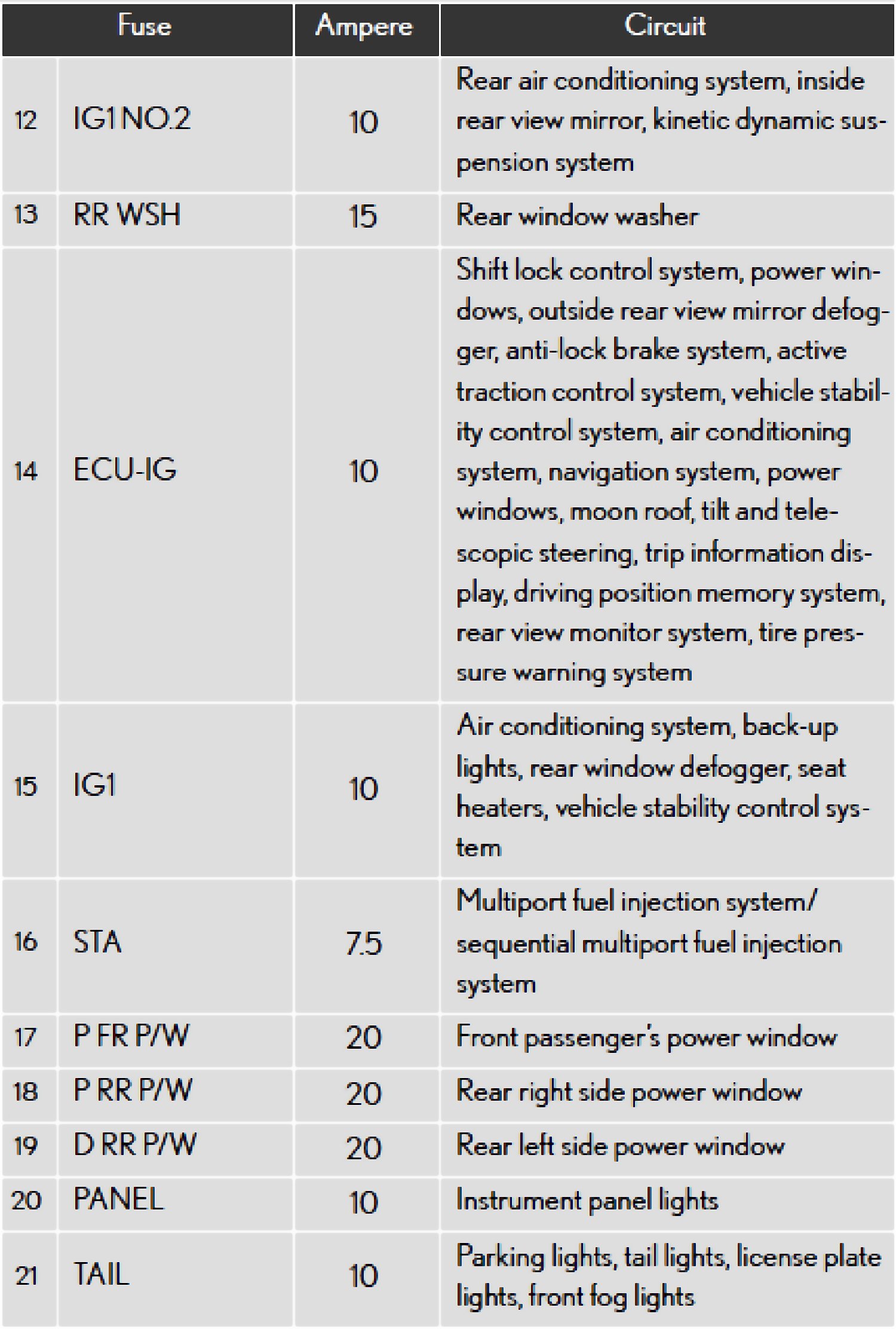

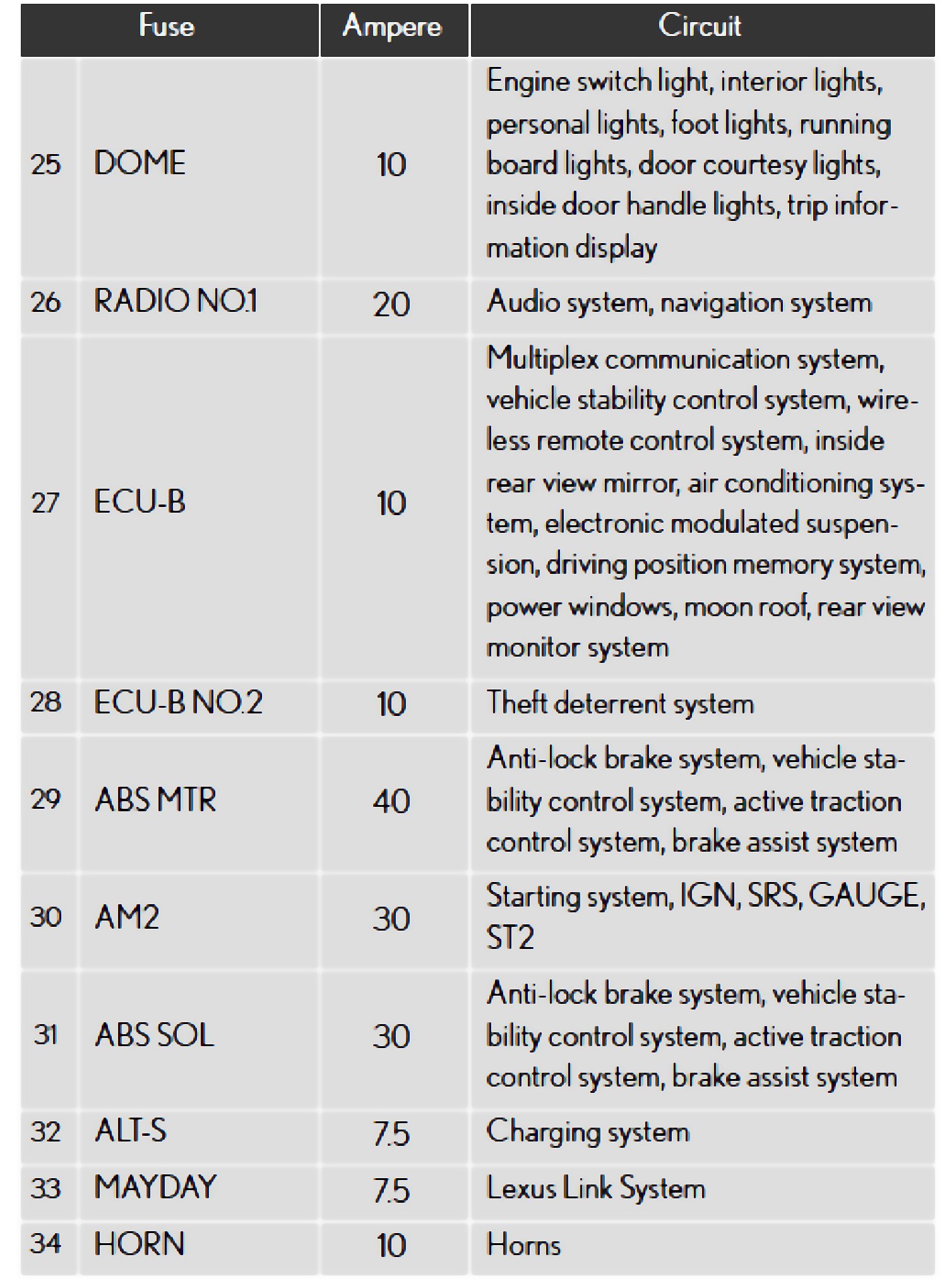

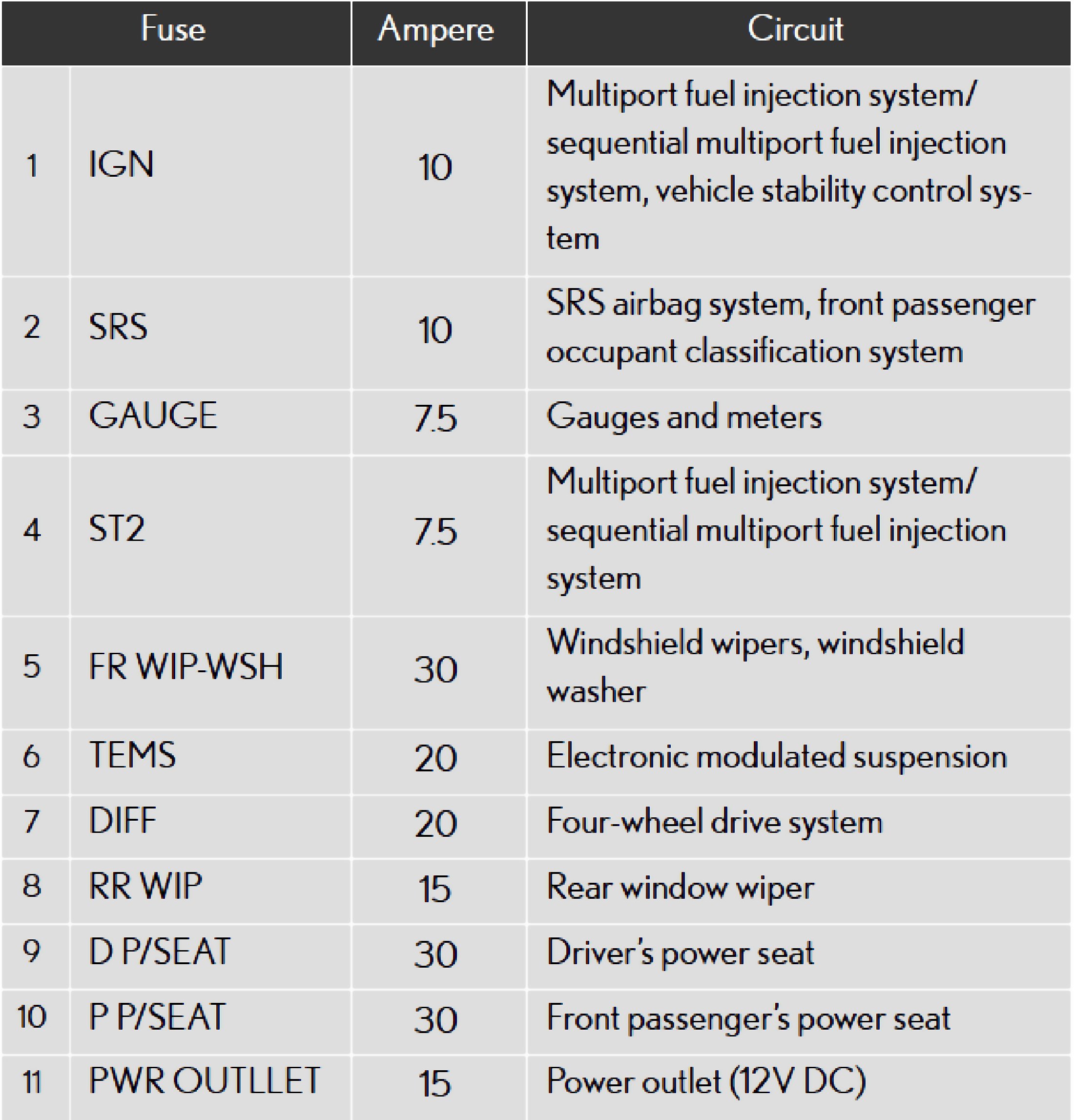

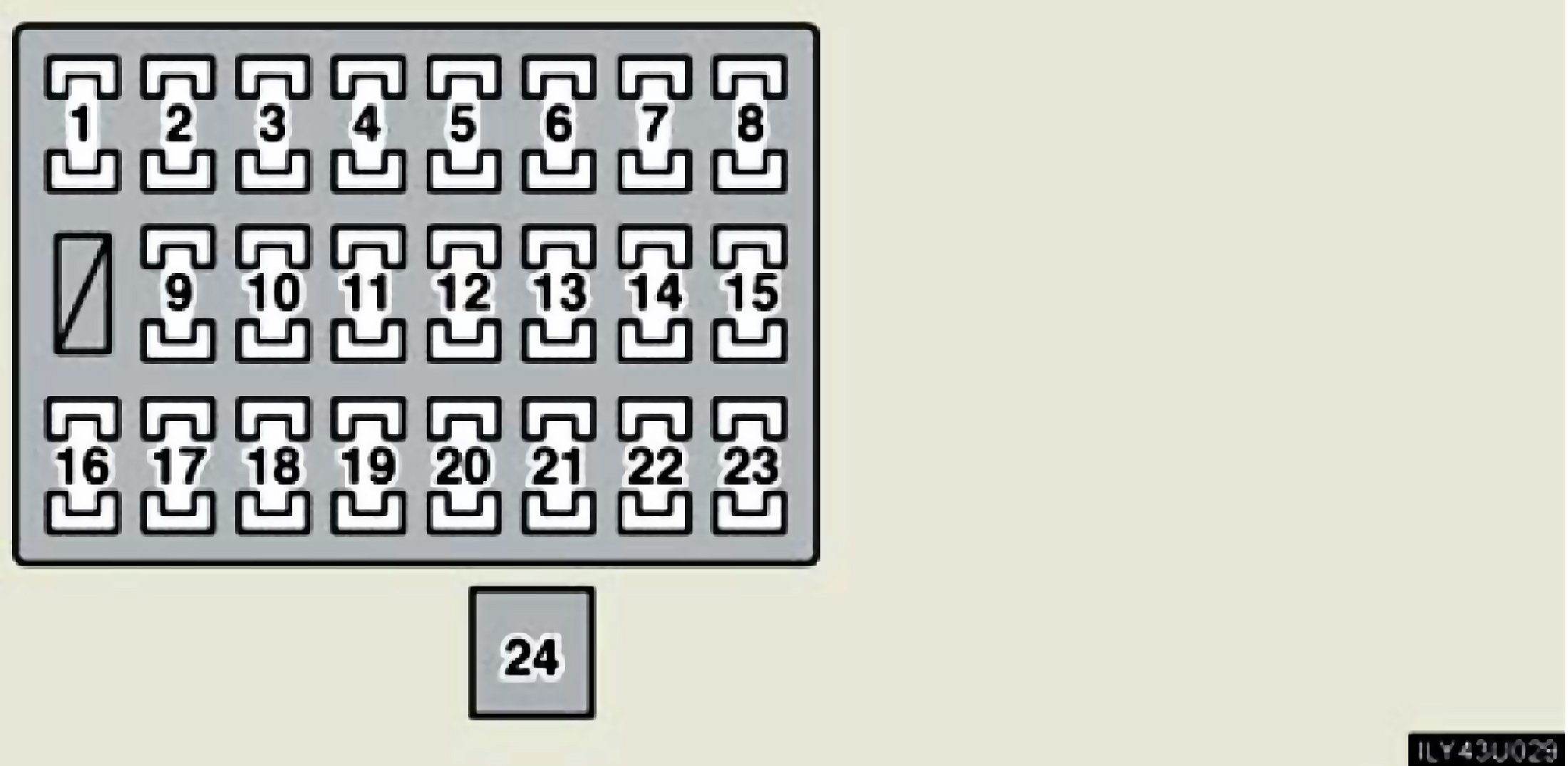

Fuse Location - Driver's Side Instrument Panel:
