Body - Moonroof Initialization Procedure

L-SB-0051-08

August 14, 2008

Initialization of Moon Roof During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

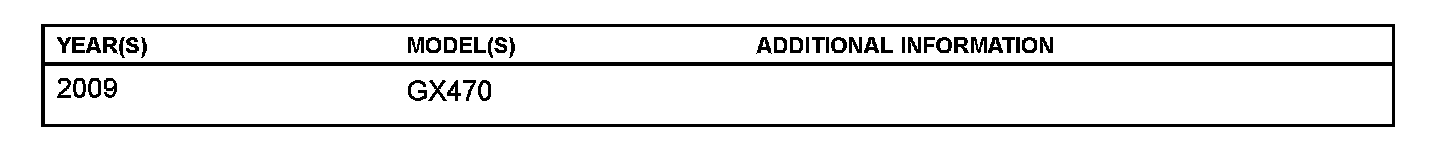

Applicability

Introduction

This bulletin outlines the initialization procedure for the moon roof on the 2009 model year GX 470.

If the battery has been disconnected the moon roof ECU will not be able to detect and memorize the moon roof positions resulting in the following features being inoperative.

^ One-touch tilt up and down with jam protection.

^ One-touch slide open and close with jam protection.

Use the following procedure to initialize the moon roof during PDS and whenever the battery has been disconnected.

Any time the battery terminal has been disconnected, the moon roof MUST be re-initialized.





Warranty Information

1. With ignition switch in the "IG-ON" position.





2. Push and hold the "TILT UP,, side of the switch until the moon roof tilts all the way up and then tilts down slightly (approximately 10 mm [0.39 in.] at the rear).

3. Check for proper operation of the "One-touch slide open/close" and "One-touch tilt up/down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.

NOTE

Jam protection function becomes effective through the above initialization procedure.
