Differential Assembly: Testing and Inspection








DIFFERENTIAL: DIFFERENTIAL SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT: Use the table below to help you find the cause of the problem. The numbers indicate the ranked order of probability of each of the possible causes. Check each part in order. If necessary, replace these parts.

DIFFERENTIAL SYSTEM

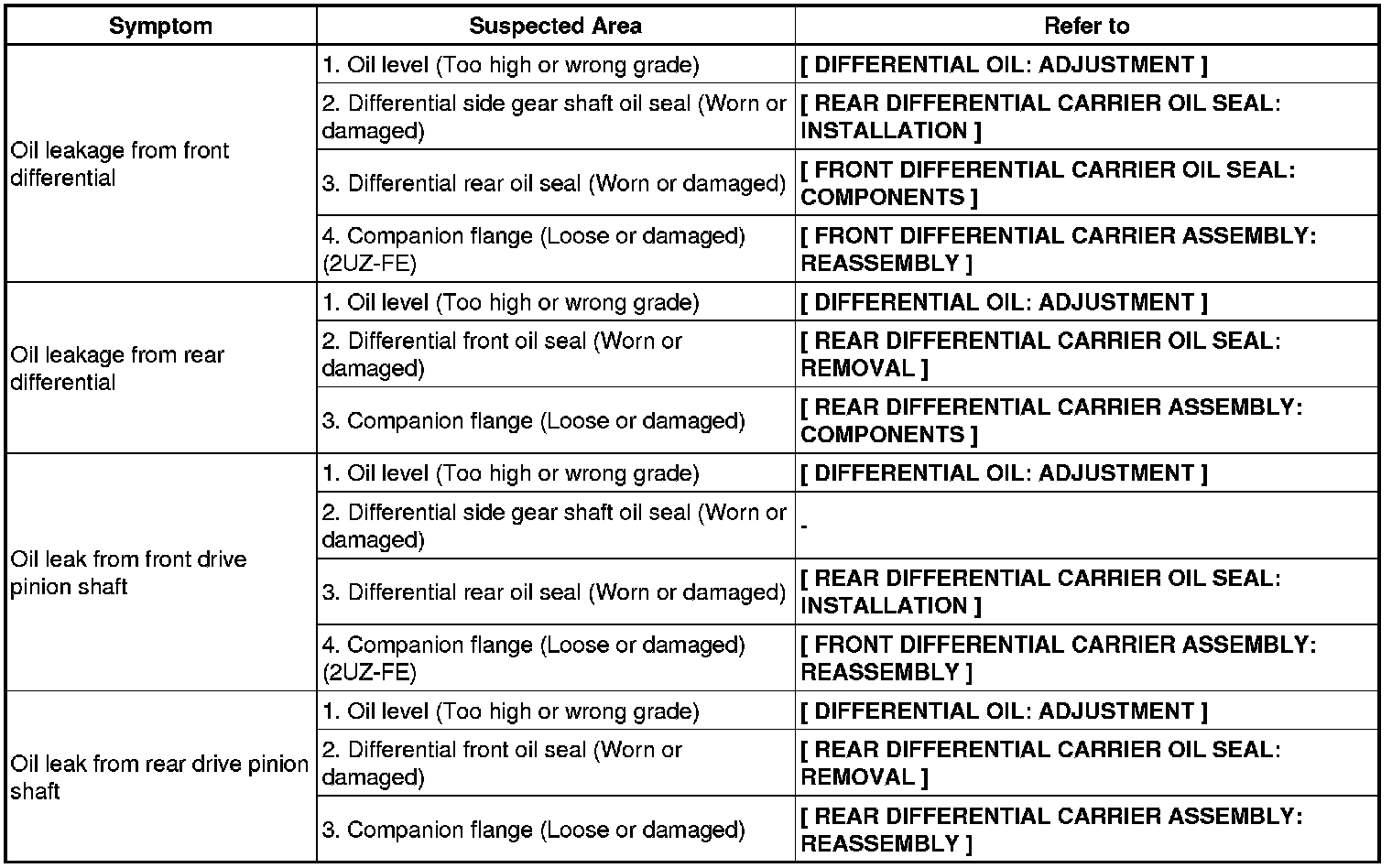

Symptom Chart:
