Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

ADJUSTMENT

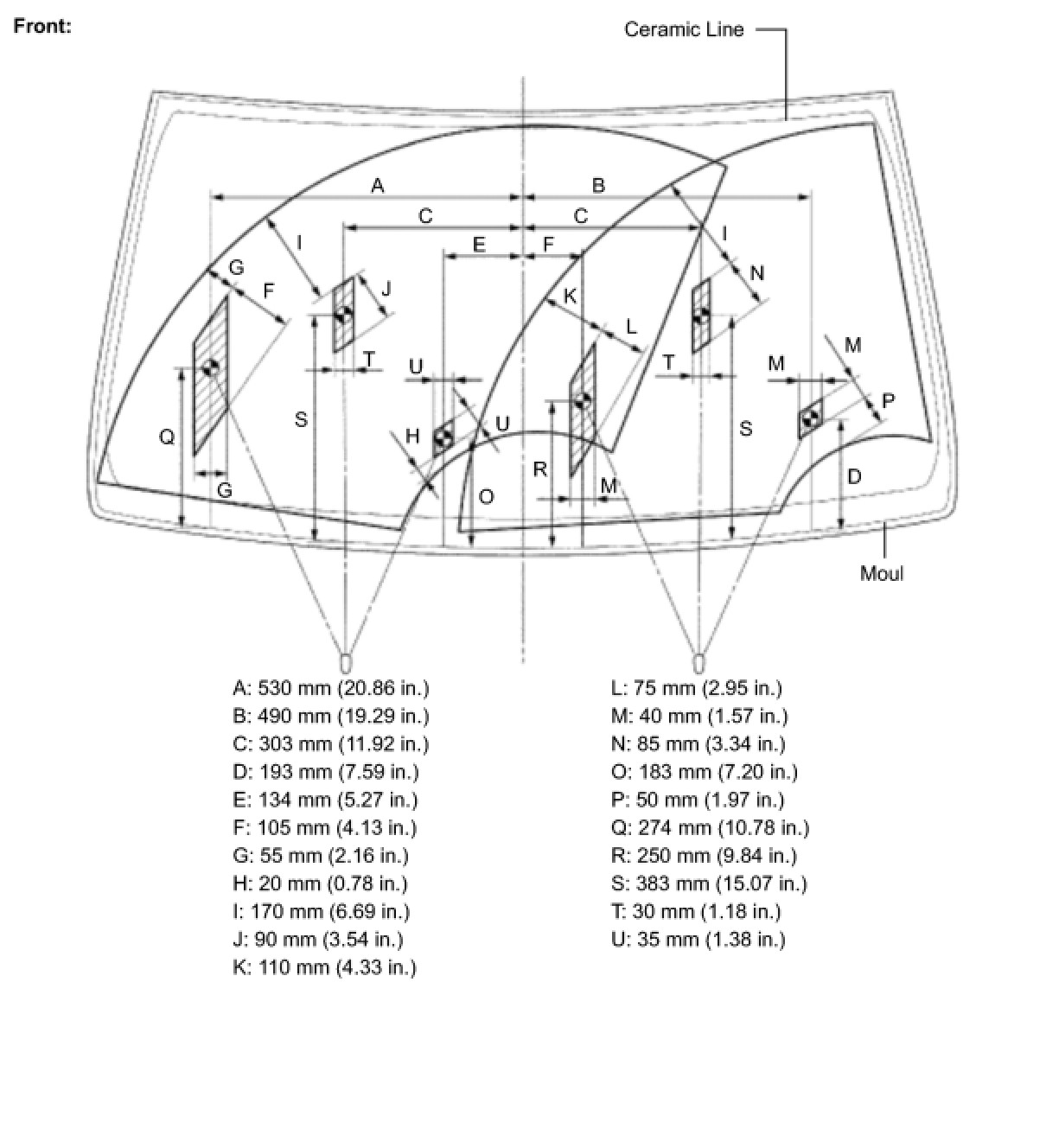

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY
(a) With the engine running, check that the point where the washer fluid hits the windshield is within the range indicated by the hatched line.

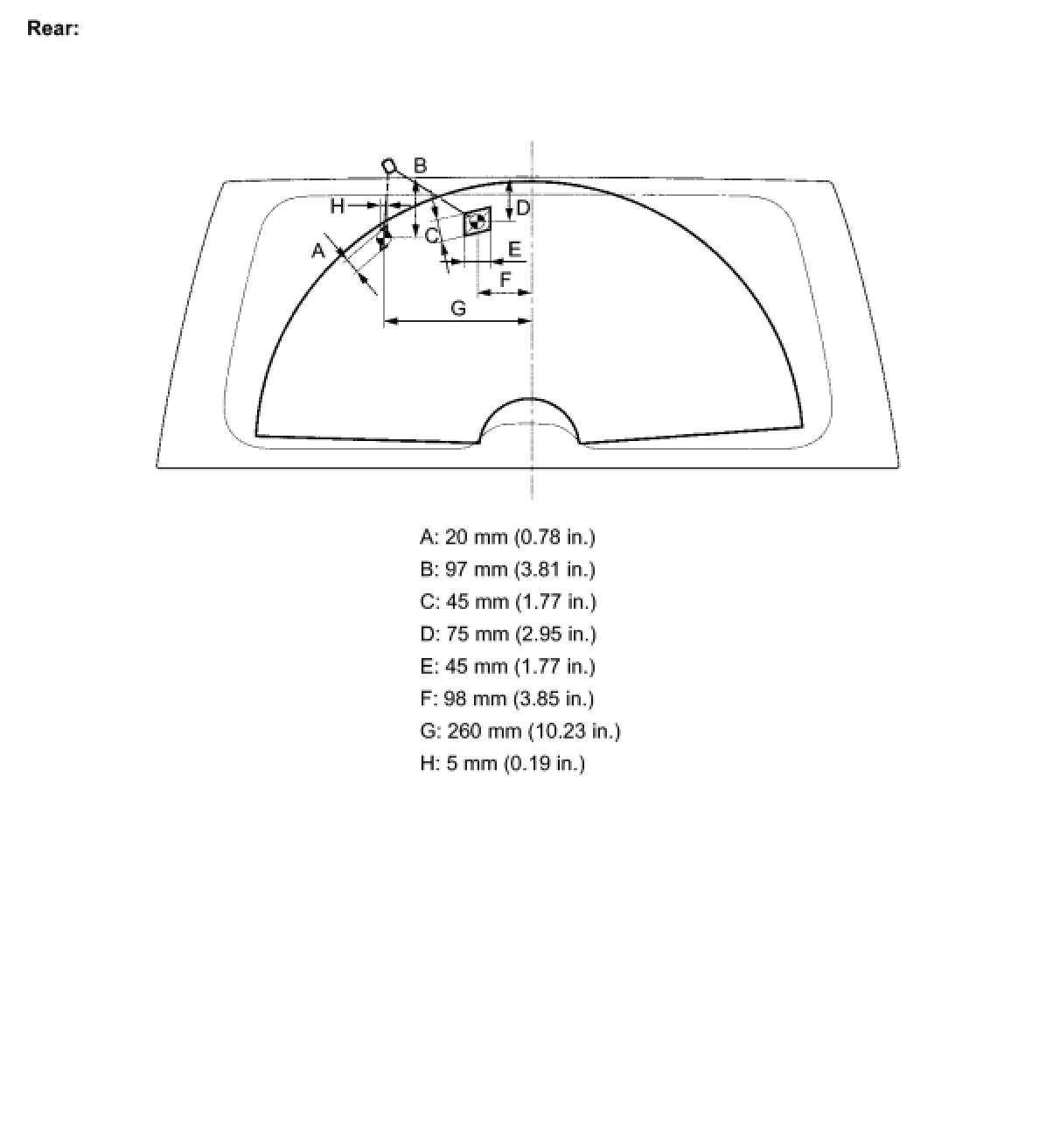

2. INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY
(a) With the engine running, check the point where the washer fluid hits the rear window is within the range indicated by the hatched line.
