Alarm Horn: Testing and Inspection

THEFT DETERRENT / KEYLESS ENTRY: SECURITY HORN ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT SECURITY HORN ASSEMBLY

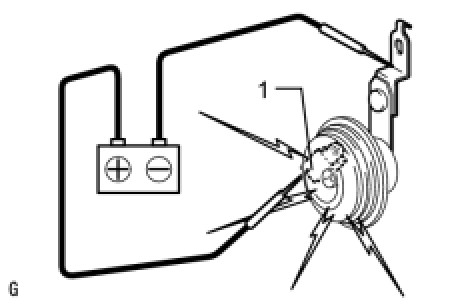

(a) Apply battery voltage to the horn connector and check the operation of the horn.
OK:





If the result is not as specified, replace the horn assembly.
