Pinout Values and Diagnostic Parameters

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

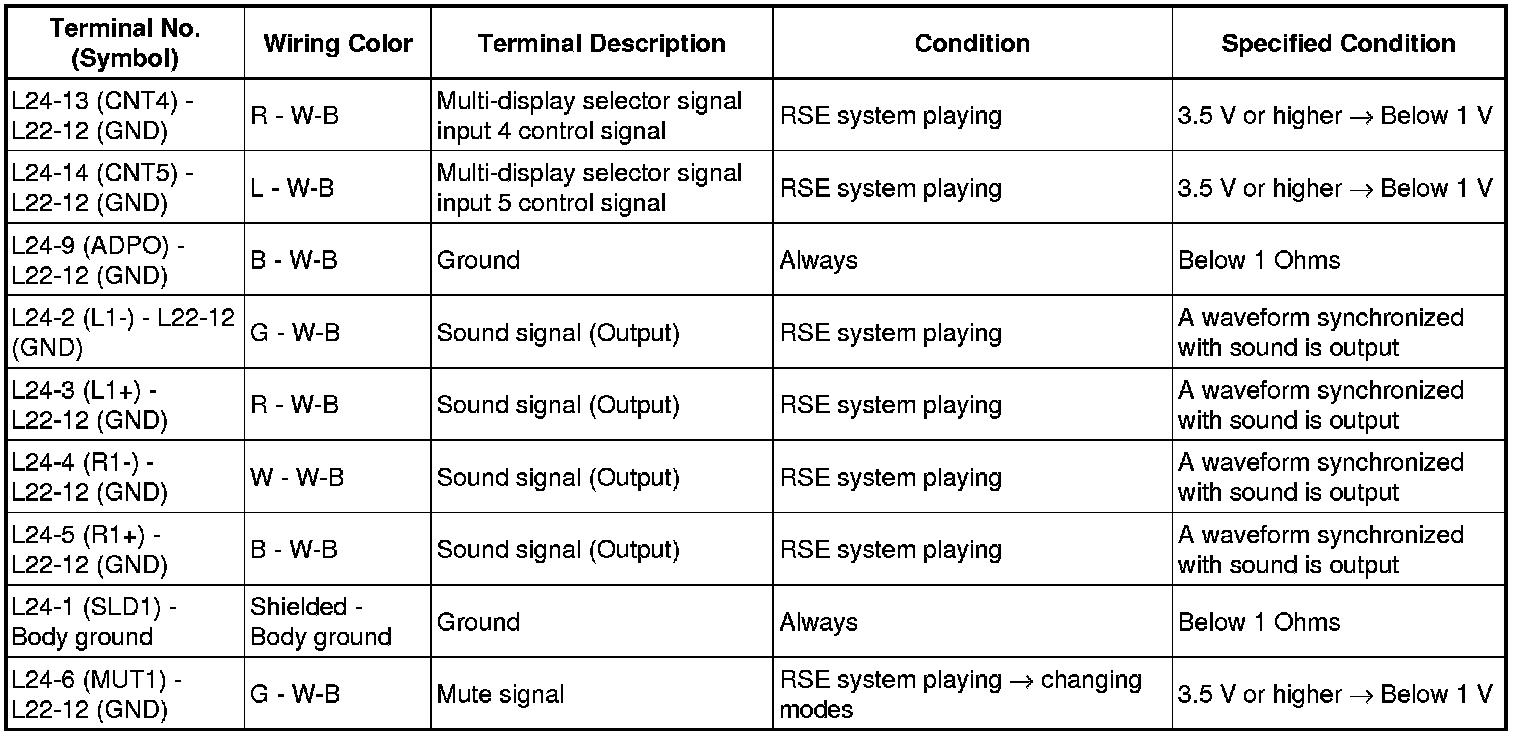

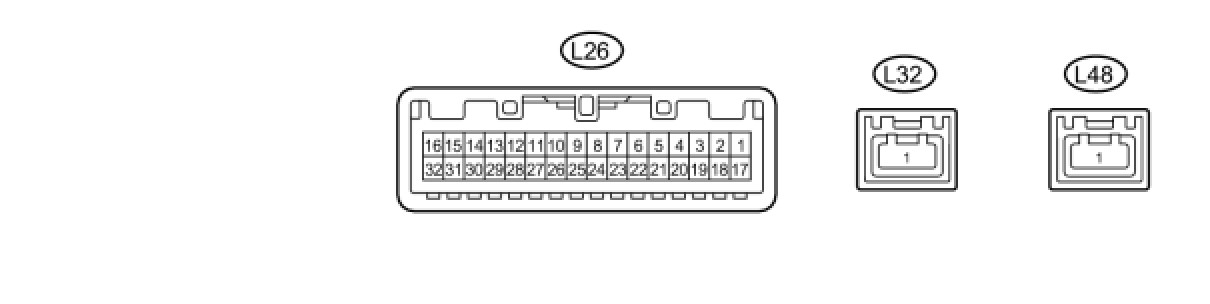

1. CHECK MULTI-DISPLAY SELECTOR (RSE ECU)





















(a) Using an oscilloscope, check the waveform.






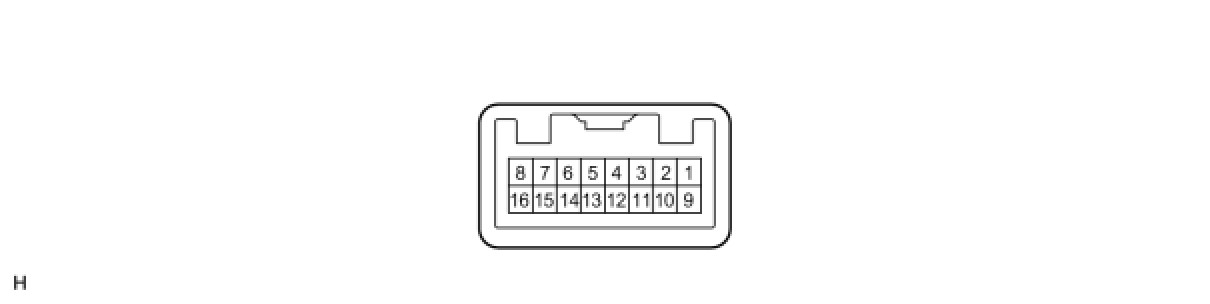

2. CHECK TELEVISION DISPLAY ASSEMBLY













(a) Using an oscilloscope, check the waveform.

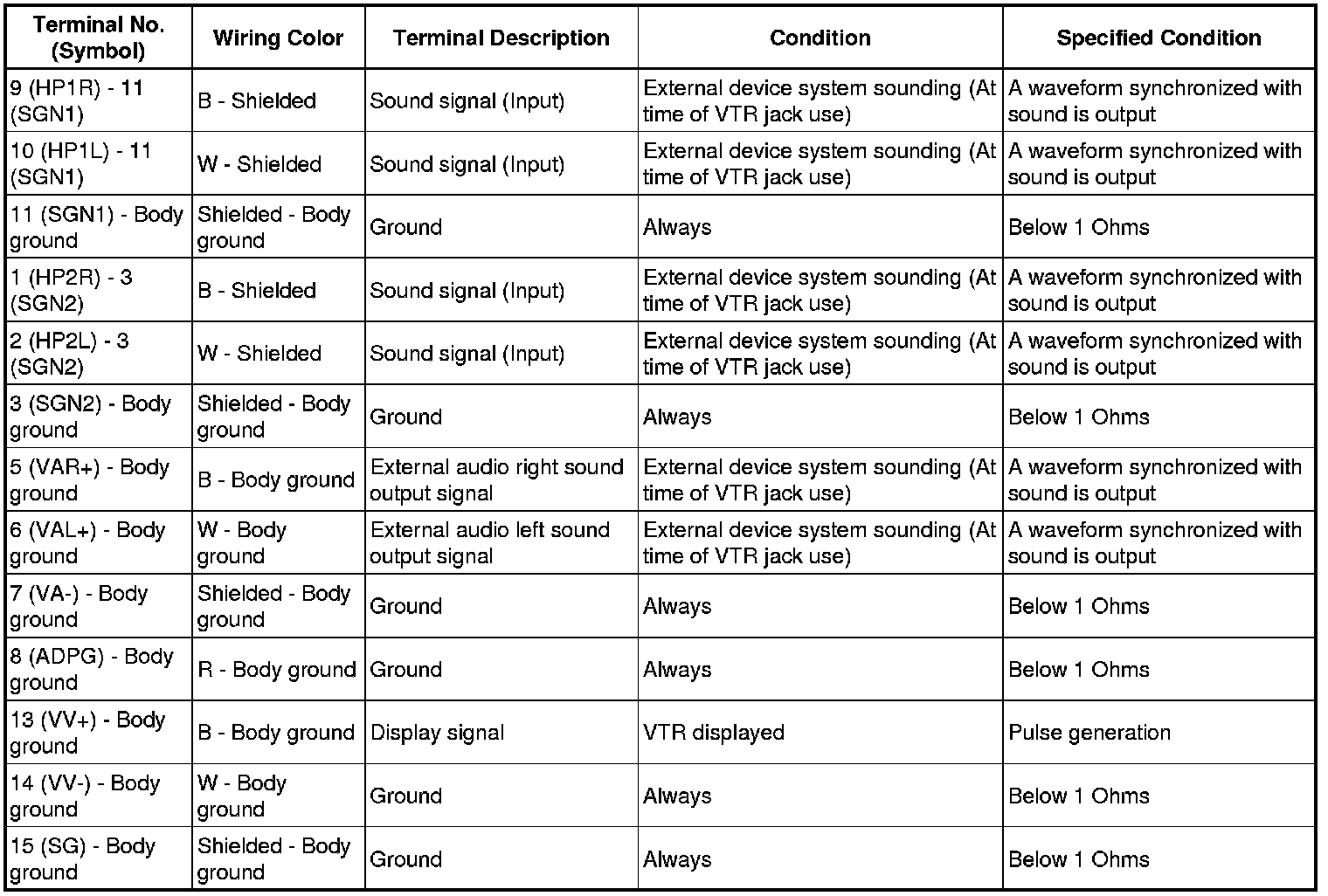

3. CHECK HEADPHONE TERMINAL









4. CHECK RADIO RECEIVER Pinout Values and Diagnostic Parameters
5. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY OR MULTI-DISPLAY Pinout Values and Diagnostic Parameters
