Navigation Voice Speaker Circuit

DESCRIPTION

This circuit is used when the voice guidance in the navigation system is on.

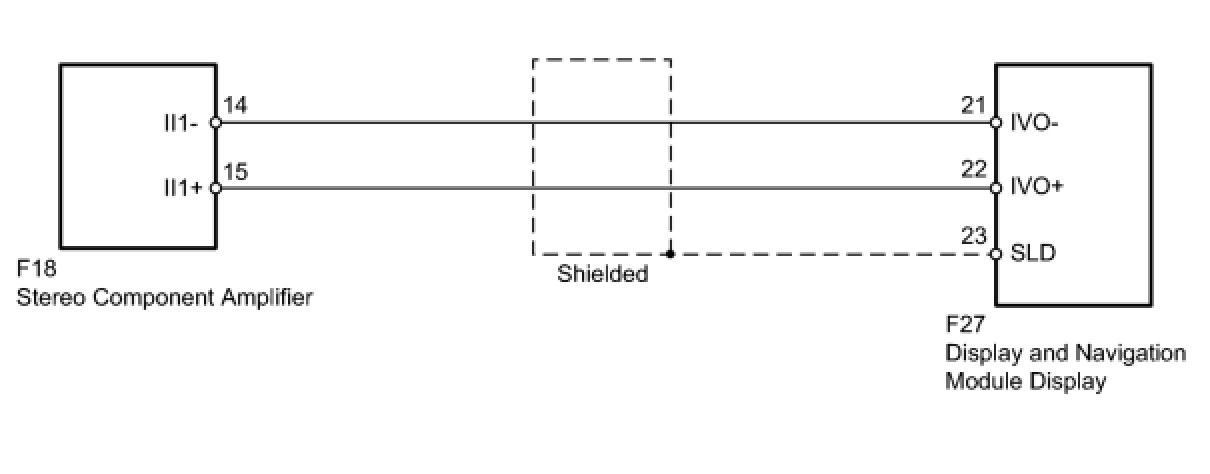

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

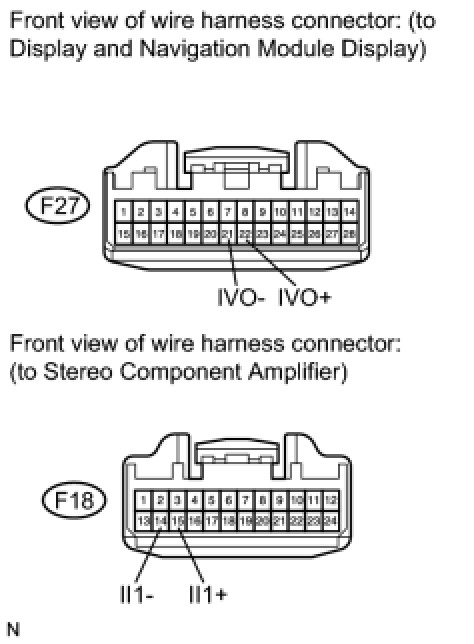

1. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - STEREO COMPONENT AMPLIFIER)




(a) Disconnect the F27 display connector.
(b) Disconnect the F18 amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
