Installation

AUDIO / VIDEO: HARD DISK DRIVE: INSTALLATION

INSTALLATION

1. INSTALL DISC PLAYER DISC

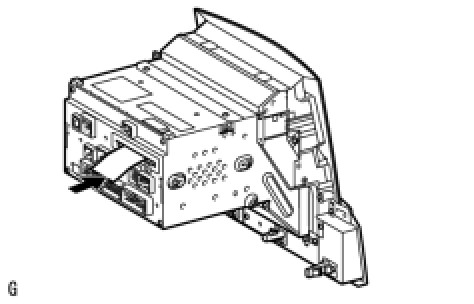

(a) Push the disc player disc in the direction of the arrow shown in the illustration to install it.

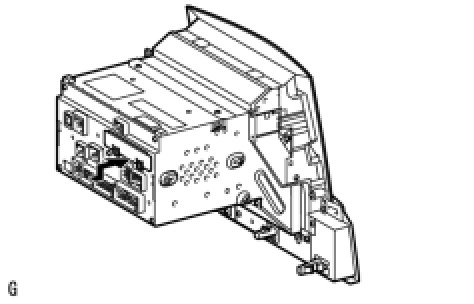

(b) Install the cover in the direction of the arrow shown in the illustration.





(c) Install the 2 screws.
2. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY
(a) Install the display and navigation module display Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSTALL ENGINE ROOM SIDE COVER LH Installation
