Removal

AUDIO / VIDEO: HARD DISK DRIVE: REMOVAL

REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY
(a) Remove the display and navigation module display Removal.
4. REMOVE DISC PLAYER DISC





(a) Remove the 2 screws.

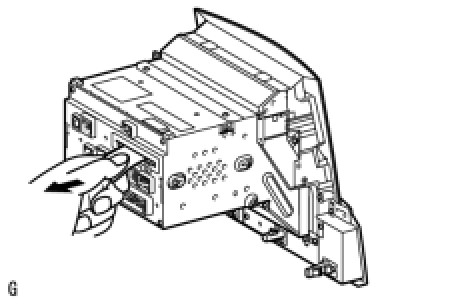

(b) Move the cover in the direction of the arrow shown in the illustration to remove it.

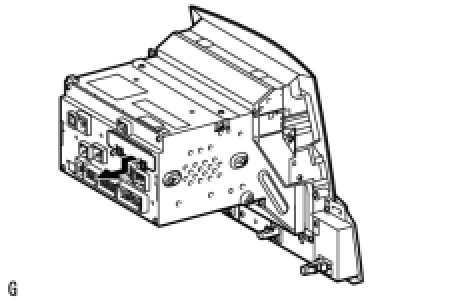

(c) Remove the disc player disc in the direction of the arrow shown in the illustration.
