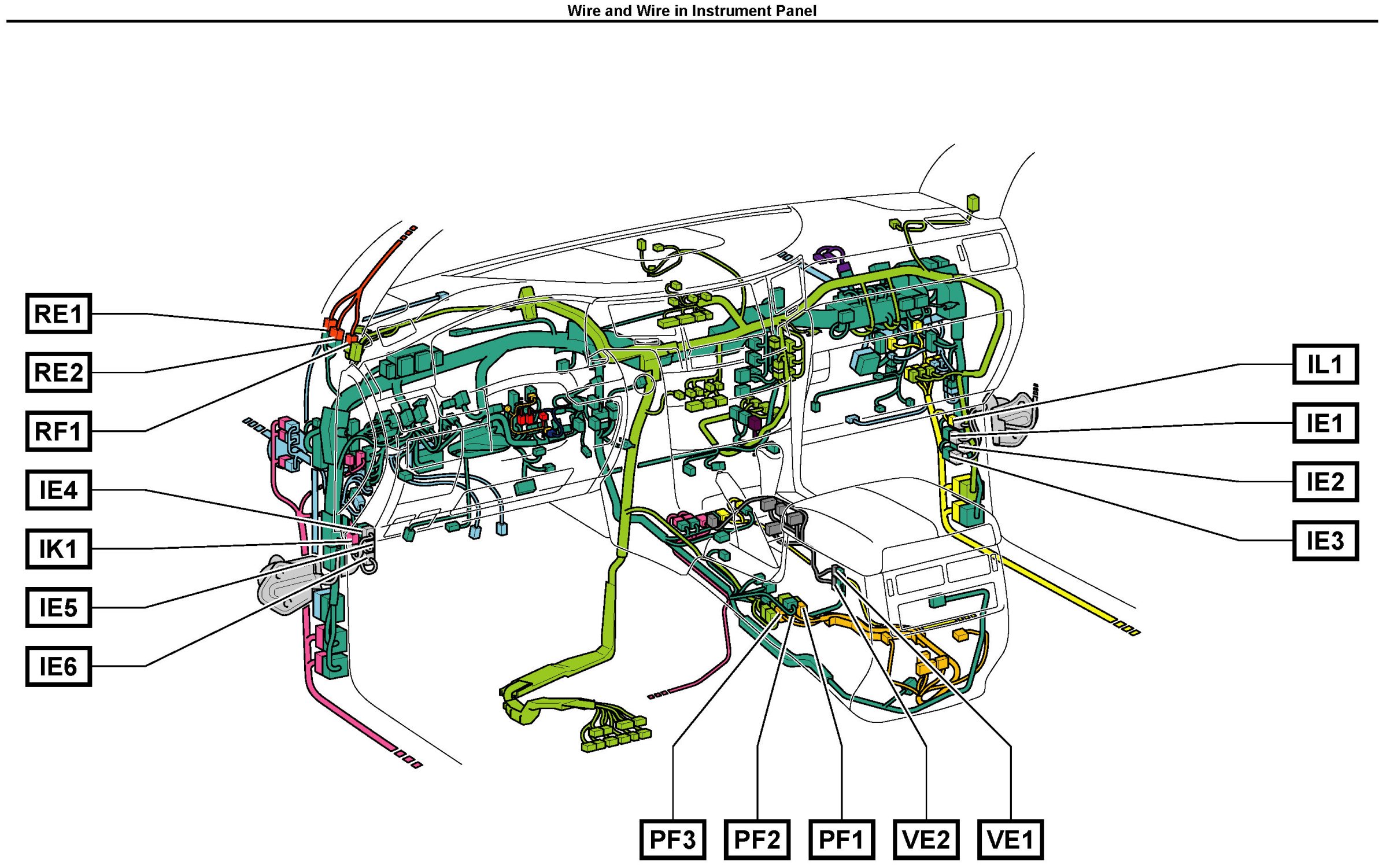

Wire and Wire in Instrument Panel

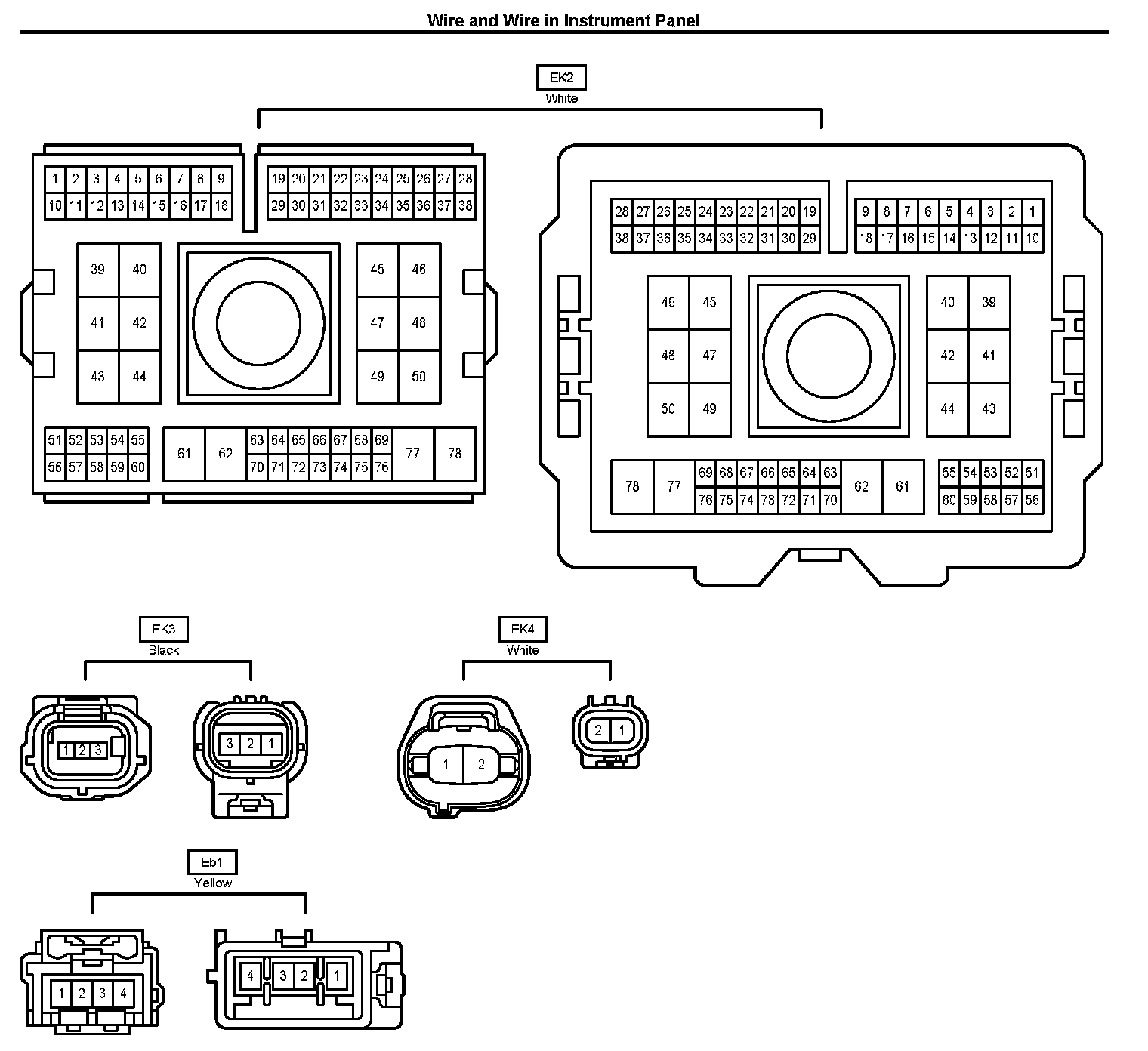

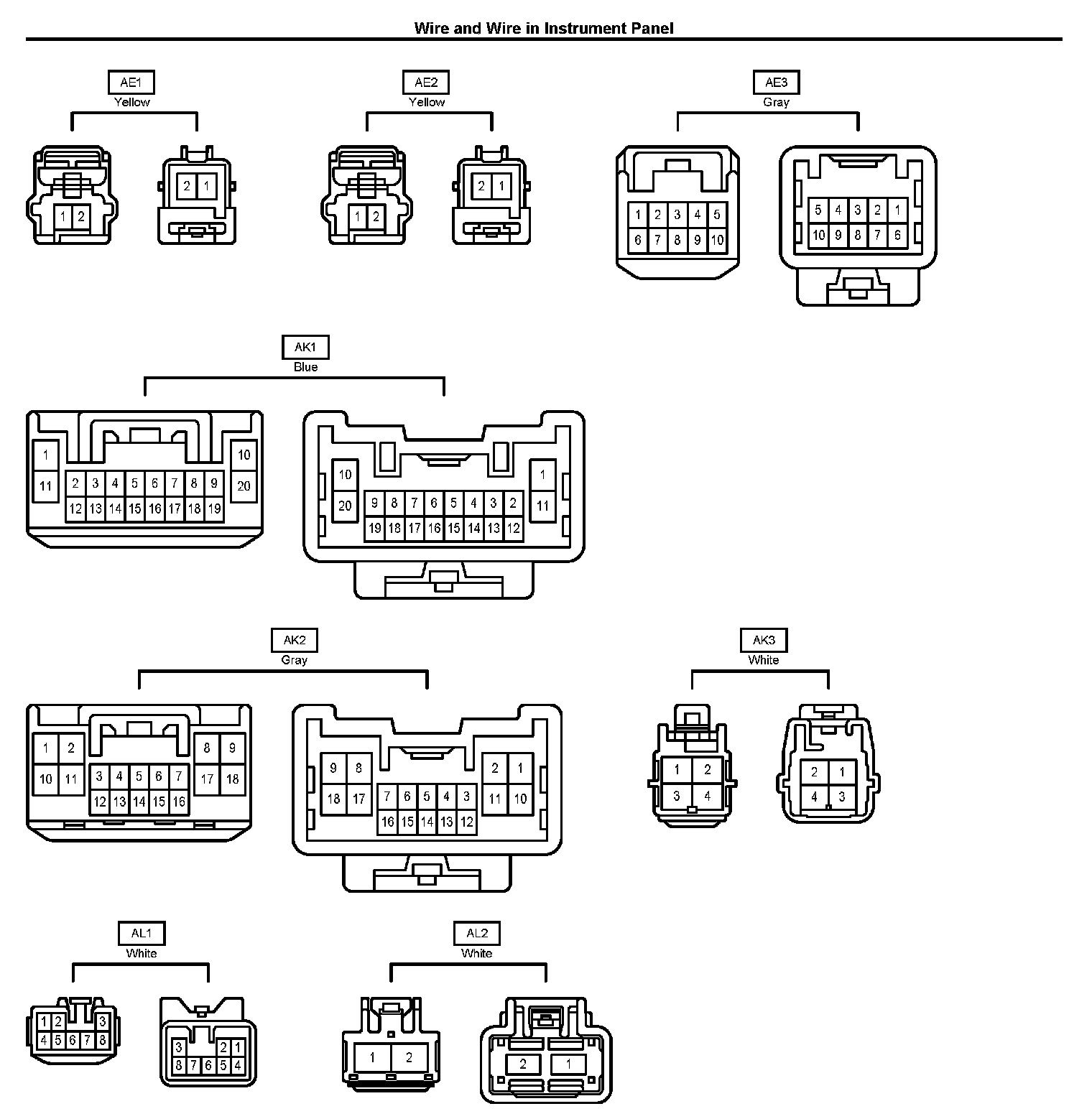

AE1-EK4:



AE1-AL2:



EA1-EA2:



EA3-EK1:



Eb1-EK4:



EL1-FL4:

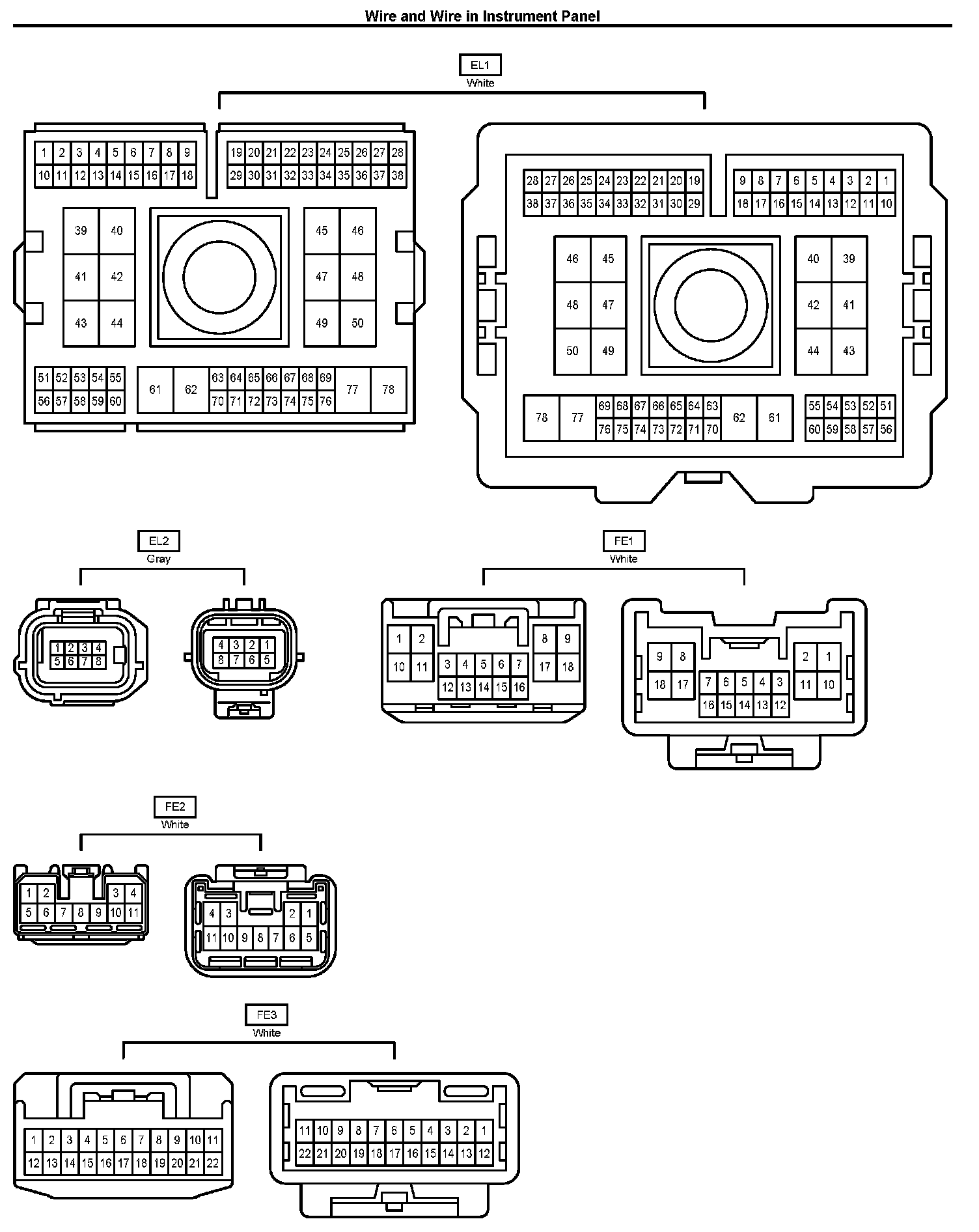

EL1-FE3:

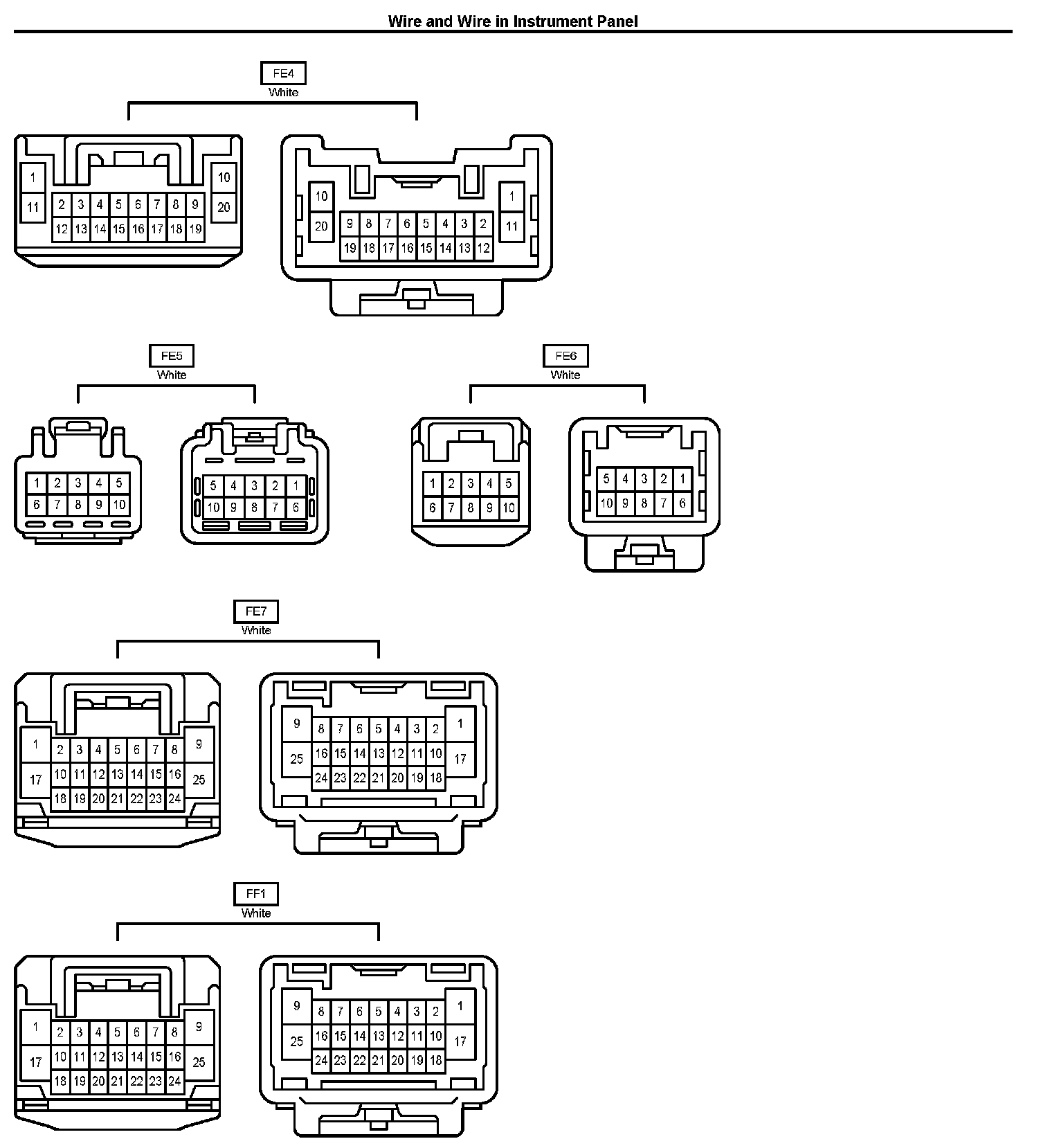

FE4-FF1:



FL1-FL4:



IE1-VE2:



IE1-IE5:



IE6-RE2:

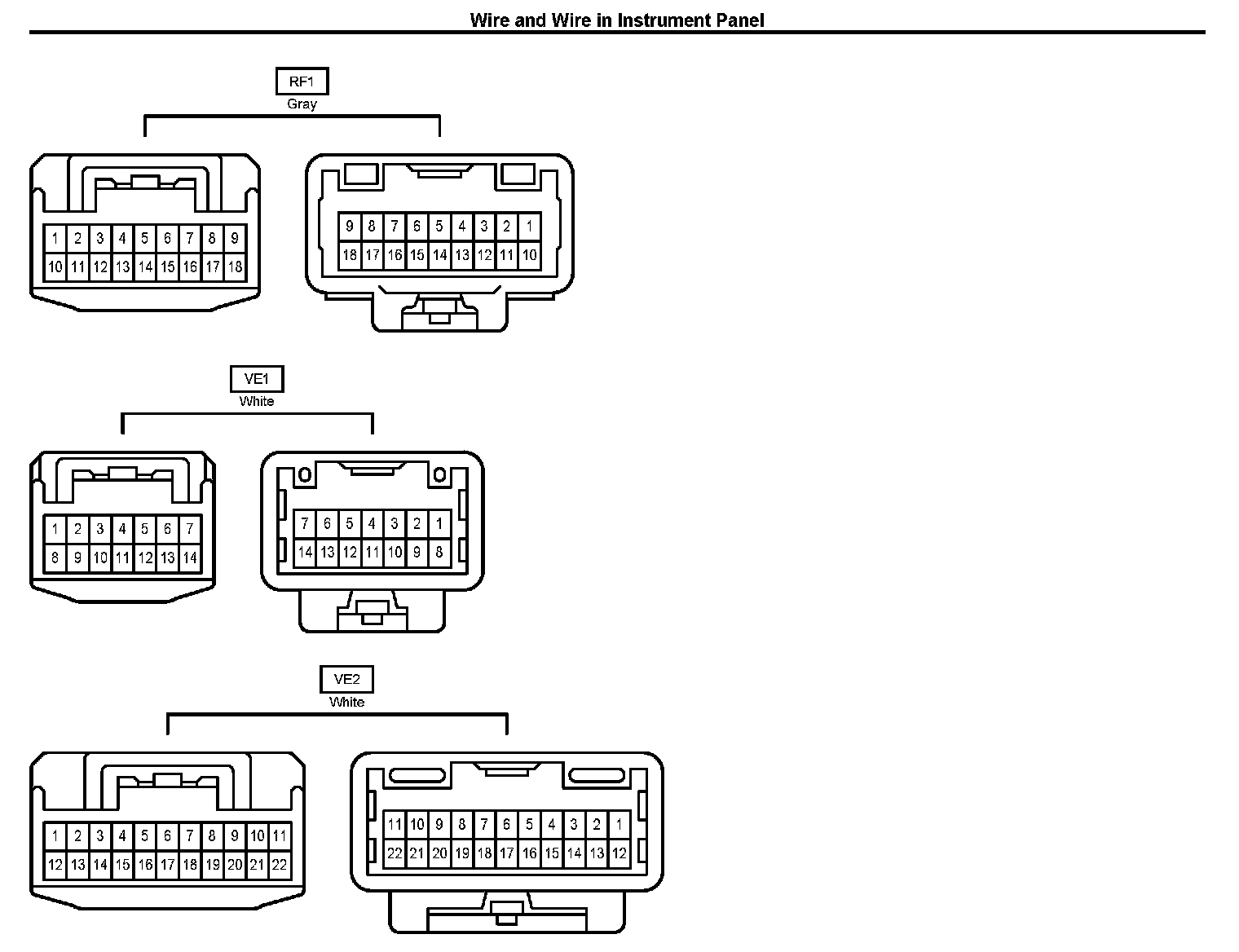

RF1-VE2:
