LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Body and Frame
>>
System Diagram
System Diagram
COMPONENTS
a.
FRONT
BUMPER
b.
REAR
BUMPER
c.

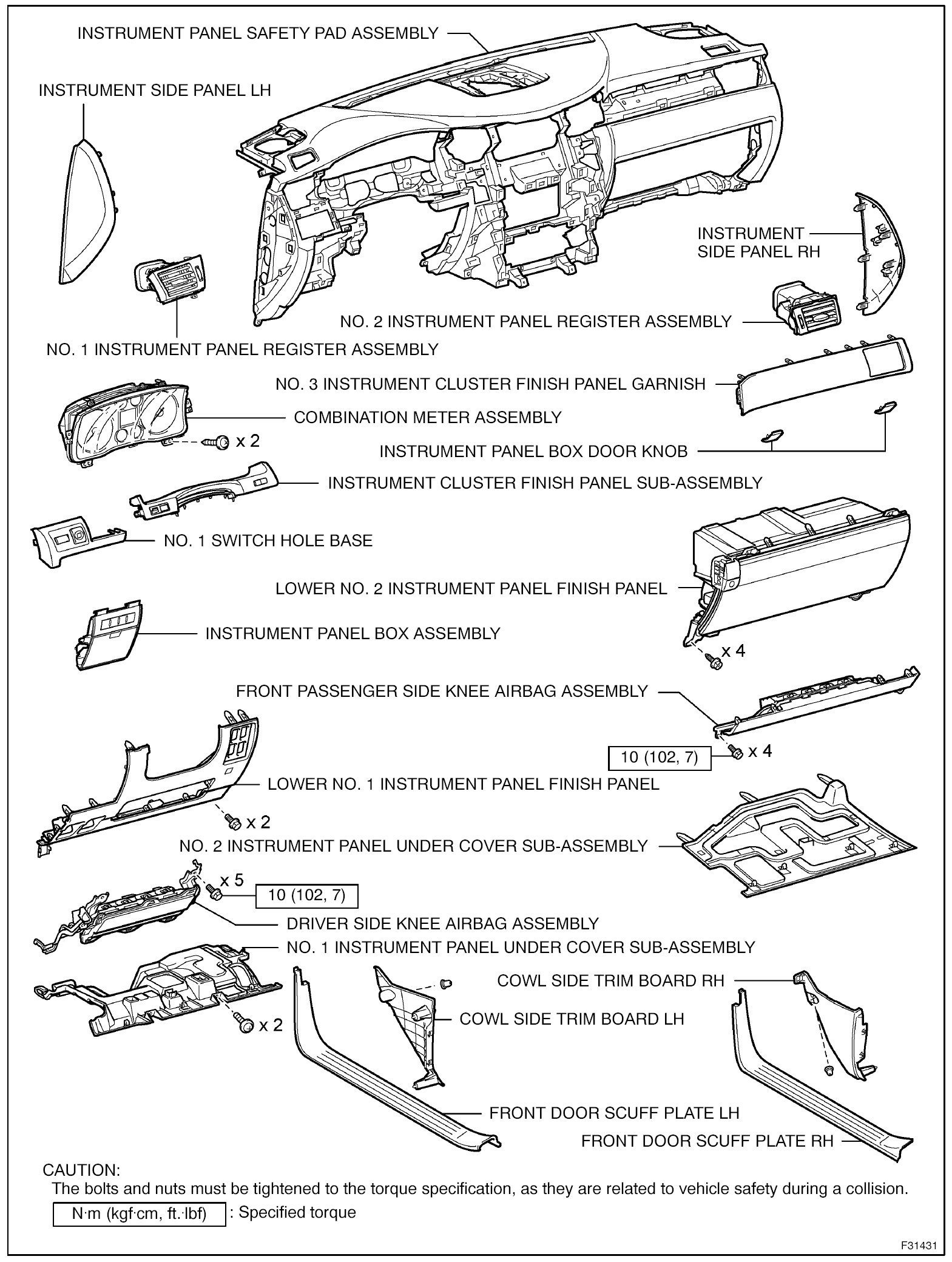

INSTRUMENT PANEL
d.

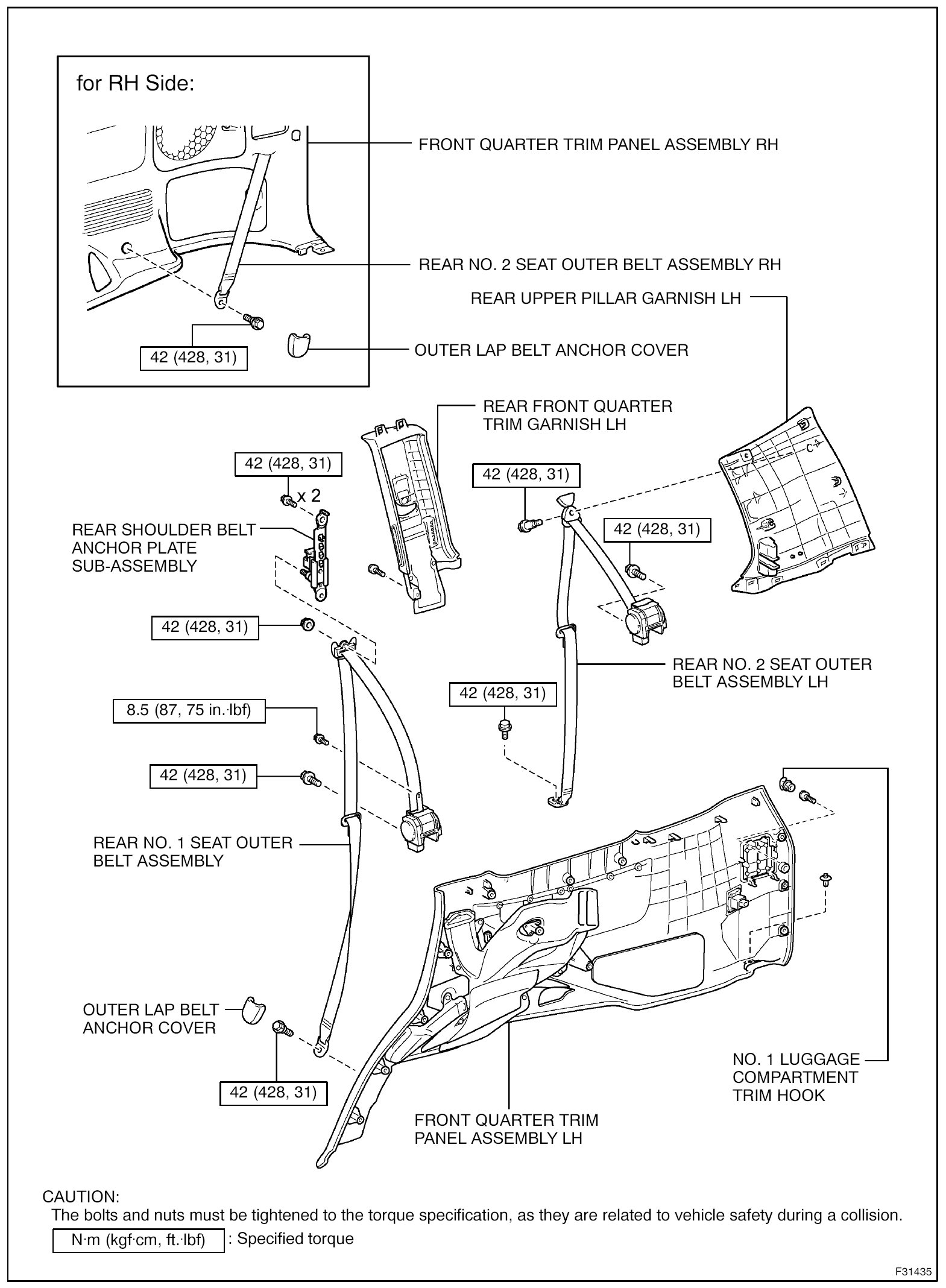

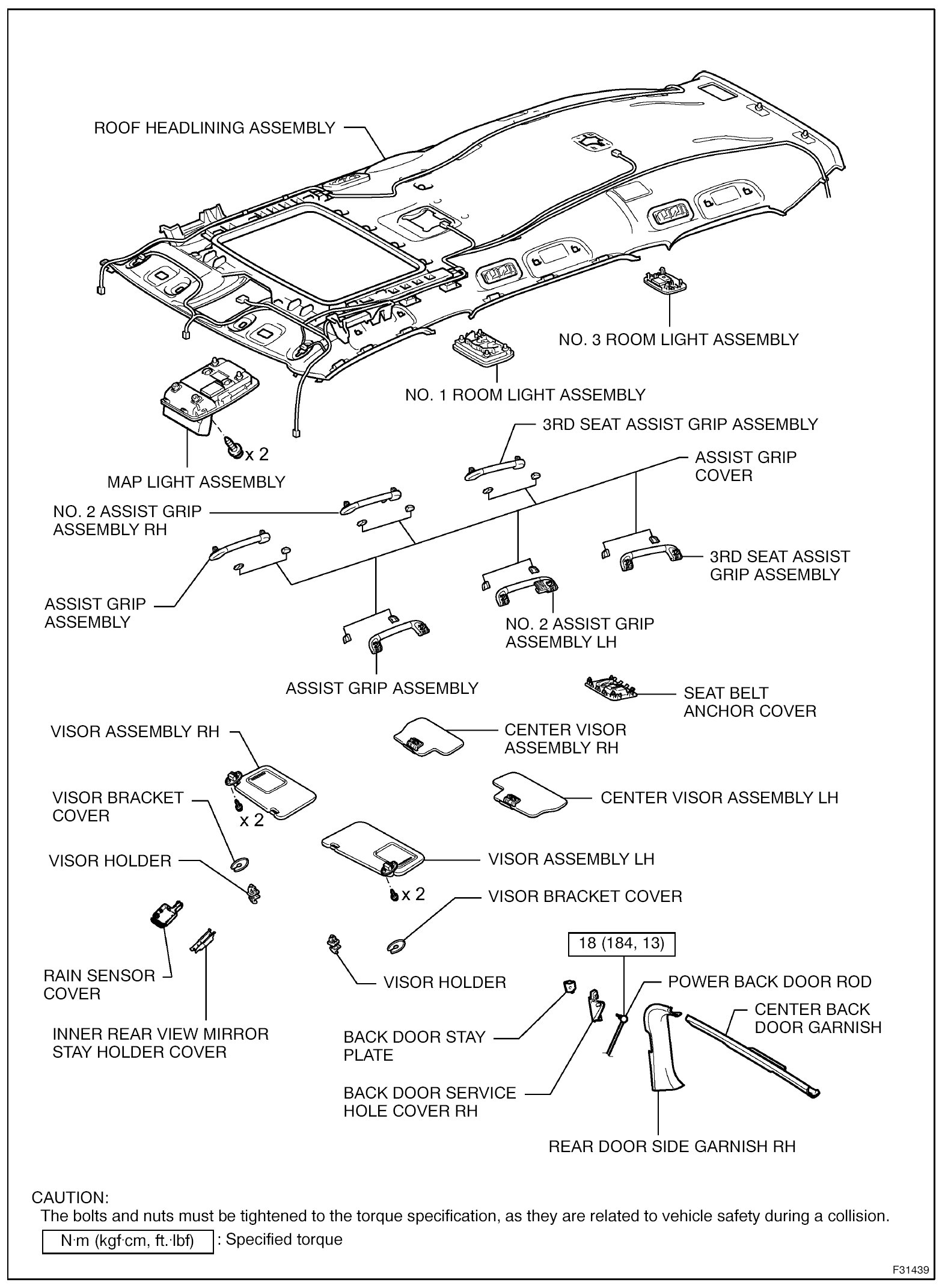

INTERIOR TRIM
e.
FRONT SEAT

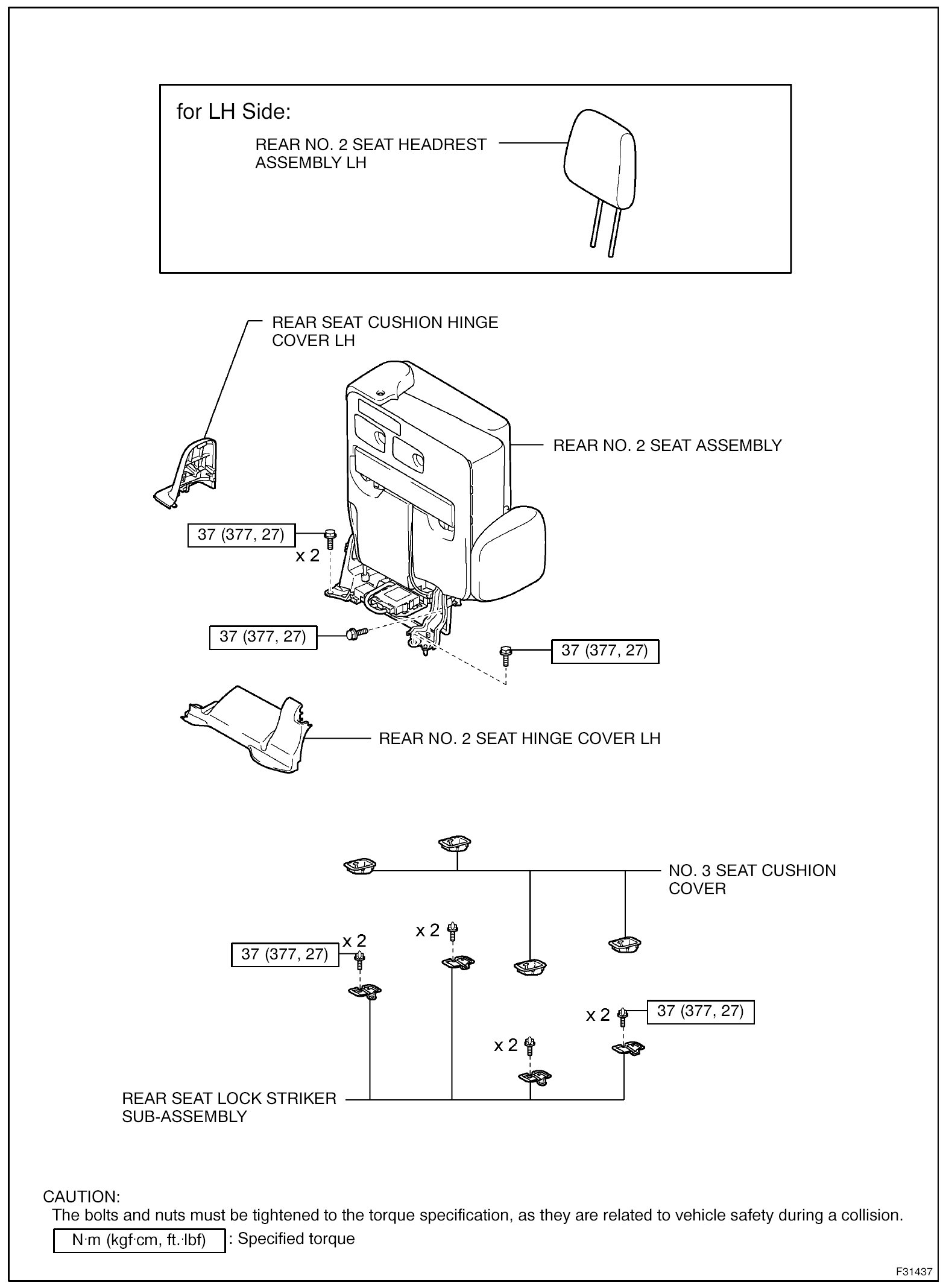

f.
REAR SEAT
