Cylinder Head Assembly: Specifications

Cylinder head set bolt outside thread diameter
Standard 10.85 to 11.00 mm (0.427 to 0.433 in.)
Minimum 10.6 mm (0.417 in.)
If the diameter is less than the minimum, replace the cylinder head bolt.

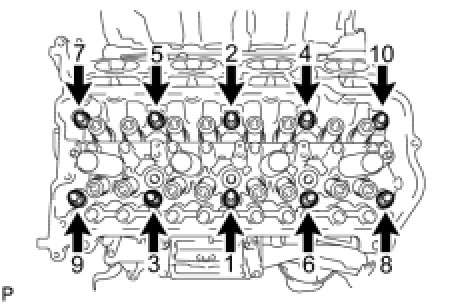

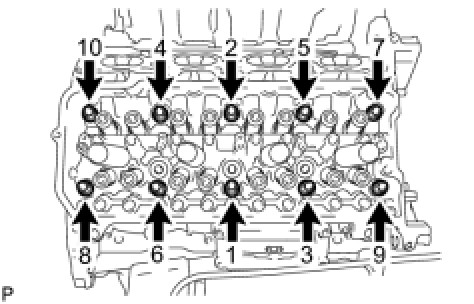

Cylinder Head Bolt Tightening Procedure









First pass 36 Nm (367 kgf-cm, 27 ft-lbf)

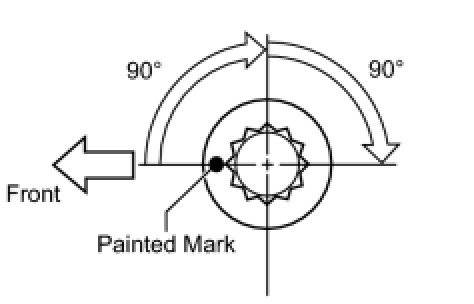

Second pass Tighten bolts 90° in sequence
Third pass Tighten bolts another 90° in sequence





Final pass: Tighten end bolts in sequence 21 Nm (214 kgf-cm, 15 ft-lbf)

Cylinder Head Warpage
Standard
Cylinder head lower side 0.05 mm (0.00197 in.)
Intake side 0.08 mm (0.00315 in.)
Exhaust side 0.05 mm (0.00197 in.)
Maximum 0.10 mm (0.00394 in.)

Intake Manifold Bolts and Nuts 21 Nm (214 kgf-cm, 15 ft-lbf) in several steps

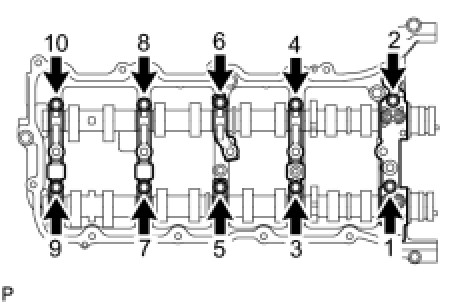

Camshaft Bearing Cap x Camshaft Housing 16 Nm (163 kgf-cm, 12 ft.lbf)









Camshaft Timing Gear Bolts 100 Nm (1020 kgf-cm, 74 ft-lbf)

Exhaust Manifold Nuts









First pass: Temporarily install manifold with 2 nuts labeled A and 8 new nuts
Second pass: Uniformly tighten nuts not labeled A 21 Nm (214 kgf-cm, 15 ft-lbf)
Final pass: Uniformly tighten nuts labeled A 10 Nm (102 kgf-cm, 7 ft-lbf)
