HEATING / AIR CONDITIONING: COMPRESSOR: INSTALLATION

INSTALLATION

1. ADJUST COMPRESSOR OIL
(a) When replacing the compressor and magnetic clutch with a new one, gradually discharge the refrigerant gas from the service valve, and drain the following amount of oil from the new compressor and magnetic clutch before installation.
Standard:
(Oil capacity inside the new compressor and magnetic clutch: 135 + 15 cc (4.6 + 0.51 fl.oz.)) - (Remaining oil amount in the removed compressor and magnetic clutch) = (Oil amount to be removed from the new compressor when replacing)
NOTICE:
- When checking the compressor oil level, follow the A/C system precautions.
- If a new compressor and magnetic clutch is installed without removing some oil remaining in the pipes of the vehicle, the oil amount will be too large. This prevents heat exchange in the refrigerant cycle and causes refrigerant failure.
- If the volume of oil remaining in the removed compressor and magnetic clutch is too small, check for oil leakage.
- Be sure to use ND-OIL 8 or equivalent compressor oil.





2. INSTALL COOLER COMPRESSOR ASSEMBLY
(a) Install the cooler compressor and stud bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Install the 3 bolts and nut.
Torque: 24.5 Nm (250 kgf-cm, 18 ft-lbf)

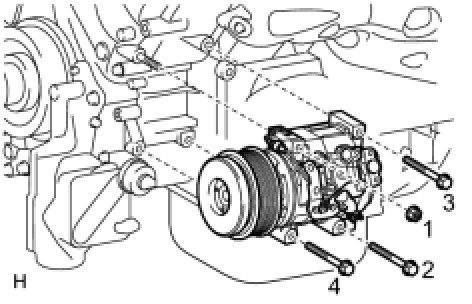

HINT: Tighten the bolts and nut in the order shown in the illustration.

(c) Connect the connector.
3. CONNECT SUCTION HOSE SUB-ASSEMBLY





(a) Remove the attached vinyl tape from the suction hose.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring to the suction hose.
(d) Connect the suction hose to the cooler compressor with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)





4. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(a) Remove the attached vinyl tape from the cooler refrigerant discharge hose.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring to the discharge hose.
(d) Connect the discharge hose to the cooler compressor with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
5. INSTALL FAN AND GENERATOR V BELT Installation





6. INSTALL FRONT FENDER APRON SEAL LH

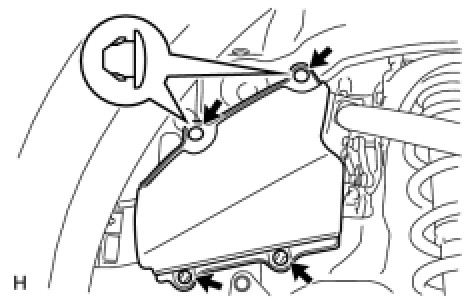

(a) Install the seal with the 4 clips.
7. CHARGE REFRIGERANT Service and Repair
8. WARM UP ENGINE Service and Repair
9. CHECK FOR REFRIGERANT GAS LEAK Service and Repair
10. INSTALL UPPER RADIATOR SUPPORT SEAL Installation
11. INSTALL ENGINE ROOM SIDE COVER LH Installation
12. INSTALL ENGINE ROOM SIDE COVER RH Installation
