METER / GAUGE / DISPLAY: COMBINATION METER: INSTALLATION

INSTALLATION

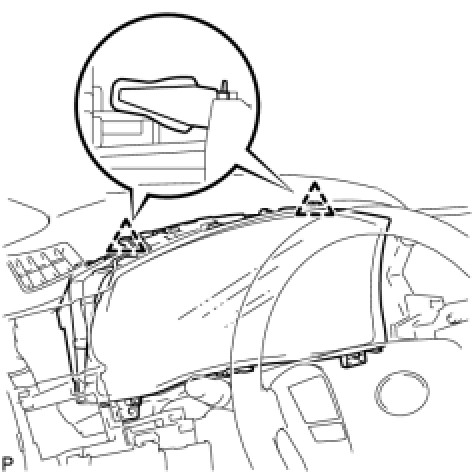

1. INSTALL COMBINATION METER ASSEMBLY





(a) Connect the connector.





(b) Attach the 2 clips.





(c) Install the combination meter with the 2 screws.
2. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Attach the 5 claws to install the register.
3. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Attach the 4 claws to install the register.
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY





(a) Connect the connectors.
(b) Attach the 4 claws to install the finish panel.





(c) Attach the 6 claws.
5. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH





(a) Connect the connector.
(b) Attach the 8 claws to install the instrument panel pad.
6. INSTALL NO. 1 SWITCH HOLE BASE





(a) Connect the connectors.
(b) Attach the 5 claws to install the hole base.
7. INSTALL INSTRUMENT SIDE PANEL LH





(a) Attach the 6 claws to install the side panel.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
- Reset the Autoaway/Return function setting to the previous condition by changing the customize parameter Repair Instruction - Customize Parameters.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation
