LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH





(a) Check the stop light.

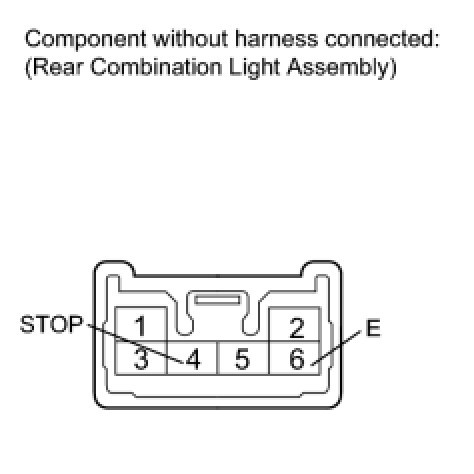

(1) Apply battery voltage to the connector, and check the LED illumination condition.
OK:






If the result is not as specified, replace the rear combination light.





(b) Check the taillight.

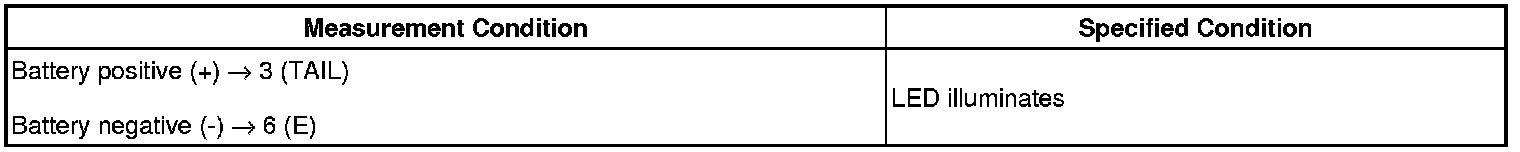

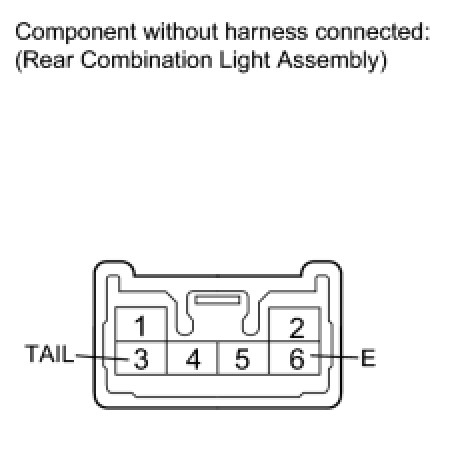

(1) Apply battery voltage to the connector, and check the LED illumination condition.
OK:






If the result is not as specified, replace the rear combination light assembly.
