Fuse: Locations

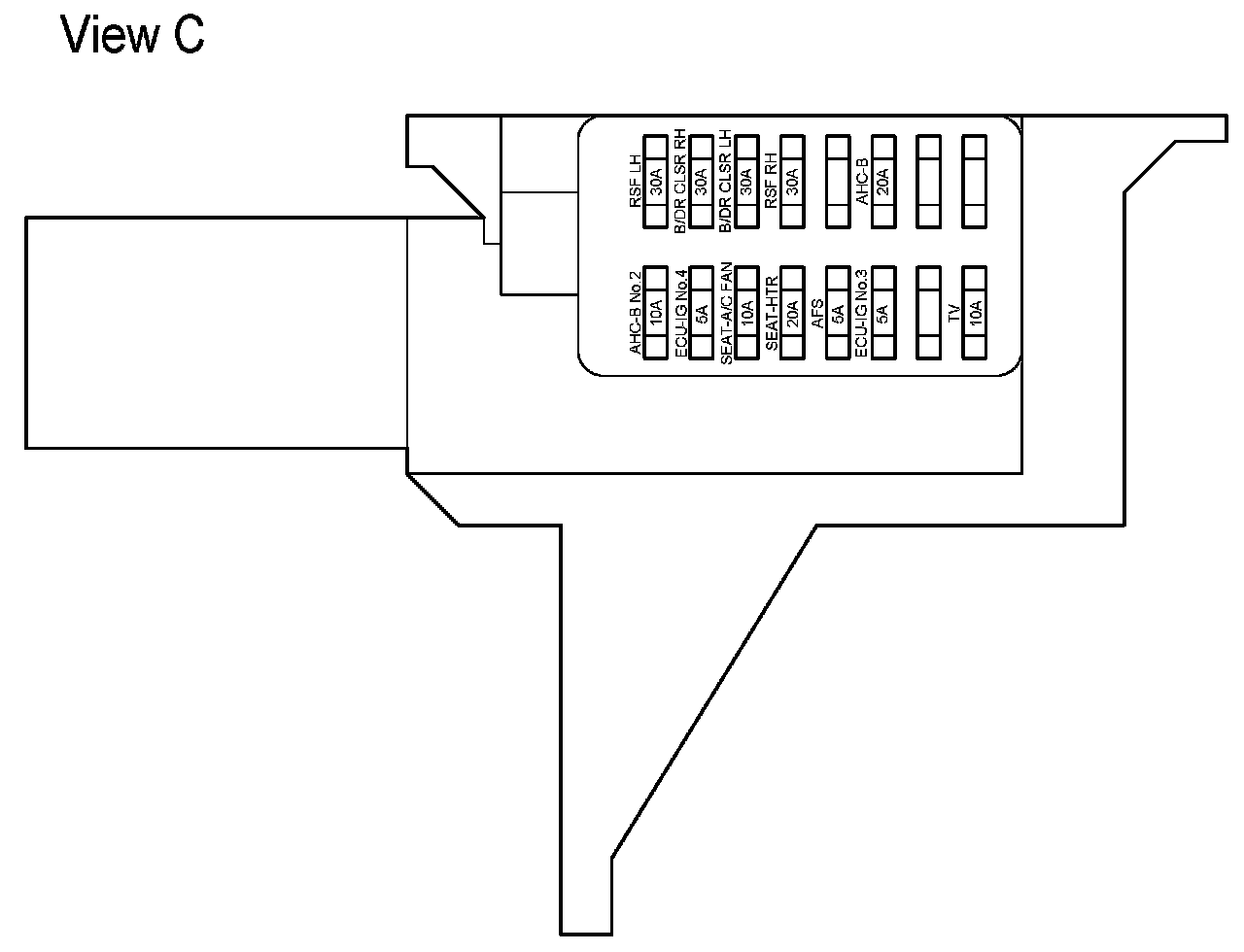

Cowl Side J/B LH Assembly - Cowl Side Left:

Cowl Side J/B RH Assembly - Cowl Side Right:

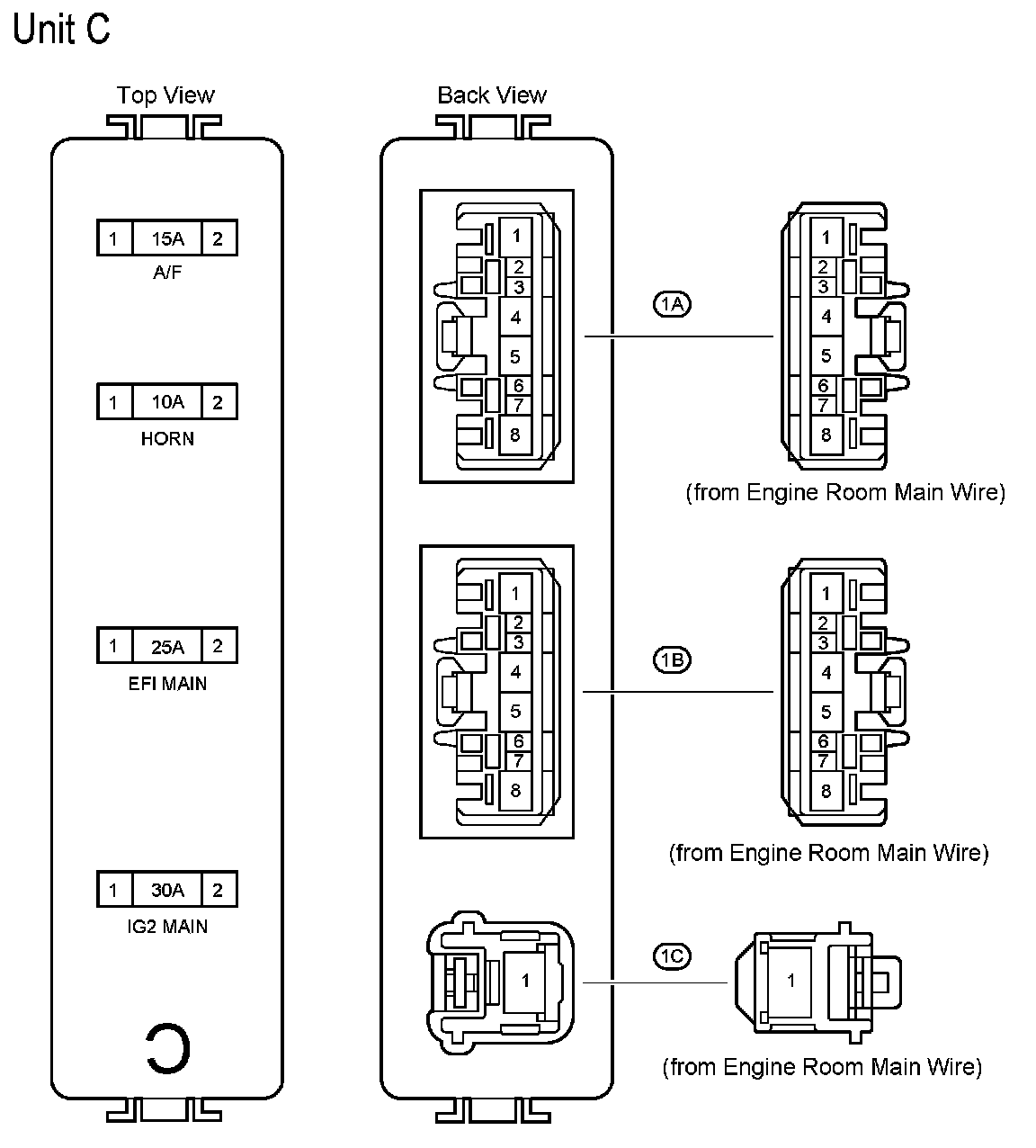

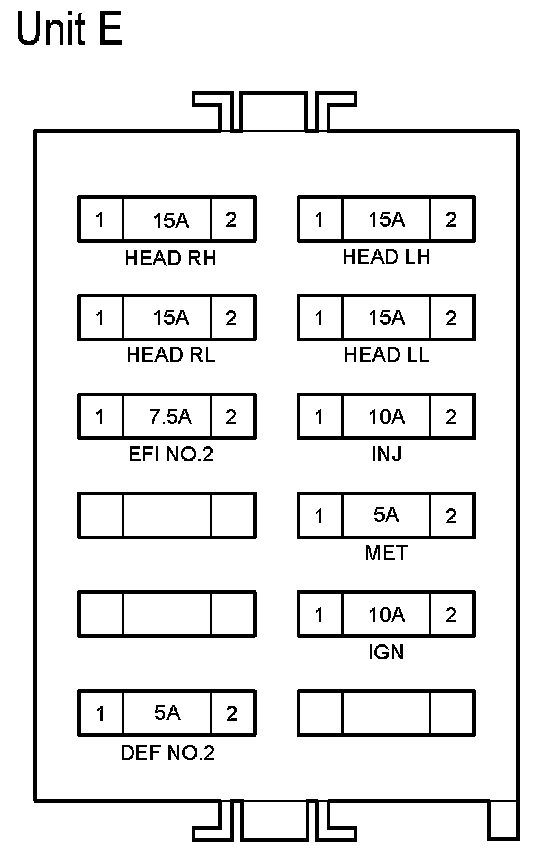

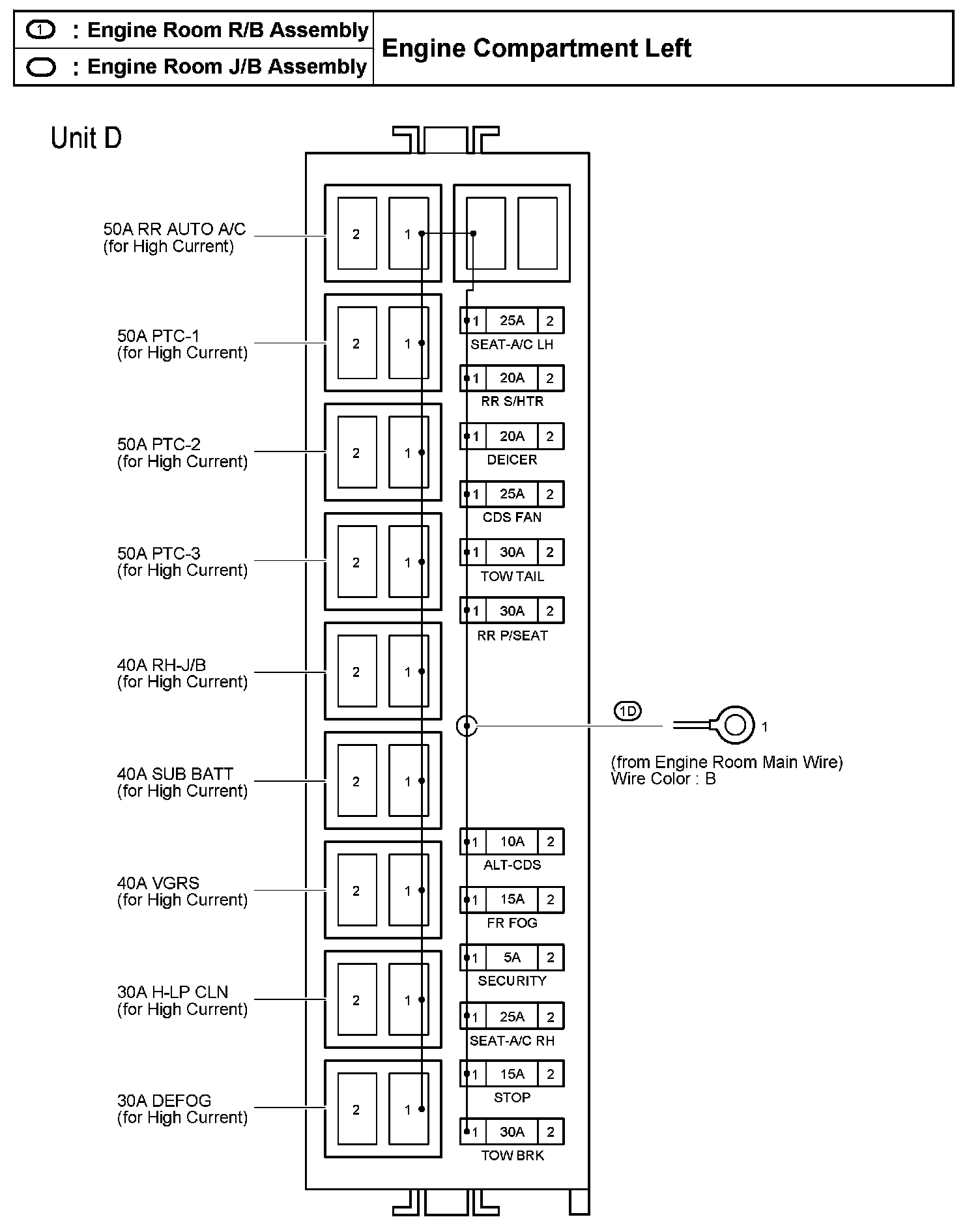

Engine Room R/B, J/B Assembly - Engine Compartment Left:

Engine Room R/B, J/B Assembly - Engine Compartment Left:

Engine Room R/B, J/B Assembly - Engine Compartment Left:

Engine Room R/B, J/B Assembly - Engine Compartment Left:

Engine Room R/B, J/B Assembly - Engine Compartment Left:
