Lexus Truck
>>
2009
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Variable Induction System
>>
Locations
Variable Induction System: Locations

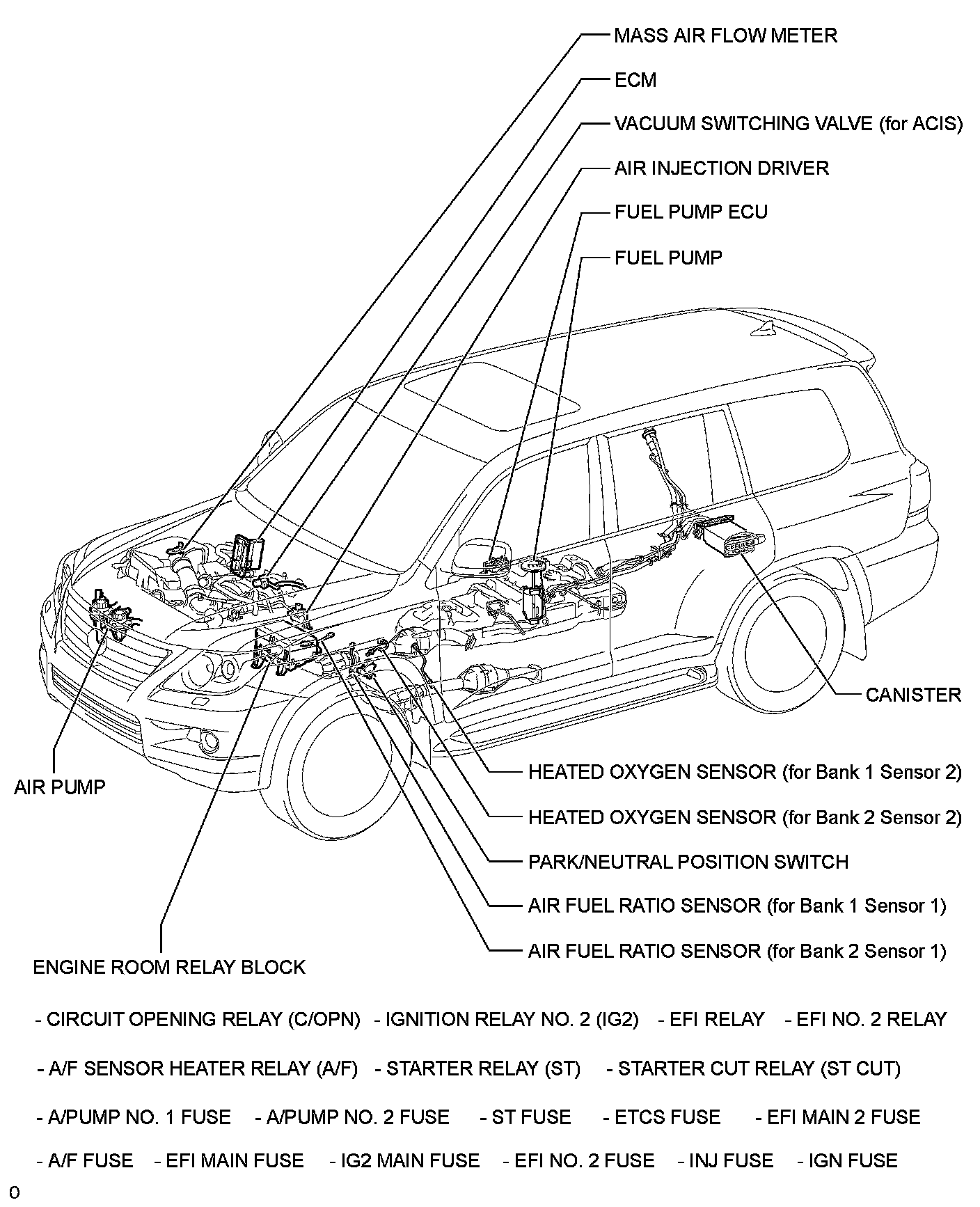

3UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
