Service Data
SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA
SERVICE DATA

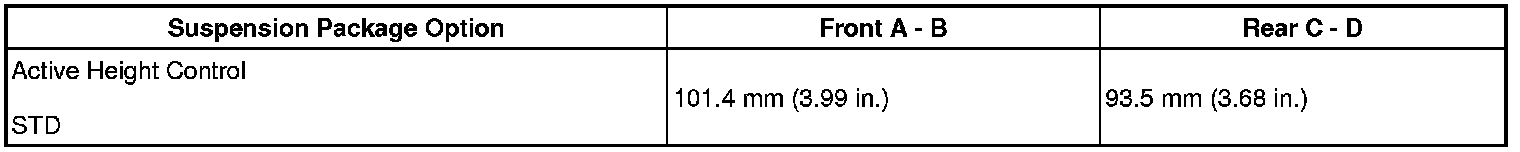

Standard Vehicle Height (Unloaded Vehicle)

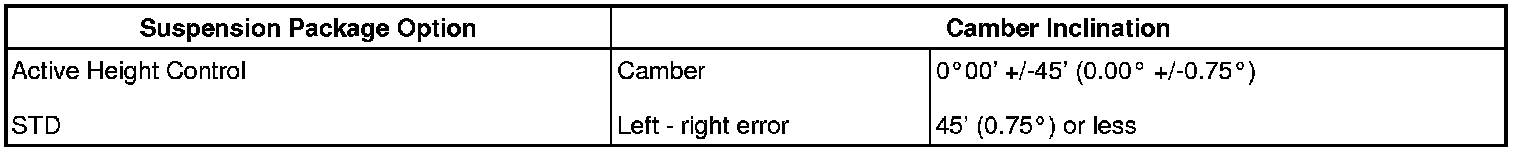

Standard Camber Inclination (Unloaded Vehicle)
Standard Caster Inclination (Unloaded Vehicle)
Standard Steering Axis Inclination (Unloaded Vehicle)
Standard Toe-in (Unloaded Vehicle)
Standard Wheel Turning Angle (Unloaded Vehicle)
